LH61RV-SRBQ (1984)
Toyota Hiace Van,Commuter
Production
Jan 1984
-
Aug 1987
Engine
2L
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708-9206)YH5#,61,73..RHD

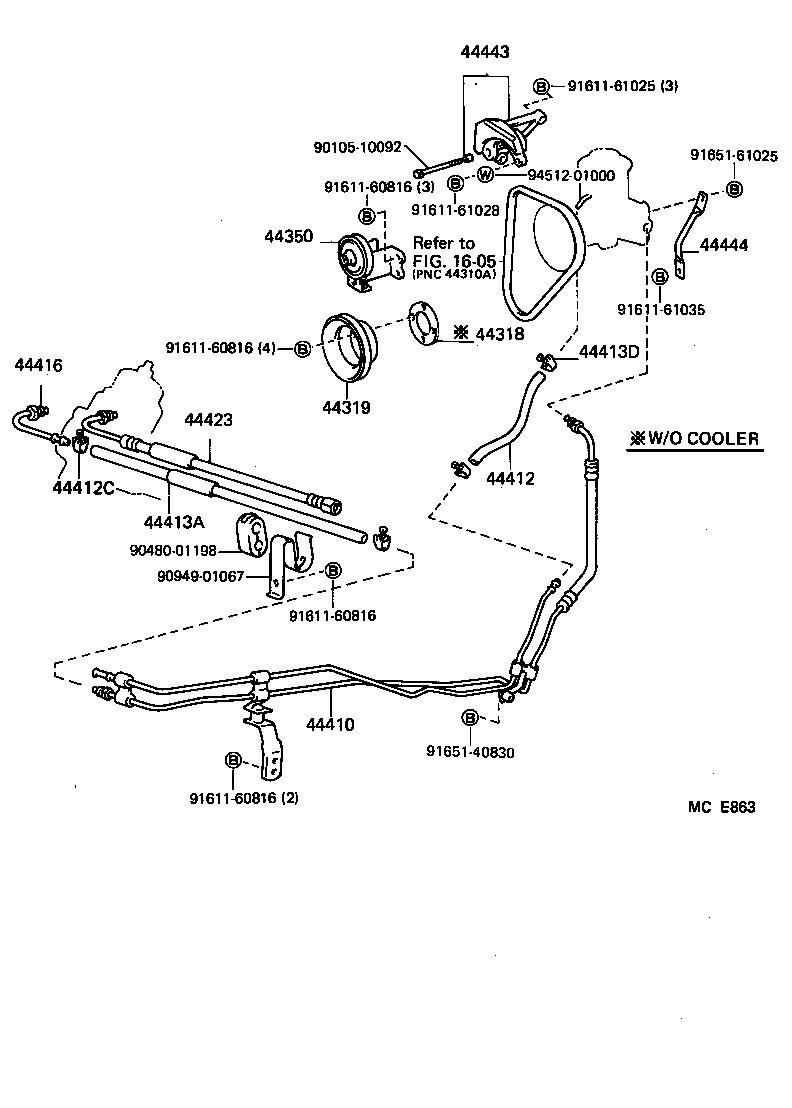

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10092 | ||||
| 90480-01198 | ||||
| 90949-01067 | ||||
| 91611-60816 | ||||
| 91611-61025 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91651-40830 | ||||
| 91651-61025 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 1605 | ||||
