LH61RV-QRE (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8908)2L

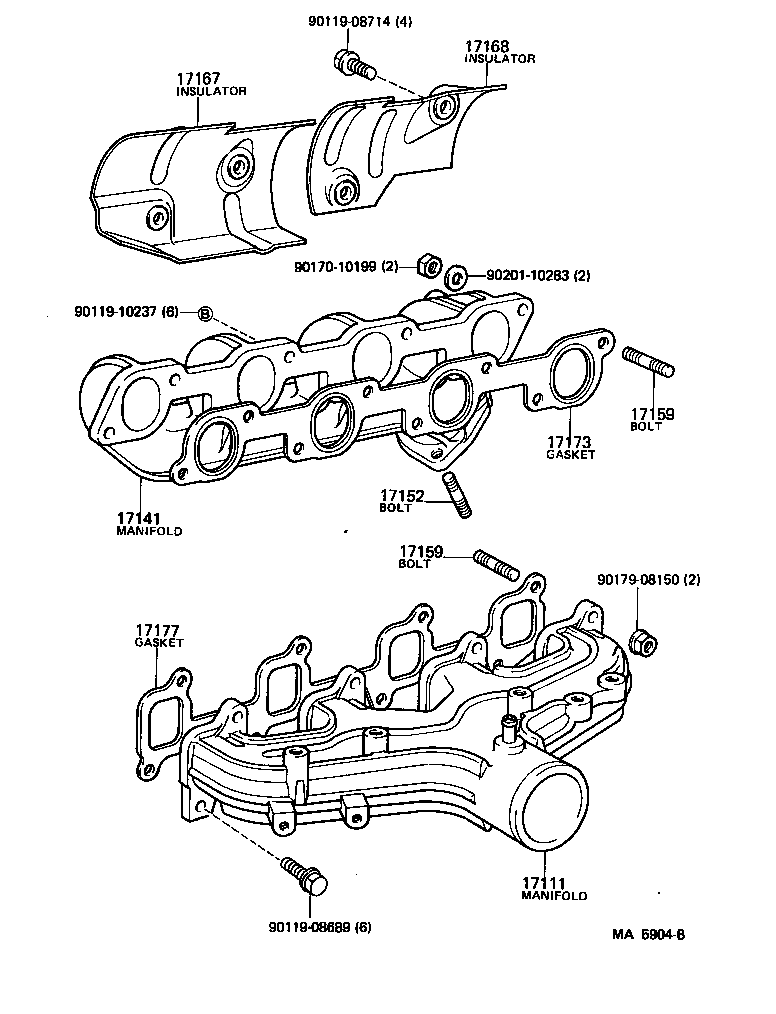

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17168 17173 17177 9011908689 9011908714 9011910237 9017010199 9017908150 9020110283
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-54040

2L..LH51,61..GEN

 1
17141 - MANIFOLD, EXHAUST
17141-54040

2L..LH51,61,71

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10088

2L..LH51,61,71

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08220

2L..LH51,61,71

INTAKE SIDE

 2
90116-10141

2L..LH51,61,71

EXHAUST SIDE

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08220

2L..LH51,61,71

INTAKE SIDE

 2
90116-10141

2L..LH51,61,71

EXHAUST SIDE

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-54041

2L..LH51,61,71

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-54011

2L..LH51,61,71

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-54011

2L..LH51,61,71

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-54012

2L..LH51,61,71

 1
Common parts
90119-08689
90119-08714
90119-10237
90170-10199
90179-08150
90201-10283
