LH61RV-QRBW (1984)
Toyota Hiace Van,Commuter
(8212-8508)M1 ; (8508-8708)LH51,61,YH51,61..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

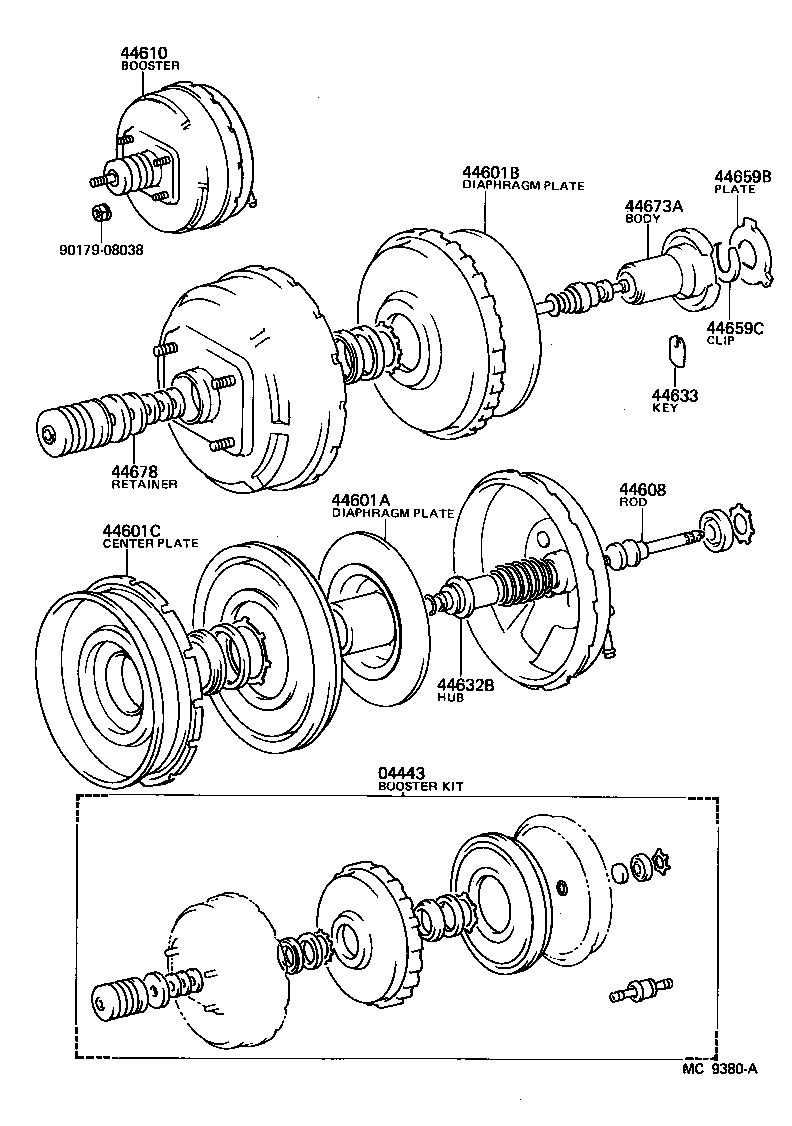

| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-26170 |
LH51,61..EUR |
1 | ||
| 04443-26110 |
LH51..N1;LH51..ARL,GEN;LH50..12S..GEN;LH50,6#,7#..03S,06S,15S FR DISC BRAKE |
1 | ||
| 04443-26150 |
YH50,61..EUR;YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR |
1 | ||
| 44601A - DIAPHRAGM PLATE SUB-ASSY, BOOSTER, FRONT | ||||
| 44609-30350 |
YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR |
1 | ||
| 44601B - DIAPHRAGM PLATE SUB-ASSY, BOOSTER, REAR | ||||
| 44601-30350 |
YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR |
1 | ||
| 44601C - CENTER PLATE SUB-ASSY, BOOSTER | ||||
| 44606-30350 |
YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-32010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 44606-12520 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH51,YH50..N1;LH61..03S,06S,15S;YH51..4HC..(EUR,SA);LH51,71,YH50,60,71..ARL,GEN,SA |
1 | ||
| 44608-30350 |
YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-26220 |
YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR FR DISC BRAKE |
1 | ||
| 44610-26150 |
LH51..N1;LH51..ARL,GEN;LH50..12S..GEN;LH50,6#,7#..03S,06S,15S FR DISC BRAKE |
1 | ||
| 44632B - HUB, BOOSTER REACTION DISK | ||||
| 44632-30350 |
YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-30350 |
YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR |
1 | ||
| 44659B - PLATE, BOOSTER RETAINER | ||||
| 44658-30350 |
YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR |
1 | ||
| 44659C - CLIP, BOOSTER | ||||
| 44659-30350 |
YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-30350 |
YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
(8212-8708)LH5#,6#,7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-26020 |
LH50,51,60,61,7#..RHD |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-26020 |
LH50,51,60,61,7#..RHD |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-26020 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-26020 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
LH5#,6#,7# |
1 | ||
| 44730-20010 |
YH50,51,53,60,61,63,7# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
LH5#,6#,7# |
1 | ||
| 44730-20010 |
YH50,51,53,60,61,63,7# |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44774-26080 |
YH50,61..EUR;YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR |
1 | ||
| 95441-09190 |
LH5#,6#,7# |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44774-26080 |
YH50,61..EUR;YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR |
1 | ||
| 95441-09190 |
LH5#,6#,7# |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09071 |
LH50,51,60,61,7# |
1 | ||
| 90404-51031 |
YH5#,6#,7# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-26110 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-26050 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-26050 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44774-26080 |
LH51,61..EUR |
1 | ||
| 44774-26030 |
LH51..N1;LH51..ARL,GEN;LH50..12S..GEN;LH50,6#,7#..03S,06S,15S |
1 | ||
| 44771-26010 |
YH50,51,53,60,61,63..RHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44774-26080 |
LH51,61..EUR |
1 | ||
| 44774-26030 |
LH51..N1;LH51..ARL,GEN;LH50..12S..GEN;LH50,6#,7#..03S,06S,15S |
1 | ||
| 44771-26010 |
YH50,51,53,60,61,63..RHD |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-26050 |
YH50,51,53,60,61,63,71 |
1 | ||
| 44772-26020 |
LH50,51,60,61,7#..RHD |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-26050 |
YH50,51,53,60,61,63,71 |
1 | ||
| 44772-26020 |
LH50,51,60,61,7#..RHD |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-26040 |
LH50,51,60,61,7# |
1 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16004 |
LH5#,6#,71 |
2 | ||
| 90467-16141 |
LH5#,6#,7# |
2 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16004 |
LH5#,6#,71 |
2 | ||
| 90467-16141 |
LH5#,6#,7# |
2 | ||
| Common parts | ||||
| 90461-10221 | ||||
| 90949-01092 | ||||
| 91611-40814 | ||||
