LH61RV-QRBQ (1987)
Toyota Hiace Van,Commuter

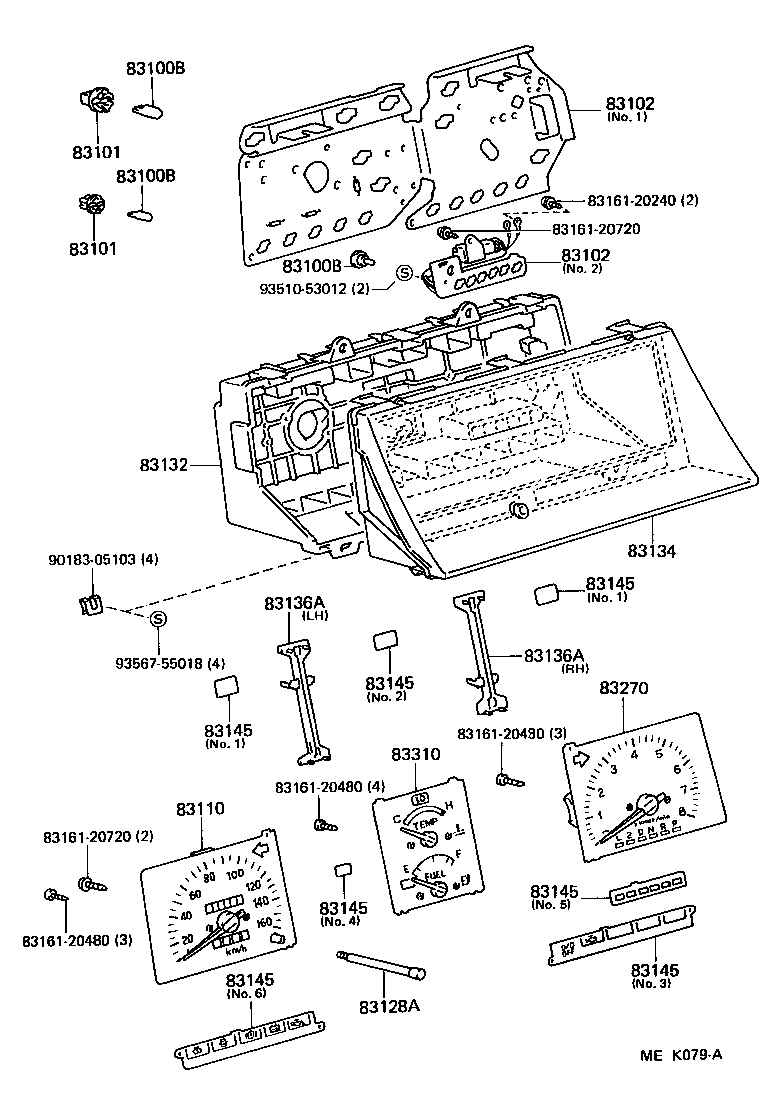

ILLUST NO. 1 OF 3(8708- )LH51,61,71..ARL ; (8808- )GL..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LH51,61,71..5H..ARL 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
9 | ||
| 90981-11018 |
LH51,61,71..ARL 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
9 | ||
| 99132-12034 |
YH53..GL..SA;LH51,61,71..ARL 12V 3.4W,SOCKET:83101-20040 |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LH51,61,71..5H..ARL 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
9 | ||
| 90981-11018 |
LH51,61,71..ARL 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
9 | ||
| 99132-12034 |
YH53..GL..SA;LH51,61,71..ARL 12V 3.4W,SOCKET:83101-20040 |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LH51,61,71..5H..ARL 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
9 | ||
| 90981-11018 |
LH51,61,71..ARL 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
9 | ||
| 99132-12034 |
YH53..GL..SA;LH51,61,71..ARL 12V 3.4W,SOCKET:83101-20040 |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LH51,61,71..5H..ARL BULB:90981-11018 |
9 | ||
| 83101-14040 |
LH51,61,71..ARL BULB:90981-11018 |
9 | ||
| 83101-20040 |
YH53..GL..SA;LH51,61,71..ARL BULB:99132-12034 |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LH51,61,71..5H..ARL BULB:90981-11018 |
9 | ||
| 83101-14040 |
LH51,61,71..ARL BULB:90981-11018 |
9 | ||
| 83101-20040 |
YH53..GL..SA;LH51,61,71..ARL BULB:99132-12034 |
8 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95J30 |
LH51,61,71..5H..ARL |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95J30 |
LH51,61,71..5H..ARL |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95J65 |
LH51,61,71..5H..ARL |
1 | ||
| 83110-95J52 |
YH51,61 KM/MPH |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-89130 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J07 |
YH53..GL..SA;LH51,61,71..ARL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95J15 |
LH51,61,71..ARL |
1 | ||
| 83134-95J16 |
YH53..05S;YH5#,6#,73..STD |
1 | ||
| 83136A - COVER, COMBINATION METER | ||||
| 83136-95J02 |
YH53..GL..SA;LH51,61,71..ARL LH |
1 | ||
| 83136-95J03 |
YH53..GL..SA;LH51,61,71..ARL RH |
1 | ||
| 83136A - COVER, COMBINATION METER | ||||
| 83136-95J02 |
YH53..GL..SA;LH51,61,71..ARL LH |
1 | ||
| 83136-95J03 |
YH53..GL..SA;LH51,61,71..ARL RH |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J36 |
LH51,61,71..5H..ARL NO.6 |
1 | ||
| 83145-89320 |
LH51,61,71..ARL NO.1 |
2 | ||
| 83145-95J42 |
LH51,61,71..ARL NO.3 |
1 | ||
| 83145-89320 |
LH51,61,71..5H..ARL NO.1 |
2 | ||
| 83145-95J78 |
YH53..GL..SA;LH51,61,71..ARL NO.4 |
1 | ||
| 83145-1A160 |
YH53..GL..SA;LH51,61,71..ARL NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J36 |
LH51,61,71..5H..ARL NO.6 |
1 | ||
| 83145-89320 |
LH51,61,71..ARL NO.1 |
2 | ||
| 83145-95J42 |
LH51,61,71..ARL NO.3 |
1 | ||
| 83145-89320 |
LH51,61,71..5H..ARL NO.1 |
2 | ||
| 83145-95J78 |
YH53..GL..SA;LH51,61,71..ARL NO.4 |
1 | ||
| 83145-1A160 |
YH53..GL..SA;LH51,61,71..ARL NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J36 |
LH51,61,71..5H..ARL NO.6 |
1 | ||
| 83145-89320 |
LH51,61,71..ARL NO.1 |
2 | ||
| 83145-95J42 |
LH51,61,71..ARL NO.3 |
1 | ||
| 83145-89320 |
LH51,61,71..5H..ARL NO.1 |
2 | ||
| 83145-95J78 |
YH53..GL..SA;LH51,61,71..ARL NO.4 |
1 | ||
| 83145-1A160 |
YH53..GL..SA;LH51,61,71..ARL NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J36 |
LH51,61,71..5H..ARL NO.6 |
1 | ||
| 83145-89320 |
LH51,61,71..ARL NO.1 |
2 | ||
| 83145-95J42 |
LH51,61,71..ARL NO.3 |
1 | ||
| 83145-89320 |
LH51,61,71..5H..ARL NO.1 |
2 | ||
| 83145-95J78 |
YH53..GL..SA;LH51,61,71..ARL NO.4 |
1 | ||
| 83145-1A160 |
YH53..GL..SA;LH51,61,71..ARL NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J36 |
LH51,61,71..5H..ARL NO.6 |
1 | ||
| 83145-89320 |
LH51,61,71..ARL NO.1 |
2 | ||
| 83145-95J42 |
LH51,61,71..ARL NO.3 |
1 | ||
| 83145-89320 |
LH51,61,71..5H..ARL NO.1 |
2 | ||
| 83145-95J78 |
YH53..GL..SA;LH51,61,71..ARL NO.4 |
1 | ||
| 83145-1A160 |
YH53..GL..SA;LH51,61,71..ARL NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J36 |
LH51,61,71..5H..ARL NO.6 |
1 | ||
| 83145-89320 |
LH51,61,71..ARL NO.1 |
2 | ||
| 83145-95J42 |
LH51,61,71..ARL NO.3 |
1 | ||
| 83145-89320 |
LH51,61,71..5H..ARL NO.1 |
2 | ||
| 83145-95J78 |
YH53..GL..SA;LH51,61,71..ARL NO.4 |
1 | ||
| 83145-1A160 |
YH53..GL..SA;LH51,61,71..ARL NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J36 |
LH51,61,71..5H..ARL NO.6 |
1 | ||
| 83145-89320 |
LH51,61,71..ARL NO.1 |
2 | ||
| 83145-95J42 |
LH51,61,71..ARL NO.3 |
1 | ||
| 83145-89320 |
LH51,61,71..5H..ARL NO.1 |
2 | ||
| 83145-95J78 |
YH53..GL..SA;LH51,61,71..ARL NO.4 |
1 | ||
| 83145-1A160 |
YH53..GL..SA;LH51,61,71..ARL NO.2 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-95J04 |
LH51,61,71..5H..ARL |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95J20 |
LH51,61,71..ARL |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-20480 | ||||
| 83161-20720 | ||||
| 90183-05103 | ||||
| 93510-53012 | ||||
| 93567-55018 | ||||
ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95J16 |
YH5#,6#,73..RHD..MTM |
1 | ||
| 83710-95J20 |
LH51,61,71..RHD..5H |
1 | ||
| Common parts | ||||
| 83791-95J00 | ||||
| 83791-95J03 | ||||
| 83791-95J05 | ||||
| 90461-10595 | ||||
| 90461-10597 | ||||
| 91611-60816 | ||||
ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-30011 |
LH51,61,71..ARL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J04 |
LH51,61,71,YH5#,61,63,73..STD..(ARL,GEN) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J04 |
LH51,61,71,YH5#,61,63,73..STD..(ARL,GEN) |
1 | ||
| 83911C - ORNAMENT, CLOCK | ||||
| 83911-95J0303 |
LH51,61,YH5#,61,63..SRF..STD..(ARL,GEN) GRAY,TRIM4# |
1 | ||
| 83915 - BRACKET, CLOCK | ||||
| 83915-95J00 |
LH51,61,71,YH5#,61,63,73..STD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90159-40071 | ||||
| 93249-25010 | ||||
| Linked diagrams | ||||
| 6452 | ||||
