LH61RV-QRBQ (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

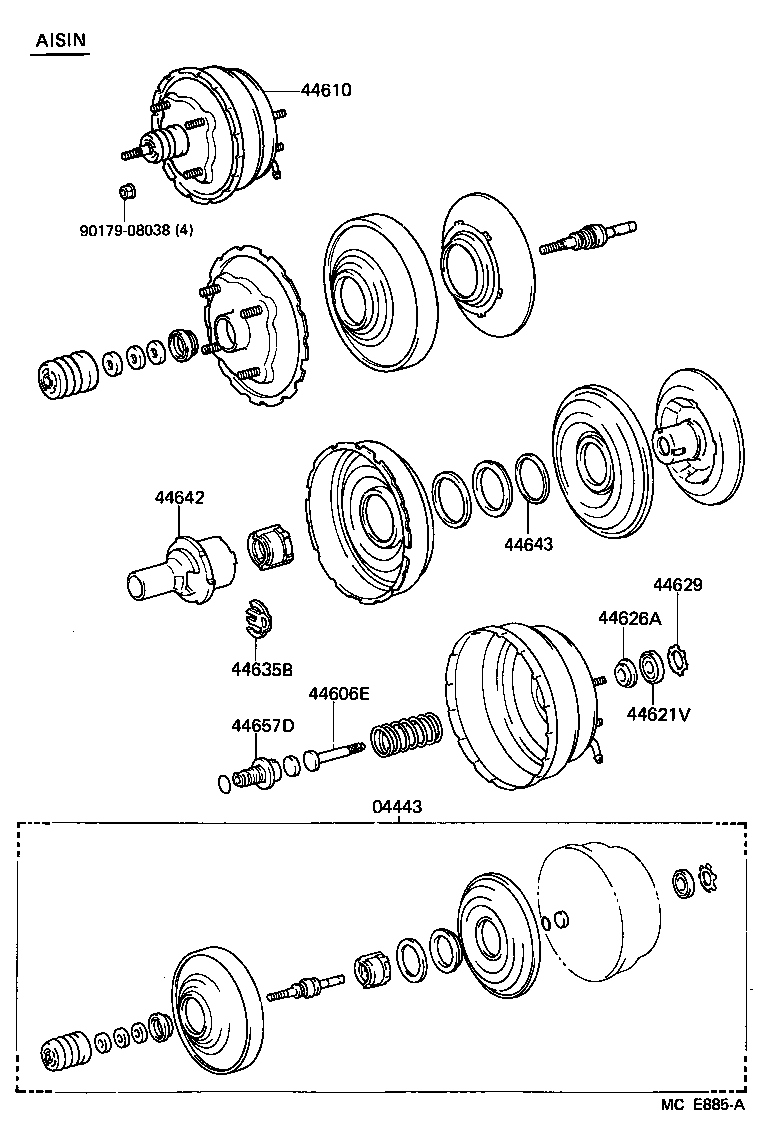

ILLUST NO. 1 OF 2(8708- )ARL,SA

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44626A 44629 44635B 44642 44643 44657D 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-26220

YH51,61

W(FRONT DISC BRAKE)

 1
04443-26250

YH51,61

 1
04443-26360

LH51,61,71..ARL

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-20800

LH51,61,71,YH53,63,73..ARL

 1
44610 - BOOSTER ASSY, BRAKE
44610-26250

LH51,61,71,YH53,63,73..ARL

 1
44621V - SEAL, BOOSTER BODY
44621-14030

LH51,61,71,YH53,63,73..ARL

 1
44626A - RETAINER, BOOSTER BODY SEAL
44626-60010

LH51,61,71,YH53,63,73..ARL

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

LH51,61,71,YH53,63,73..ARL

 1
44635B - KEY, VALVE STOPPER
44635-20800

LH51,61,71,YH53,63,73..ARL

 1
44642 - PISTON, BRAKE BOOSTER
44642-20800

LH51,61,71,YH53,63,73..ARL

 1
44643 - RETAINER, DIAPHRAGM
44643-20800

LH51,61,71,YH53,63,73..ARL

 1
44657D - CASE, REACTION DISC
44657-22630

LH51,61,71,YH53,63,73..ARL

 1
Common parts
90179-08038

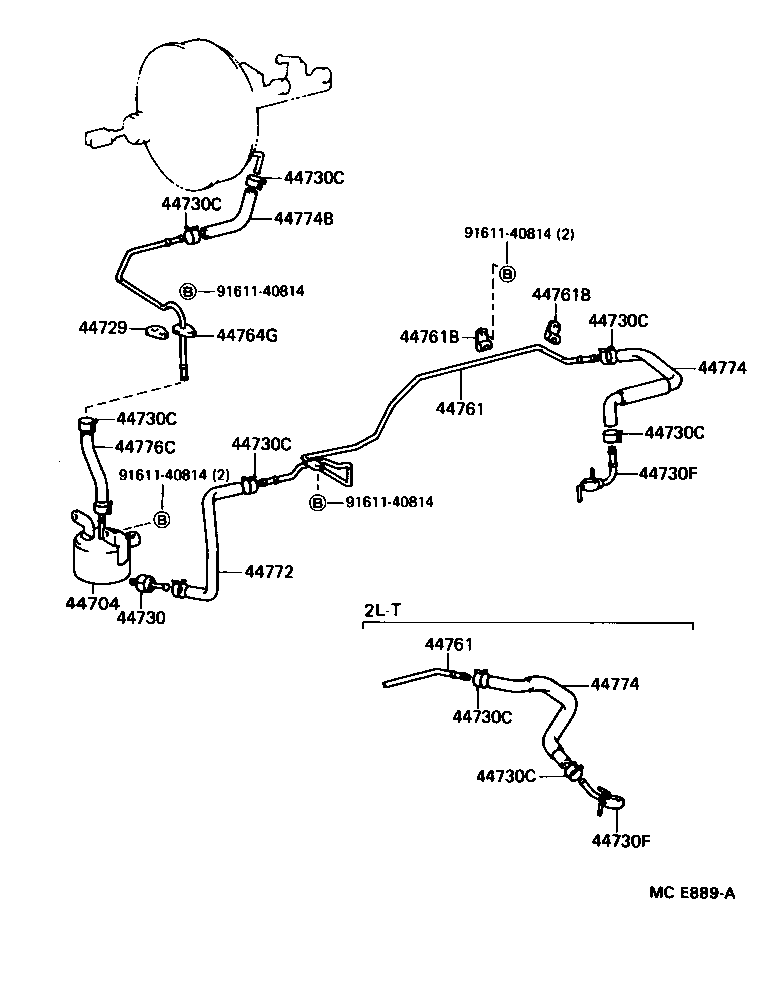

ILLUST NO. 2 OF 2(8708- )LH51,61,71..RHD

Click highlighted areas on diagram

diagram 44704 44729 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44730F 44761 44761 44761B 44761B 44764G 44772 44774 44774 44774B 44776C 9161140814 9161140814 9161140814 9161140814
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-26020

LH51,61,71..RHD

 1
44729 - GASKET, VACUUM TUBE
44729-26020

LH51,61,71,YH5#,6#,73

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

YH5#,6#

 1
44730-60040

LH51,61,71

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YH5#,6#,73

 1
90405-09071

LH51,61,71

 1
90405-09070

LH51,61..ARL

W(AIR CONDITIONER)

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YH5#,6#,73

 1
90405-09071

LH51,61,71

 1
90405-09070

LH51,61..ARL

W(AIR CONDITIONER)

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26110

LH51,61,71,YH5#,6#,73

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26110

LH51,61,71,YH5#,6#,73

 1
44761B - CLAMP, CONNEECTOR TUBE
90461-10221

LH51,61,71,YH5#,6#,73

 2
44761B - CLAMP, CONNEECTOR TUBE
90461-10221

LH51,61,71,YH5#,6#,73

 2
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26050

LH51,61,71,YH5#,6#,73..RHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26020

LH51,61,71..RHD

 1
44772-26040

YH5#,6#,73

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26040

LH51,61,71

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26040

LH51,61,71

 1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-26120

LH51,61,71..ARL

 1
44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR
95441-09190

LH51,61,71,YH73

 1
Common parts
91611-40814

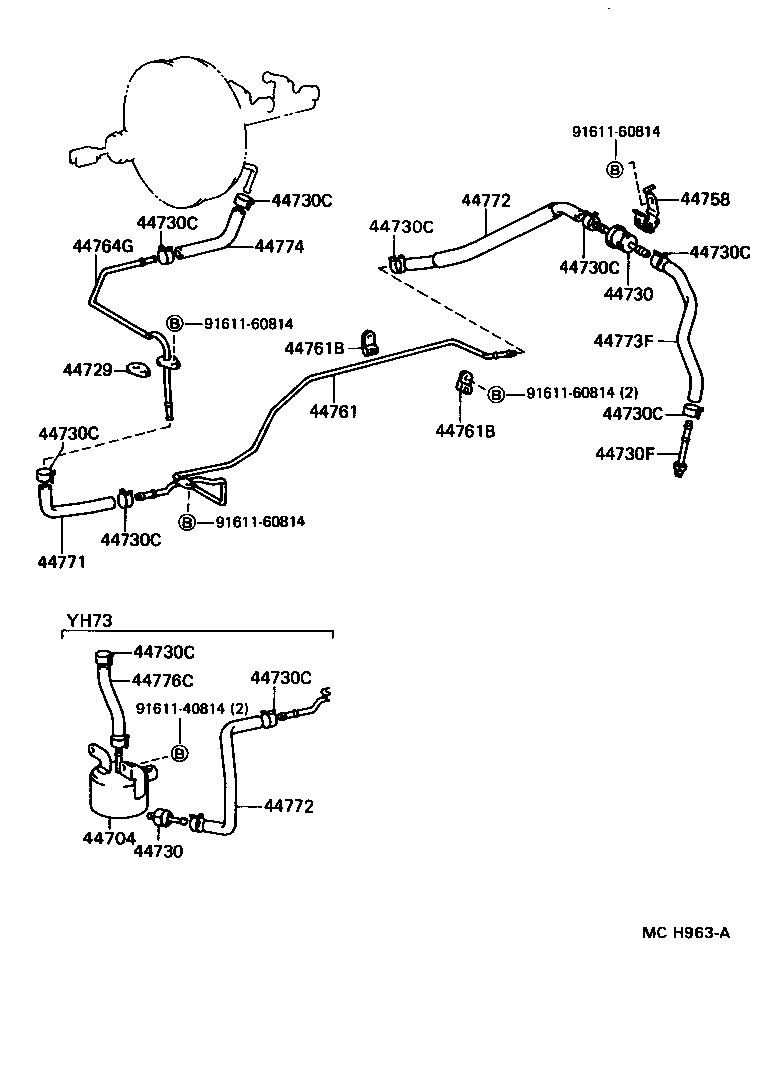

ILLUST NO. 2 OF 2(8708- )YH5#,61,73..RHD

Click highlighted areas on diagram

diagram 44704 44729 44730 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44758 44761 44761B 44761B 44764G 44771 44772 44772 44773F 44774 44776C 9161140814 9161160814 9161160814 9161160814 9161160814
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-26020

LH51,61,71..RHD

 1
44729 - GASKET, VACUUM TUBE
44729-26020

LH51,61,71,YH5#,6#,73

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

YH5#,6#

 1
44730-60040

LH51,61,71

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

YH5#,6#

 1
44730-60040

LH51,61,71

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LH51,61,71,YH5#,6#

 8
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YH5#,6#,73

 1
90405-09071

LH51,61,71

 1
90405-09070

LH51,61..ARL

W(AIR CONDITIONER)

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-26020

YH5#,6#,73

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26110

LH51,61,71,YH5#,6#,73

 1
44761B - CLAMP, CONNEECTOR TUBE
90461-10221

LH51,61,71,YH5#,6#,73

 2
44761B - CLAMP, CONNEECTOR TUBE
90461-10221

LH51,61,71,YH5#,6#,73

 2
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26050

LH51,61,71,YH5#,6#,73..RHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26010

YH5#,6#..RHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26020

LH51,61,71..RHD

 1
44772-26040

YH5#,6#,73

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26020

LH51,61,71..RHD

 1
44772-26040

YH5#,6#,73

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-26050

YH5#,6#,73

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26040

LH51,61,71

 1
44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR
95441-09190

LH51,61,71,YH73

 1
Common parts
91611-40814
91611-60814
