LH61RV-QRBQ (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )MTM

Click highlighted areas on diagram

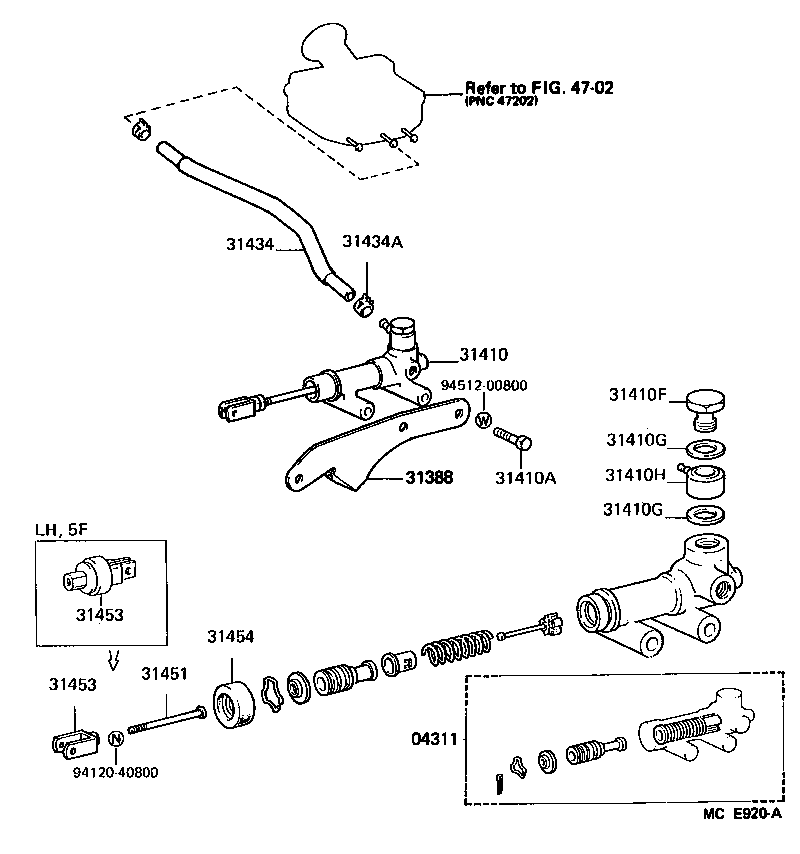

diagram 04311 31388 31410 31410A 31410F 31410G 31410G 31410H 31434 31434A 31451 31453 31453 31454 4702 9412040800 9451200800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-14031

LH51,61,71,YH5#,6#,73..MTM

 1
04311-14032

LH51,61,71,YH5#,6#,73..MTM

 1
04311-28010

LH51,61,71,YH5#,6#,73..MTM

 1
31388 - SUPPORT, CLUTCH MASTER CYLINDER
55105-95J00

LH51,61,71,YH5#,6#,73..MTM

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-26091

YH5#,6#,73..MTM

 1
31420-26103

LH51,61,71..5H

 1
31420-26102

LH51,61,71..5H

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
91611-60865

LH51,61,71,YH5#,6#,73..MTM

 2
31410F - BOLT, UNION(FOR CLUTCH MASTER CYLINDER)
90401-16078

LH51,61,71,YH5#,6#,73..MTM

 1
31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION)
90430-16242

LH51,61,71,YH5#,6#,73..MTM

 2
31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION)
90430-16242

LH51,61,71,YH5#,6#,73..MTM

 2
31410H - UNION(FOR CLUTCH MASTER CYLINDER)
90405-10125

LH51,61,71,YH5#,6#,73..MTM

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-26140

LH51,61,71,YH5#,6#,73..RHD..MTM

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

LH51,61,71,YH5#,6#,73..MTM

 2
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-30120

YH5#,6#,73..MTM

 1
31451-22070

LH51,61,71..5H

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-30050

LH51,61,71..5H

 1
31453-35010

YH5#,6#,73..MTM

 1
31404-30051

LH51,61,71..5H

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-30050

LH51,61,71..5H

 1
31453-35010

YH5#,6#,73..MTM

 1
31404-30051

LH51,61,71..5H

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

LH51,61,71,YH5#,6#,73..MTM

 1
Common parts
94120-40800
94512-00800
Linked diagrams
4702
