3302 - CLUTCH HOUSING & TRANSMISSION CASE (MTM)

LH61RV-QRB (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989

Engine 2L

Transmission 5H MTM

Displacement 2500cc

Power 168 HP (125 kW)

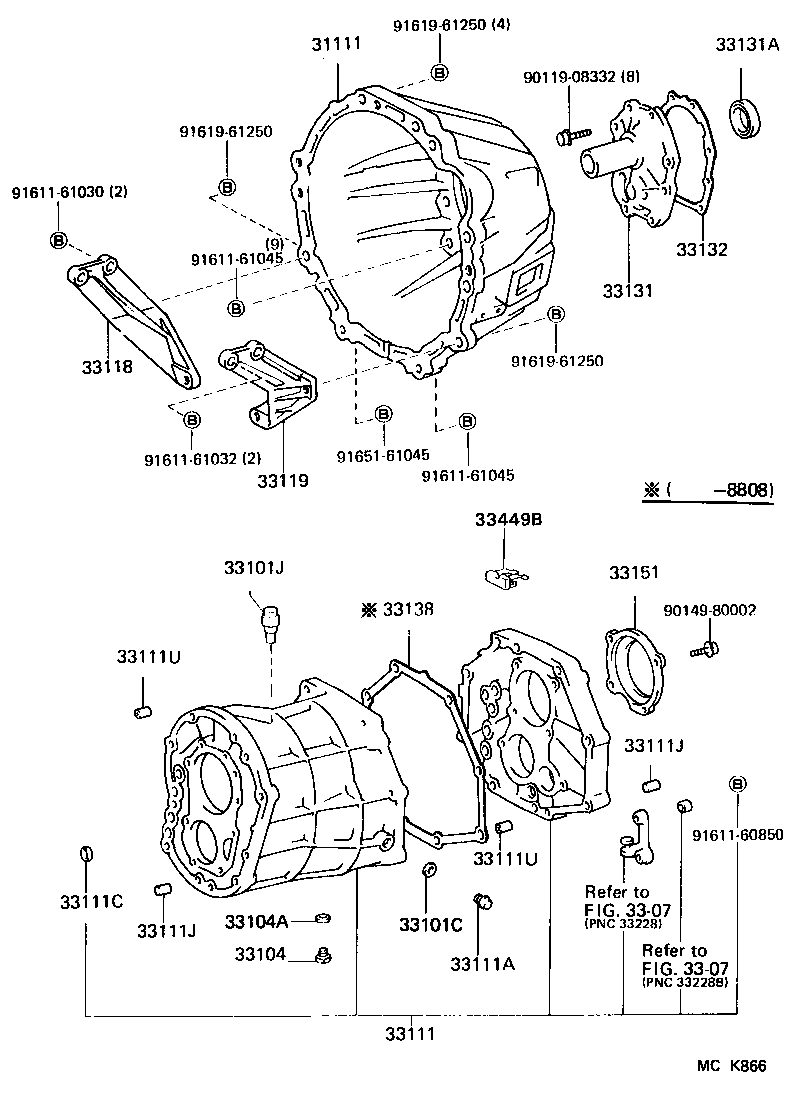

(8708- )LH51,61,71..5H

Click highlighted areas on diagram

G55

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-30190	YH5#,61..MTM..STD	08/1987 - 08/1988	1
31111-22111	LH51,61,71..5H	08/1987 - 08/1988	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33101J - PLUG, BREATHER
90930-03085	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33111 - CASE, MANUAL TRANSMISSION
33101-26900	LH51,61,71,YH5#,6#,73..MTM	08/1987 - 08/1988	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004	LH51,61,71,YH5#,61..MTM..STD OD=14	08/1987 - 08/1988	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LH51,61,71,YH5#,6#,73..MTM L=16,OD=12	08/1987 - 03/1998	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LH51,61,71,YH5#,6#,73..MTM L=16,OD=12	08/1987 - 03/1998	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LH51,61,71,YH5#,6#,73..MTM L=14,OD=15	08/1987 - 03/1998	2
90253-11001	LH51,61,71,YH5#,6#,73..MTM L=11,OD=11	08/1987 - 03/1998	2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LH51,61,71,YH5#,6#,73..MTM L=14,OD=15	08/1987 - 03/1998	2
90253-11001	LH51,61,71,YH5#,6#,73..MTM L=11,OD=11	08/1987 - 03/1998	2
33118 - PLATE, STIFFENER, RH(MTM)
33118-25020	LH51,61,71..5H	08/1987 - 08/1989	1
33118-36031	YH5#,6#,73..MTM	08/1987 - 04/1993	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-36030	YH5#,6#,73..MTM	08/1987 - 04/1993	1
33119-25020	LH51,61,71..5H	08/1987 - 08/1989	1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-26020	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115	LH51,61,71,YH5#,6#,73..MTM	08/1987 - 08/1988	1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-28010	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33138 - GASKET, INTERMEDIATE PLATE
33138-28010	LH51,61,71,YH5#,6#,73..MTM	08/1987 - 08/1988	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-28010	LH51,61,71,YH5#,6#,73..MTM	08/1987 - 08/1988	1
Common parts
90119-08332
90149-80002
91611-60850
91611-61030
91611-61032
91611-61045
91619-61250
91651-61045
Linked diagrams
3307

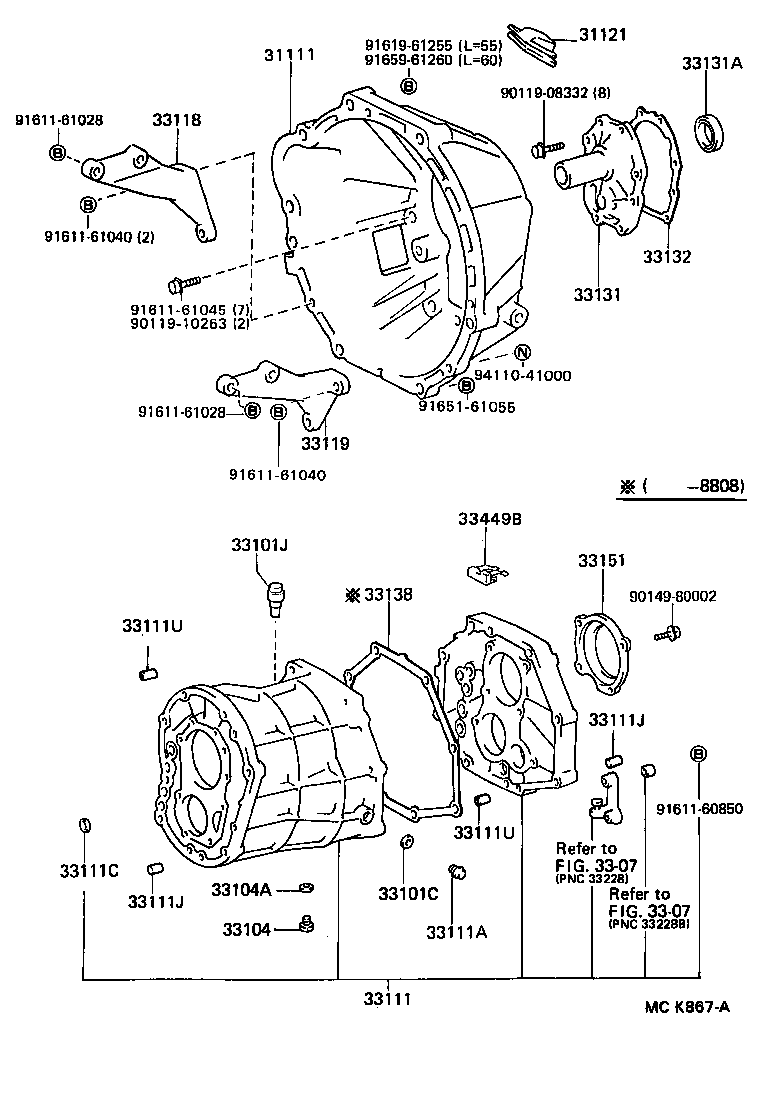

(8708- )YH5#,6#,73..MTM

Click highlighted areas on diagram

G45,G53,G55

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-30190	YH5#,61..MTM..STD	08/1987 - 08/1988	1
31111-22111	LH51,61,71..5H	08/1987 - 08/1988	1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-30040	YH5#,6#,73..MTM	08/1987 - 09/1993	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33101J - PLUG, BREATHER
90930-03085	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33111 - CASE, MANUAL TRANSMISSION
33101-26900	LH51,61,71,YH5#,6#,73..MTM	08/1987 - 08/1988	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004	LH51,61,71,YH5#,61..MTM..STD OD=14	08/1987 - 08/1988	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LH51,61,71,YH5#,6#,73..MTM L=16,OD=12	08/1987 - 03/1998	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LH51,61,71,YH5#,6#,73..MTM L=16,OD=12	08/1987 - 03/1998	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LH51,61,71,YH5#,6#,73..MTM L=14,OD=15	08/1987 - 03/1998	2
90253-11001	LH51,61,71,YH5#,6#,73..MTM L=11,OD=11	08/1987 - 03/1998	2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LH51,61,71,YH5#,6#,73..MTM L=14,OD=15	08/1987 - 03/1998	2
90253-11001	LH51,61,71,YH5#,6#,73..MTM L=11,OD=11	08/1987 - 03/1998	2
33118 - PLATE, STIFFENER, RH(MTM)
33118-25020	LH51,61,71..5H	08/1987 - 08/1989	1
33118-36031	YH5#,6#,73..MTM	08/1987 - 04/1993	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-36030	YH5#,6#,73..MTM	08/1987 - 04/1993	1
33119-25020	LH51,61,71..5H	08/1987 - 08/1989	1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-26020	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115	LH51,61,71,YH5#,6#,73..MTM	08/1987 - 08/1988	1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-28010	LH51,61,71,YH5#,61..MTM..STD	08/1987 - 08/1988	1
33138 - GASKET, INTERMEDIATE PLATE
33138-28010	LH51,61,71,YH5#,6#,73..MTM	08/1987 - 08/1988	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-28010	LH51,61,71,YH5#,6#,73..MTM	08/1987 - 08/1988	1
Common parts
90119-08332
90119-10263
90149-80002
91611-60850
91611-61028
91611-61040
91611-61045
91619-61255
91651-61055
91659-61260
94110-41000
Linked diagrams
3307
