LH61RB-QR (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-9206)STD ; (9206- )03S

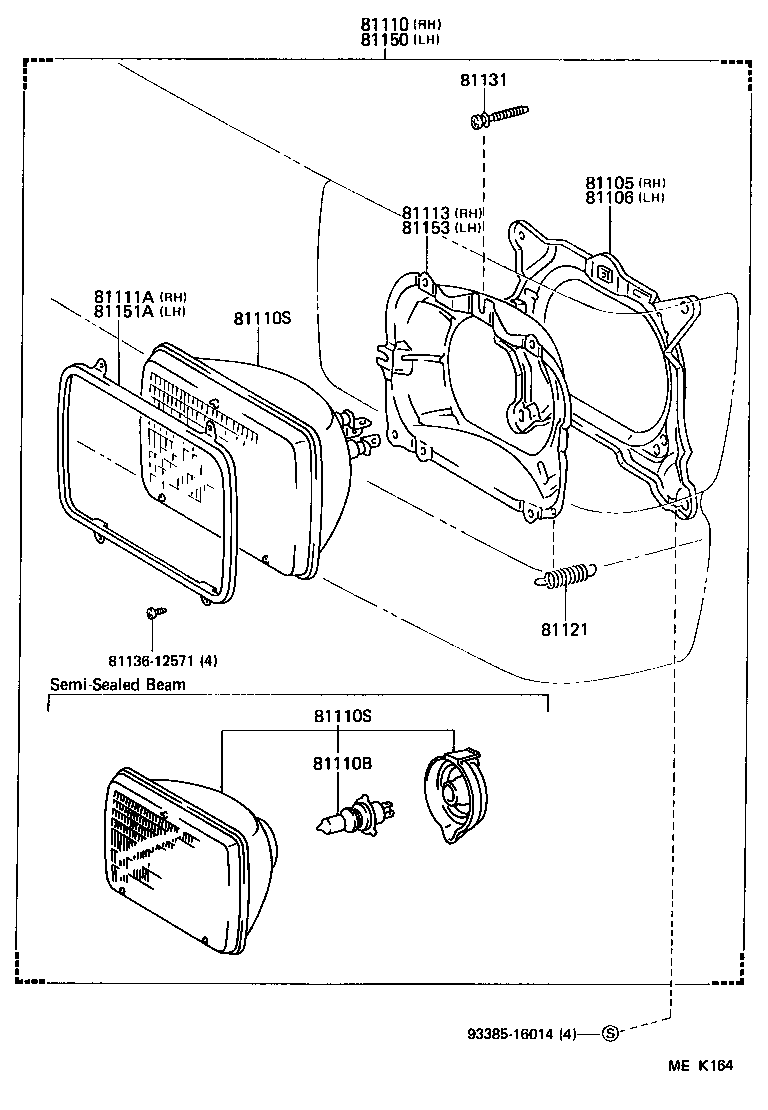

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110S 81110S 81111A 81113 81121 81131 8113612571 81150 81151A 81153 9338516014
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95J14

LH51,61,71,YH5#,6#,73..STD

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95J14

LH51,61,71,YH5#,6#,73..STD

 1
81110 - HEADLAMP ASSY, RH
81110-95J20

LH51,61,YH51,61,63..RHD..GEN

*SSB,HALOGEN,WHITE

 1
81110-95J14

LH51,61,YH51,61,63..RHD..GEN

 1
81110-95J18

LH51,61,YH51,61,63..RHD..GEN

*SSB,WHITE

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

LH51,61,YH51,61,63..RHD..GEN

12V 45/40W,WHITE

 2
90981-13015

LH61..HRF;LH61..RHD..(06S,15S);LH51,YH51,61,63..RHD..GEN

12V 60/55W,*HAL *WH

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04005

LH51,61,YH51,61,63..RHD..GEN

12V 45/40W,*WSB

 2
90981-04029

LH51,61,YH51,61,63..RHD..GEN

12V 65/55W,*WB

 2
90981-04011

LH51,61,YH51,61,63..RHD..GEN

12V 60/55W,*HWS

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04005

LH51,61,YH51,61,63..RHD..GEN

12V 45/40W,*WSB

 2
90981-04029

LH51,61,YH51,61,63..RHD..GEN

12V 65/55W,*WB

 2
90981-04011

LH51,61,YH51,61,63..RHD..GEN

12V 60/55W,*HWS

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-16020

LH51,61,71,YH5#,6#,73..STD

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-16220

LH51,61,71,YH5#,6#,73..STD

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

LH51,61,71,YH5#,6#,73..STD

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

LH51,61,71,YH5#,6#,73..STD

 4
81150 - HEADLAMP ASSY, LH
81150-95J18

LH51,61,YH51,61,63..RHD..GEN

*SSB,WHITE

 1
81150-95J14

LH51,61,YH51,61,63..RHD..GEN

 1
81150-95J20

LH51,61,YH51,61,63..RHD..GEN

*SSB,HALOGEN,WHITE

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-16020

LH51,61,71,YH5#,6#,73..STD

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81113-16220

LH51,61,71,YH5#,6#,73..STD

 1
Common parts
81136-12571
93385-16014
