LH61LV-QRFE (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )MTM

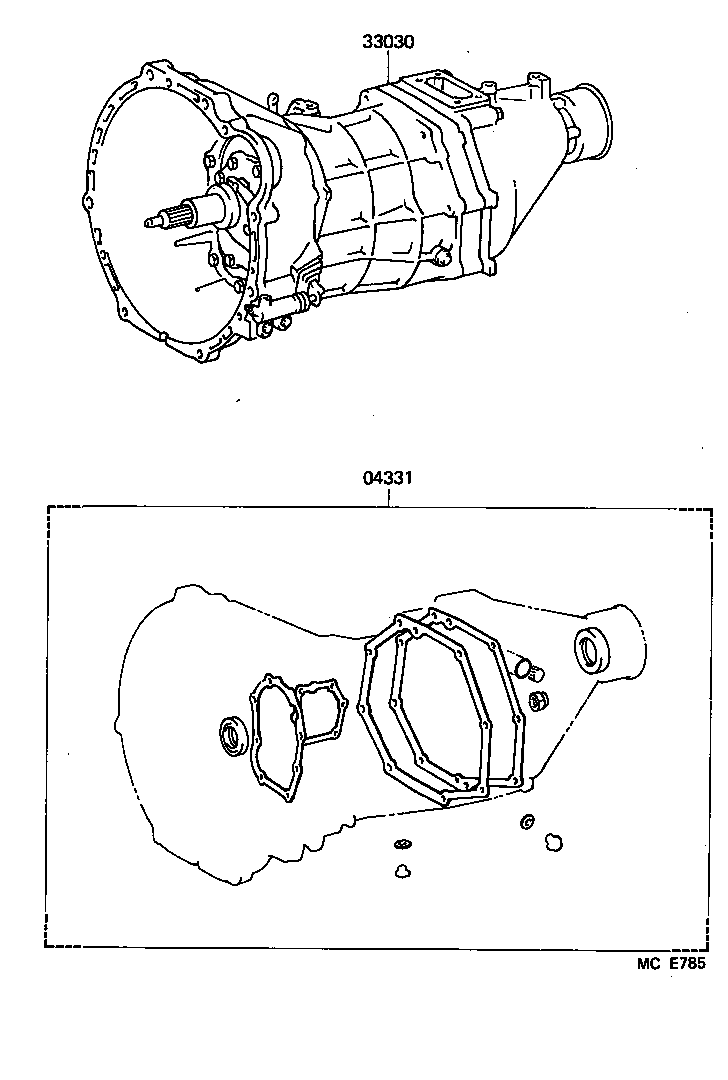

Click highlighted areas on diagram

G45,G53,G55

diagram 04331 33030
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-35101

LH51,61,71,YH5#,6#,73..MTM

 1
33030 - TRANSMISSION UNIT ASSY, MANUAL
33030-26923

LH61..V..5H;LH51,71..5H..(03S,06S,15S)

G55

 1
33030-26931

YH51,61..LHD..V

*FGR=41:9

 1
