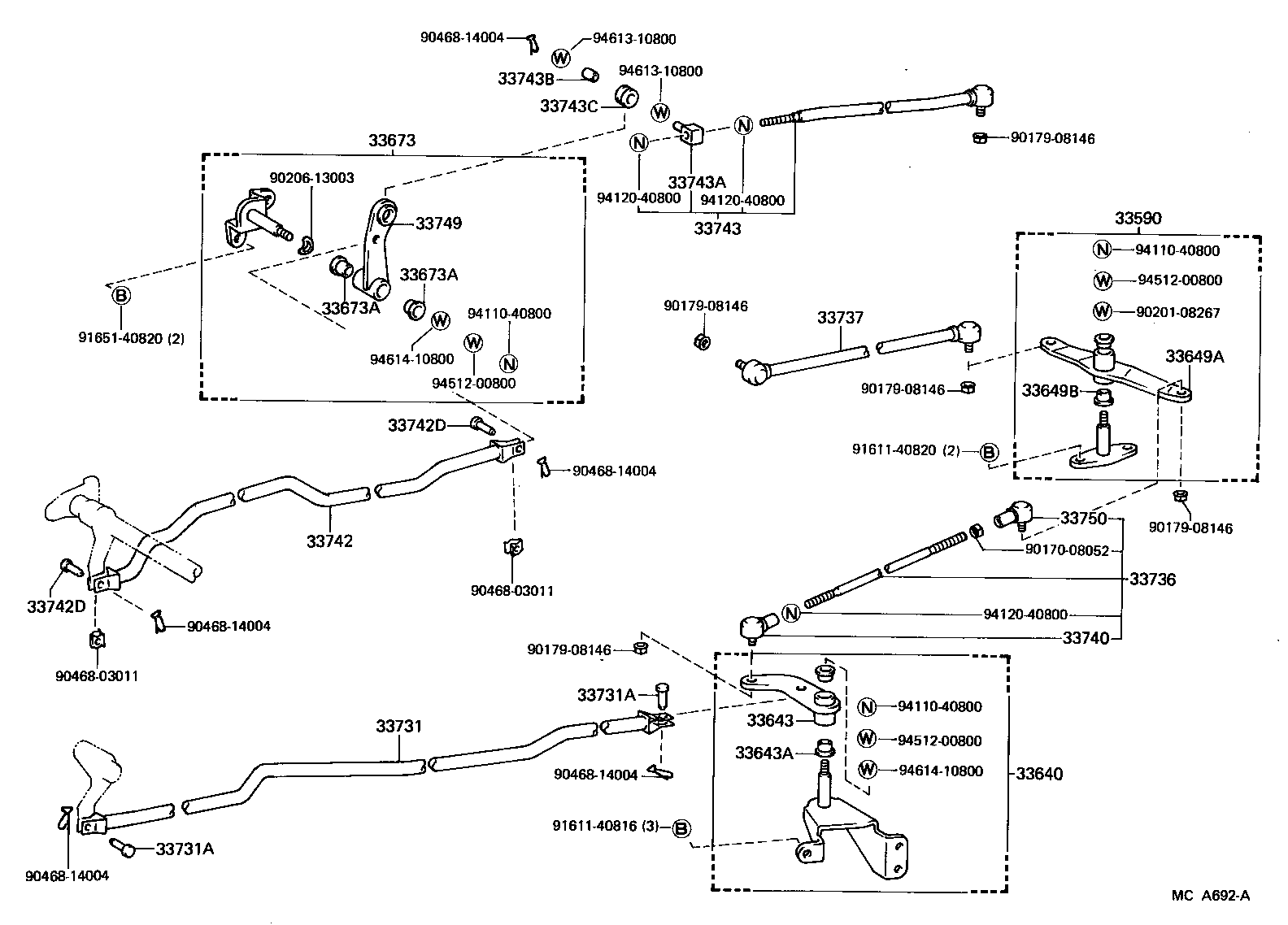

LH61LV-QRBFW (1984)
Toyota Hiace Van,Commuter
(8212-8708)LH50,51,60,61,YH50,51,60,61..LHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-26160 |
LH50,51,60,61,YH50,51,60,61..LHD..5H |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-26160 |
LH50,51,60,61,YH50,51,60,61..LHD..5H |
1 | ||
| 33503 - LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT) | ||||
| 33503-26090 |
LH50,51,60,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
LH50,60,70,YH5#,6#,71..ARL,EUR,SA |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 90303-17005 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H |
2 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-26020 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5H |
1 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-26020 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5H |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14395 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14395 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33513B - SPACER (FOR CONTROL SHAFT BRACKET UPPER SHAFT) | ||||
| 90560-11015 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5H |
1 | ||
| 33513C - BOLT (FOR CONTROL SHAFT BRACKET UPPER SHAFT) | ||||
| 90109-05012 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5H |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-36010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-36010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 33515-30010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 33515-30010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-36010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07001 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33541-26060 |
LH51,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT) | ||||
| 33535-26040 |
LH50,51,60,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13192 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H |
2 | ||
| 33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT) | ||||
| 33536-36040 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H |
1 | ||
| 33562 - STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT | ||||
| 33562-26010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5H |
1 | ||
| 33562A - PIN (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER) | ||||
| 90254-03006 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5H |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-26012 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-36010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H |
1 | ||
| 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33574-25010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H |
2 | ||
| 33593 - HOLDER, SPRING (FOR SELECT LEVER) | ||||
| 33593-26030 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5H |
1 | ||
| 33670 - SUPPORT ASSY, CONTROL ROD (FOR COLUMN SHIFT) | ||||
| 33670-26321 |
LH50,51,60,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 33772-20010 |
LH50,51,60,61,YH50,51,60,61..LHD |
4 | ||
| 33696 - SEAT, SELECT SPRING | ||||
| 33696-26020 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5H |
1 | ||
| 33696A - SPRING, COMPRESSION | ||||
| 90501-18049 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5H |
1 | ||
| 33705 - SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE) | ||||
| 33705-26061 |
LH50,51,60,61,YH50,51,60,61..LHD |
1 | ||
| 33706 - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR COLUMN SHIFT) | ||||
| 33706-26040 |
LH50,51,60,61,YH50,51,60,61..LHD |
1 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33527-26070 |
LH50,51,60,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33711G - BOLT, CONTROL SHAFT LEVER LOCK | ||||
| 33218-35010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H |
1 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33710-26091 |
LH51,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33789 - COVER, CROSS SHAFT DUST(FOR COLUMN SHIFT) | ||||
| 33775-28040 |
LH50,51,60,61,YH50,51,60,61..LHD |
2 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90468-16012 | ||||
| 90580-14002 | ||||
| 91111-40814 | ||||
| 91611-40816 | ||||
| 94110-41000 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||
| 94531-00500 | ||||
| 94613-10800 | ||||
(8401-8708)LH51,61,YH50,51,60,61..LHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33590 - CRANK ASSY, SELECTING BELL (FOR COLUMN SHIFT) | ||||
| 33590-26010 |
LH51,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33640 - CONTROL ASSY, SELECTING | ||||
| 33640-26011 |
LH51,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33643 - LEVER, GEAR SELECTING | ||||
| 33643-26092 |
LH51,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33643-26091 |
LH51,61,YH50,6#..LHD..MTM |
1 | ||
| 33643A - BUSH (FOR SELECTING, NO.1 LEVER) | ||||
| 90386-13192 |
LH50,51,60,61,YH50,51,60,61..LHD..MTM |
2 | ||
| 33649A - LEVER, GEAR SELECTING, NO.4 | ||||
| 33649-26010 |
LH51,61,YH50,6#..LHD..MTM |
1 | ||
| 33649-26011 |
LH51,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33649B - BUSH (FOR GEAR SELECTING NO.4 LEVER) | ||||
| 90386-13192 |
LH51,61,YH50,51,60,61..LHD..MTM |
2 | ||
| 33673 - SUPPORT, CONTROL ROD, NO.2 | ||||
| 33680-26021 |
LH51,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33673A - BUSH (FOR CONTROL ROD, NO.2 SUPPORT) | ||||
| 90386-13192 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H |
4 | ||
| 33673A - BUSH (FOR CONTROL ROD, NO.2 SUPPORT) | ||||
| 90386-13192 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H |
4 | ||
| 33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33731-26040 |
LH5#,6#,YH50,6#..LHD..MTM |
1 | ||
| 33731-26070 |
LH51,61,YH50,51,60,61..LHD..MTM WHITE PLATED |
1 | ||
| 33731A - PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD) | ||||
| 90240-08042 |
LH50,51,60,61,YH50,51,60,61..LHD..MTM FR |
1 | ||
| 90240-08028 |
LH50,51,60,61,YH50,51,60,61..LHD..MTM RR |
1 | ||
| 33731A - PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD) | ||||
| 90240-08042 |
LH50,51,60,61,YH50,51,60,61..LHD..MTM FR |
1 | ||
| 90240-08028 |
LH50,51,60,61,YH50,51,60,61..LHD..MTM RR |
1 | ||
| 33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33790-26111 |
LH51,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33737 - ROD, GEAR SELECTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33850-26040 |
LH51,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-26010 |
LH50,51,60,61,YH50,51,60,61..LHD..MTM |
1 | ||
| 33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33742-26120 |
LH50,60,70,YH5#,6#,71..MTM |
1 | ||
| 33742D - PIN, W/HOLE | ||||
| 90240-08042 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
2 | ||
| 33742D - PIN, W/HOLE | ||||
| 90240-08042 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
2 | ||
| 33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33840-26090 |
LH50,60,70,YH5#,6#,71..MTM |
1 | ||
| 33743A - SWIVEL, CONNECTING ROD | ||||
| 33723-10020 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H |
1 | ||
| 33743B - BUSH, NO.1 | ||||
| 90389-08005 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33743C - GROMMET | ||||
| 90480-17177 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
1 | ||
| 33749 - LEVER, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33749-26080 |
LH50,60,70,YH5#,6#,71..MTM |
1 | ||
| 33750 - END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT) | ||||
| 33750-26010 |
LH50,51,60,61,YH50,51,60,61..LHD..MTM |
1 | ||
| Common parts | ||||
| 90170-08052 | ||||
| 90179-08146 | ||||
| 90201-08267 | ||||
| 90206-13003 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||
