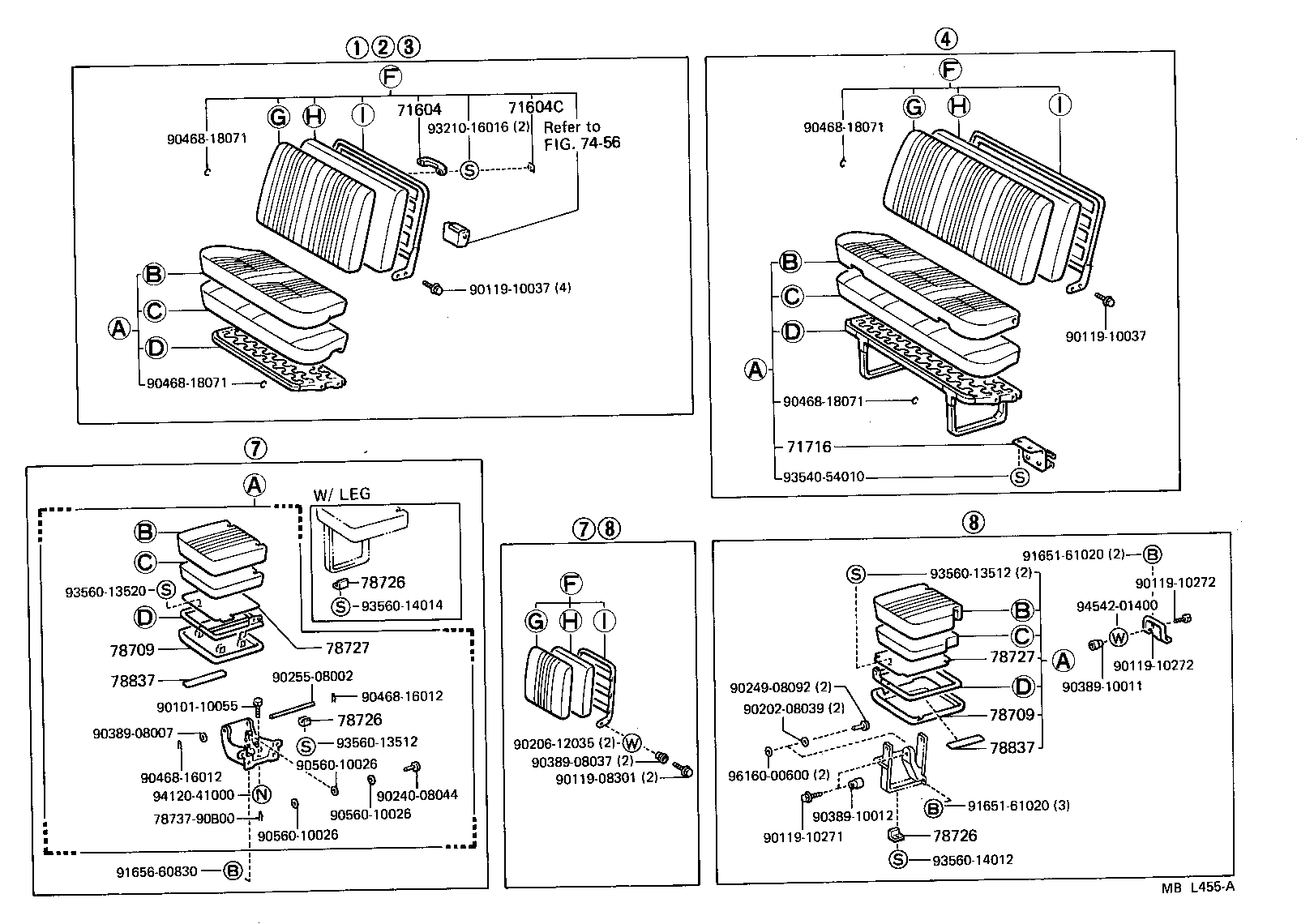

LH61LB-QR (1984)
Toyota Hiace Van,Commuter
(8212-8605)LHD..COM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-1002025 |
LH5#,6#,7#,YH50,6#,71..COM BEIGE,BEIGE |
6 | ||
| 74610-95J0106 |
LH51,61,71,YH5#,6#,71..COM BROWN,BROWN |
6 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-95J0106 |
LH51,61,71,YH5#,6#,71..COM BROWN |
24 | ||
| 74617-1401015 |
LH5#,6#,7#,YH50,6#,71..COM BEIGE,BEIGE |
24 | ||
| 71716 - SPRING, JACK HANDLE SUPPORT | ||||
| 58706-90C00 |
LH50,51,60,61,7#,YH50,51,60,61,63,7#..COM |
2 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-90C01 |
LH51,61,71,YH50,6#,71..COM |
2 | ||
| 78705-90C00 |
LH50,60,70,YH50,6#,71..COM |
2 | ||
| 78709 - PANEL SUB-ASSY, SUB SEAT CUSHION | ||||
| 78709-90C04 |
LH51,61,YH50,60..LHD..COM..GEN W/SUB SEAT LEG |
2 | ||
| 78709-95J0006 |
LH61,YH60,61..LHD..15S RH,BROWN,BROWN |
1 | ||
| 78709-95J0106 |
YH50,60,61..LHD..COM..GEN *SAA,*47,W/LEG,BROWN,BROWN |
2 | ||
| 78709-90C03 |
LH61,YH60..LHD..15S RH |
1 | ||
| 78709-90C05 |
LH51,61,YH50,60..LHD..COM LH |
2 | ||
| 78709-95J0206 |
LH51,61,YH50,51,60,61..LHD..COM LH,BROWN,BROWN |
2 | ||
| 78709-95J0106 |
LH51,61,YH50,51,61..LHD..COM..GEN W/SUB SEAT LEG,BROWN,BROWN |
2 | ||
| 78709 - PANEL SUB-ASSY, SUB SEAT CUSHION | ||||
| 78709-90C04 |
LH51,61,YH50,60..LHD..COM..GEN W/SUB SEAT LEG |
2 | ||
| 78709-95J0006 |
LH61,YH60,61..LHD..15S RH,BROWN,BROWN |
1 | ||
| 78709-95J0106 |
YH50,60,61..LHD..COM..GEN *SAA,*47,W/LEG,BROWN,BROWN |
2 | ||
| 78709-90C03 |
LH61,YH60..LHD..15S RH |
1 | ||
| 78709-90C05 |
LH51,61,YH50,60..LHD..COM LH |
2 | ||
| 78709-95J0206 |
LH51,61,YH50,51,60,61..LHD..COM LH,BROWN,BROWN |
2 | ||
| 78709-95J0106 |
LH51,61,YH50,51,61..LHD..COM..GEN W/SUB SEAT LEG,BROWN,BROWN |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-90C00 |
LH6#,7#,YH51,6#,71..COM LEG |
6 | ||
| 78726-90B00 |
LH50,51,60,61,7#,YH50,51,60,61,63,7#..COM BRACKET |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-90C00 |
LH6#,7#,YH51,6#,71..COM LEG |
6 | ||
| 78726-90B00 |
LH50,51,60,61,7#,YH50,51,60,61,63,7#..COM BRACKET |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-90C00 |
LH6#,7#,YH51,6#,71..COM LEG |
6 | ||
| 78726-90B00 |
LH50,51,60,61,7#,YH50,51,60,61,63,7#..COM BRACKET |
2 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-90C00 |
LH60,61,YH60..LHD..15S RH |
1 | ||
| 78727-90B00 |
LH50,51,60,61,YH50,51,60..LHD..COM LH |
2 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-90C00 |
LH60,61,YH60..LHD..15S RH |
1 | ||
| 78727-90B00 |
LH50,51,60,61,YH50,51,60..LHD..COM LH |
2 | ||
| 78805 - BRACKET SUB-ASSY, SUB SEAT CUSHION, REAR RH | ||||
| 78805-95J00 |
LH60,61,YH60,61..LHD..15S |
1 | ||
| 78837 - PAD, SUB SEAT CUSHION SAFETY | ||||
| 78837-90C01 |
LH6#,7#,YH6#,71..15S |
3 | ||
| 78837 - PAD, SUB SEAT CUSHION SAFETY | ||||
| 78837-90C01 |
LH6#,7#,YH6#,71..15S |
3 | ||
| Common parts | ||||
| 78737-90B00 | ||||
| 90101-10055 | ||||
| 90119-08301 | ||||
| 90119-10037 | ||||
| 90119-10271 | ||||
| 90119-10272 | ||||
| 90202-09039 | ||||
| 90206-12035 | ||||
| 90240-08044 | ||||
| 90249-08092 | ||||
| 90255-08002 | ||||
| 90389-08007 | ||||
| 90389-08037 | ||||
| 90389-10011 | ||||
| 90389-10012 | ||||
| 90468-16012 | ||||
| 90468-18071 | ||||
| 90560-10026 | ||||
| 91651-61020 | ||||
| 91656-60830 | ||||
| 93210-16016 | ||||
| 93540-54010 | ||||
| 93560-13512 | ||||
| 93560-13520 | ||||
| 93560-14012 | ||||
| 93560-14014 | ||||
| 94120-41000 | ||||
| 94542-01400 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7456 | ||||

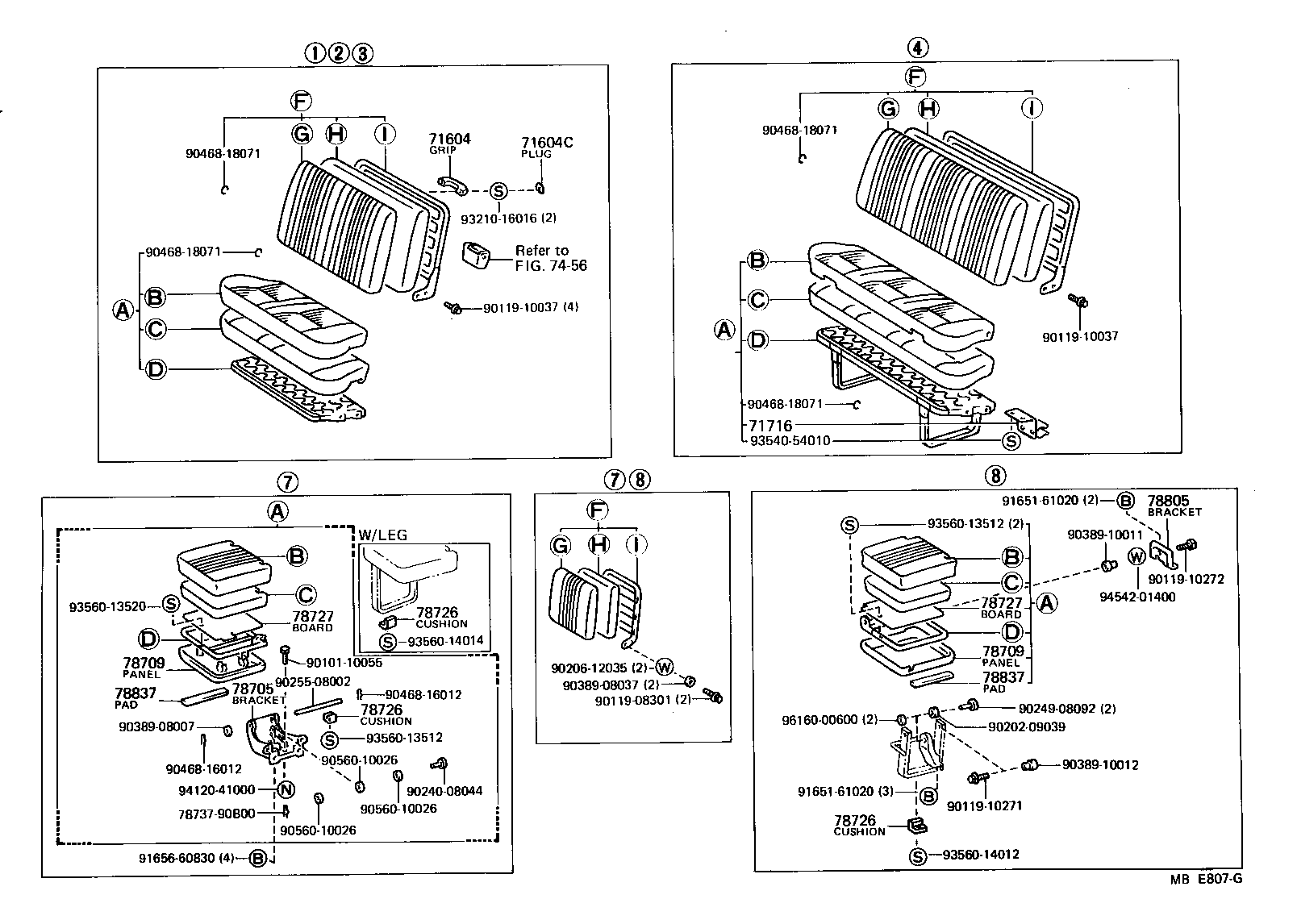

(8605- )LHD..COM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-1002025 |
LH5#,6#,7#,YH50,6#,71..COM BEIGE,BEIGE |
6 | ||
| 74610-95J0106 |
LH51,61,71,YH5#,6#,71..COM BROWN,BROWN |
6 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-95J0106 |
LH51,61,71,YH5#,6#,71..COM BROWN |
24 | ||
| 74617-1401015 |
LH5#,6#,7#,YH50,6#,71..COM BEIGE,BEIGE |
24 | ||
| 71716 - SPRING, JACK HANDLE SUPPORT | ||||
| 58706-90C00 |
LH50,51,60,61,7#,YH50,51,60,61,63,7#..COM |
2 | ||
| 78709 - PANEL SUB-ASSY, SUB SEAT CUSHION | ||||
| 78709-90C04 |
LH51,61,YH50,60..LHD..COM..GEN W/SUB SEAT LEG |
2 | ||
| 78709-95J0006 |
LH61,YH60,61..LHD..15S RH,BROWN,BROWN |
1 | ||
| 78709-95J0106 |
YH50,60,61..LHD..COM..GEN *SAA,*47,W/LEG,BROWN,BROWN |
2 | ||
| 78709-90C03 |
LH61,YH60..LHD..15S RH |
1 | ||
| 78709-90C05 |
LH51,61,YH50,60..LHD..COM LH |
2 | ||
| 78709-95J0206 |
LH51,61,YH50,51,60,61..LHD..COM LH,BROWN,BROWN |
2 | ||
| 78709-95J0106 |
LH51,61,YH50,51,61..LHD..COM..GEN W/SUB SEAT LEG,BROWN,BROWN |
2 | ||
| 78709 - PANEL SUB-ASSY, SUB SEAT CUSHION | ||||
| 78709-90C04 |
LH51,61,YH50,60..LHD..COM..GEN W/SUB SEAT LEG |
2 | ||
| 78709-95J0006 |
LH61,YH60,61..LHD..15S RH,BROWN,BROWN |
1 | ||
| 78709-95J0106 |
YH50,60,61..LHD..COM..GEN *SAA,*47,W/LEG,BROWN,BROWN |
2 | ||
| 78709-90C03 |
LH61,YH60..LHD..15S RH |
1 | ||
| 78709-90C05 |
LH51,61,YH50,60..LHD..COM LH |
2 | ||
| 78709-95J0206 |
LH51,61,YH50,51,60,61..LHD..COM LH,BROWN,BROWN |
2 | ||
| 78709-95J0106 |
LH51,61,YH50,51,61..LHD..COM..GEN W/SUB SEAT LEG,BROWN,BROWN |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-90C00 |
LH6#,7#,YH51,6#,71..COM LEG |
6 | ||
| 78726-90B00 |
LH50,51,60,61,7#,YH50,51,60,61,63,7#..COM BRACKET |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-90C00 |
LH6#,7#,YH51,6#,71..COM LEG |
6 | ||
| 78726-90B00 |
LH50,51,60,61,7#,YH50,51,60,61,63,7#..COM BRACKET |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-90C00 |
LH6#,7#,YH51,6#,71..COM LEG |
6 | ||
| 78726-90B00 |
LH50,51,60,61,7#,YH50,51,60,61,63,7#..COM BRACKET |
2 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-90C00 |
LH60,61,YH60..LHD..15S RH |
1 | ||
| 78727-90B00 |
LH50,51,60,61,YH50,51,60..LHD..COM LH |
2 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-90C00 |
LH60,61,YH60..LHD..15S RH |
1 | ||
| 78727-90B00 |
LH50,51,60,61,YH50,51,60..LHD..COM LH |
2 | ||
| 78837 - PAD, SUB SEAT CUSHION SAFETY | ||||
| 78837-90C01 |
LH6#,7#,YH6#,71..15S |
3 | ||
| 78837 - PAD, SUB SEAT CUSHION SAFETY | ||||
| 78837-90C01 |
LH6#,7#,YH6#,71..15S |
3 | ||
| Common parts | ||||
| 78737-90B00 | ||||
| 90101-10055 | ||||
| 90119-08301 | ||||
| 90119-10037 | ||||
| 90119-10271 | ||||
| 90119-10272 | ||||
| 90202-08039 | ||||
| 90206-12035 | ||||
| 90240-08044 | ||||
| 90249-08092 | ||||
| 90255-08002 | ||||
| 90389-08007 | ||||
| 90389-08037 | ||||
| 90389-10011 | ||||
| 90389-10012 | ||||
| 90468-16012 | ||||
| 90468-18071 | ||||
| 90560-10026 | ||||
| 91651-61020 | ||||
| 91656-60830 | ||||
| 93210-16016 | ||||
| 93540-54010 | ||||
| 93560-13512 | ||||
| 93560-13520 | ||||
| 93560-14012 | ||||
| 93560-14014 | ||||
| 94120-41000 | ||||
| 94542-01400 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7456 | ||||
