LH61LB-QR (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8708- )

Click highlighted areas on diagram

FRONT BLOWER

diagram 87104 87105 87130 87133A 87138 9011906033 9011906088 9161160612
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95J02

LH51,61,71,YH5#,6#,73

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12060

LH51,61,YH51,61..LHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-95J01

LH51,61,YH51,61..LHD

 1
87133A - BRACKET, BLOWER
87133-95J01

LH51,61,YH51,61..LHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-95J00

LH51,61,71,YH5#,6#,73

 1
Common parts
90119-06033
90119-06088
91611-60612

ILLUST NO. 3 OF 3(8708- )LH51,61,YH51,61..COM

Click highlighted areas on diagram

REAR

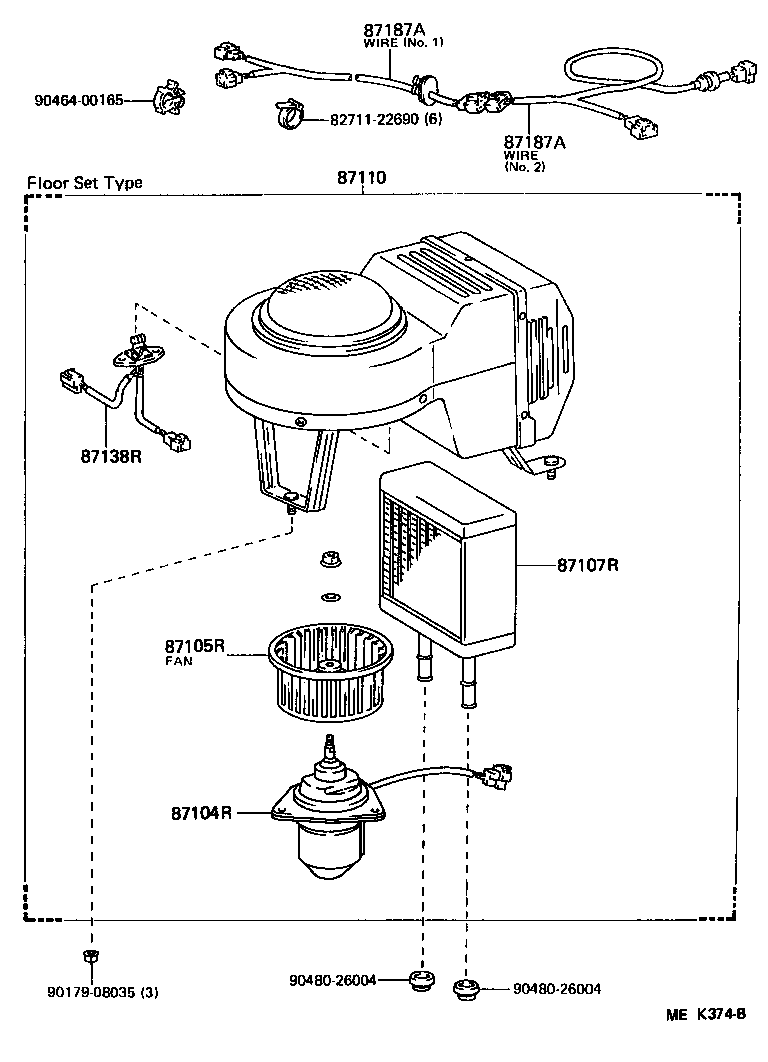

diagram 8271122690 87104R 87105R 87107R 87110 87138R 87187A 87187A 9017908035 9046400165 9048026004 9048026004
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-90B04

LH51,61,YH51,61..COM

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-12040

LH51,61,YH51,61..COM

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-95A02

LH51,61,YH51,61..COM

 1
87110 - HEATER ASSY
87110-95J07

LH51,61,YH51,61..COM

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-95J02

LH51,61,YH51,61..COM

 1
87187A - WIRE, BLOWER MOTOR LEAD
87187-95J04

LH51,61,YH51,61..COM

NO.1

 1
87187-95J05

LH61,YH61..15S

NO.2

 1
87187A - WIRE, BLOWER MOTOR LEAD
87187-95J04

LH51,61,YH51,61..COM

NO.1

 1
87187-95J05

LH61,YH61..15S

NO.2

 1
Common parts
82711-22690
90179-08035
90464-00165
90480-26004

ILLUST NO. 1 OF 3(8708- )

Click highlighted areas on diagram

FRONT RADIATOR

diagram 87107 87150 87174D 87211E 88910 9015950203 9015950203 9017908123 9017908123 9048026003 9095001006 9095001006 9095001127 9095001127
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95J03

YH61..LHD..4H;LH51..LHD..12S;LH51..LHD..VSP;LH61,YH51..LHD

 1
87150 - RADIATOR ASSY, HEATER
87150-95J02

LH51..LHD..12S;LH51..LHD..VSP;LH61,YH51,61..LHD

 1
87150-95J03

YH61..LHD..4H;LH51..LHD..12S;LH51..LHD..VSP;LH61,YH51..LHD

HEAVY DUTY TYPE

 1
87174D - GUIDE, AIR
87174-95J02

LH51..LHD..12S;LH51..LHD..VSP;LH61,YH51,61..LHD

 1
87174-95J03

YH61..LHD..4H;LH51..LHD..12S;LH51..LHD..VSP;LH61,YH51..LHD

HEAVY DUTY HEATER

 1
87211E - DUCT, AIR
87211-95J03

YH61..LHD..4H;LH51..LHD..12S;LH51..LHD..VSP;LH61,YH51..LHD

 1
88910 - VENTILATOR ASSY, BOOST
88910-95J01

LH51,61,YH51,61..LHD

 1
Common parts
90159-50203
90179-08123
90480-26003
90950-01006
90950-01127
