LH61LB-QR (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8908)2L

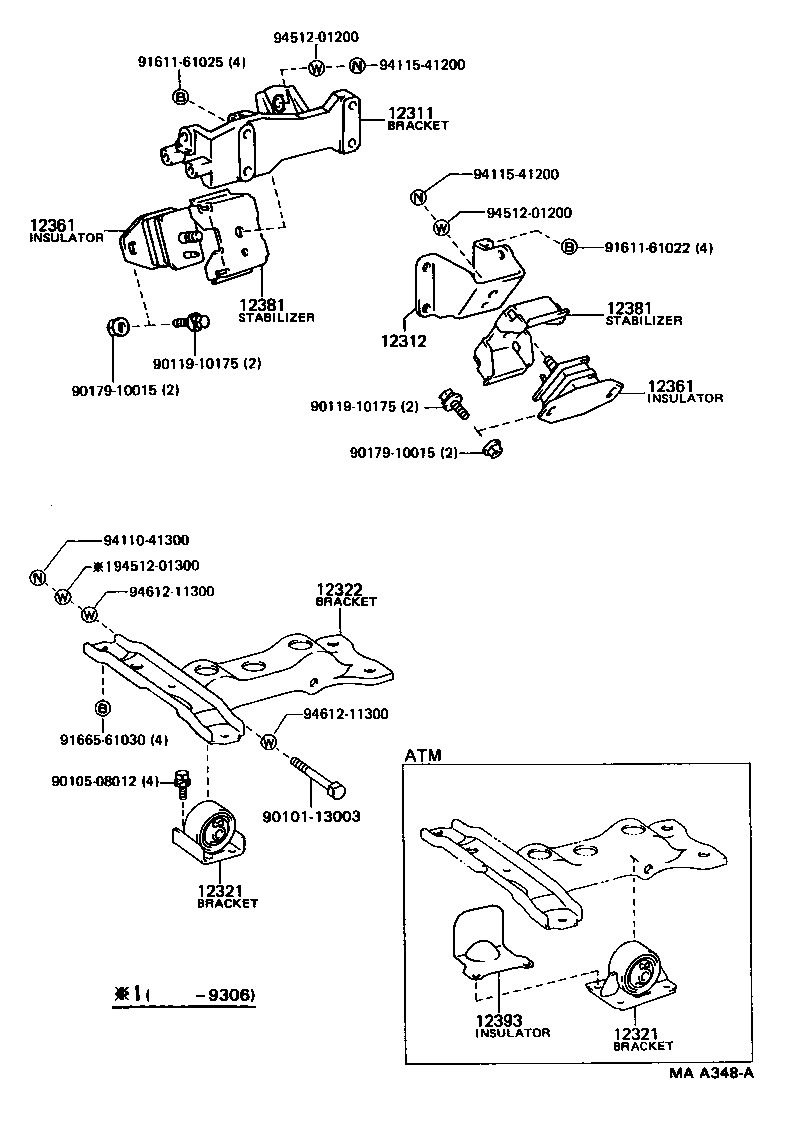

Click highlighted areas on diagram

diagram 12311 12312 12321 12321 12322 12361 12361 12381 12381 12393 9010113003 9010508012 9011910175 9011910175 9017910015 9017910015 9161161022 9161161025 9166561030 9411041300 9411541200 9411541200 9451201200 9451201200 9451201300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54090

2L..LH51,61,71

 1
12312 - BRACKET, ENGINE MOUNTING, FRONT NO.2
12312-54021

2L..LH51,61..GEN

 1
12312-54021

2L..LH51,61,71

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-54020

2L..LH51,61,71..5H

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-54020

2L..LH51,61,71..5H

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54041

2L..LH51,61,71

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54141

2L..LH51,61,71

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54141

2L..LH51,61,71

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54020

2L..LH51,61,71

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54020

2L..LH51,61,71

 2
Common parts
90101-13003
90105-08012
90119-10175
90179-10015
91611-61022
91611-61025
91665-61030
94110-41300
94115-41200
94512-01200
94512-01300
94612-11300
