LH60RV-QRBW (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )YH50,51,53,60,61,63,7#..RHD

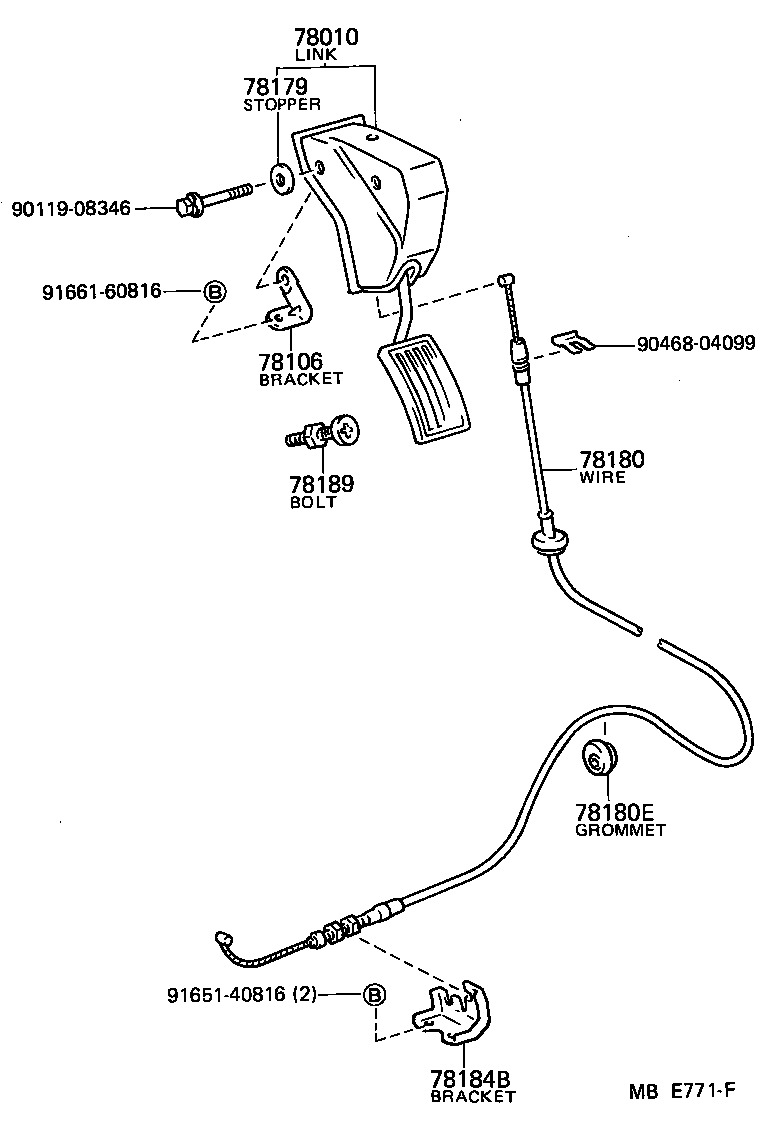

Click highlighted areas on diagram

diagram 78010 78106 78179 78180 78180E 78184B 78189 9011908346 9046804099 9165140816 9166160816
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78202-95J00

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78012-95J00

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD

 1
78179 - STOPPER, ACCELERATOR LINK ARM
78119-95J00

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD

 2
78180 - WIRE ASSY, ACCELERATOR
78150-95J01

LH50,51,60,61,7#..RHD

 1
78150-95J00

YH50,51,53,60,61,63,7#..RHD

 1
78180E - GROMMET (FOR ACCELERATOR WIRE)
90480-26043

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95J00

YH5#,6#,7#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
Common parts
90119-08346
90468-04099
91651-40816
91661-60816

(8212- )LH50,51,60,61,7#..RHD

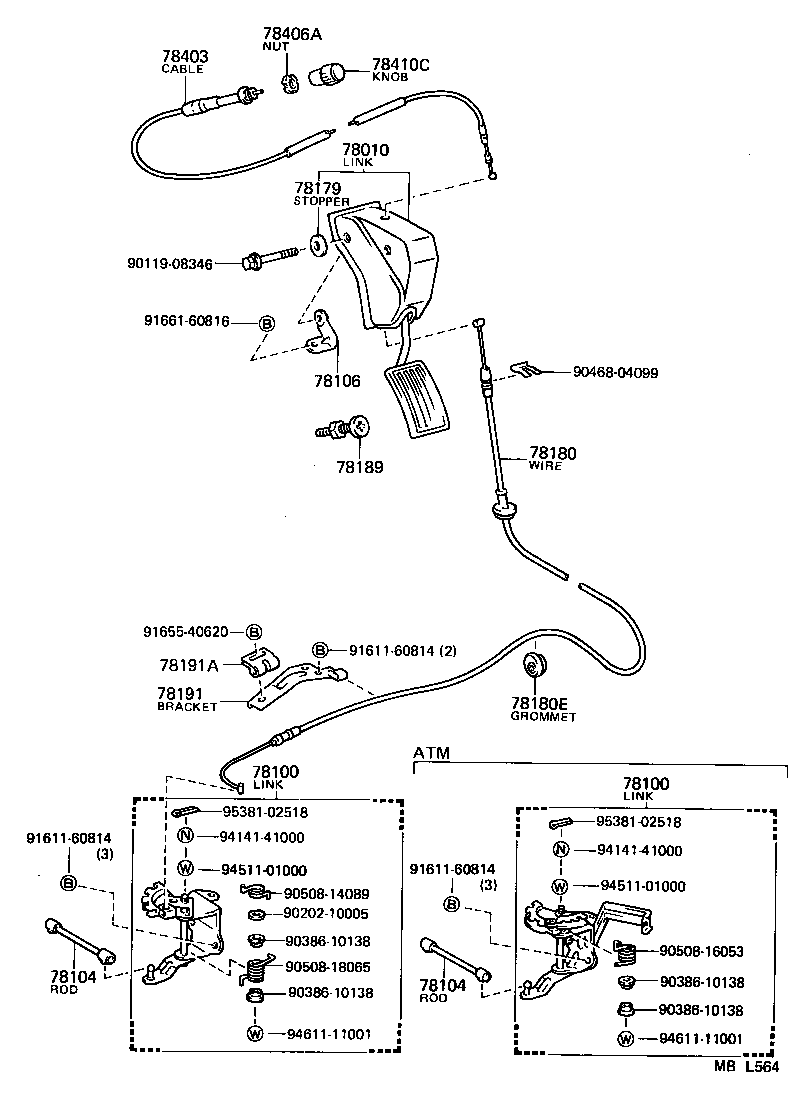

Click highlighted areas on diagram

diagram 78010 78100 78100 78104 78104 78106 78179 78180 78180E 78189 78191 78191A 78403 78406A 78410C 9011908346 9020210005 9038610138 9038610138 9038610138 9038610138 9046804099 9050814089 9050816053 9050818065 9161160814 9161160814 9161160814 9165540620 9166160816 9414141000 9414141000 9451101000 9451101000 9461111001 9461111001 9538102518 9538102518
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78202-95J00

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD

 1
78100 - LINK ASSY, ACCELERATOR
78100-95J04

LH50,60,70..5H

 1
78100 - LINK ASSY, ACCELERATOR
78100-95J04

LH50,60,70..5H

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30120

LH5#,6#,7#

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30120

LH5#,6#,7#

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78012-95J00

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD

 1
78179 - STOPPER, ACCELERATOR LINK ARM
78119-95J00

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD

 2
78180 - WIRE ASSY, ACCELERATOR
78150-95J01

LH50,51,60,61,7#..RHD

 1
78150-95J00

YH50,51,53,60,61,63,7#..RHD

 1
78180E - GROMMET (FOR ACCELERATOR WIRE)
90480-26043

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78109-95J00

LH5#,6#,7#

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
90461-10434

LH5#,6#,7#

 1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78403-95J00

LH5#,6#,7#..RHD

 1
78406A - NUT, HOLDER (FOR THROTTLE BUTTON)
78413-95J00

LH5#,6#,7#

 1
78410C - KNOB, THROTTLE CABLE
78411-22010

LH5#,6#,7#

 1
Common parts
90119-08346
90202-10005
90386-10138
90468-04099
90508-14089
90508-16053
90508-18065
91611-60814
91655-40620
91661-60816
94141-41000
94511-01000
94611-11001
95381-02518
