LH60RV-QRBF (1982)
Toyota Hiace Van,Commuter
(8212-8708)GEN

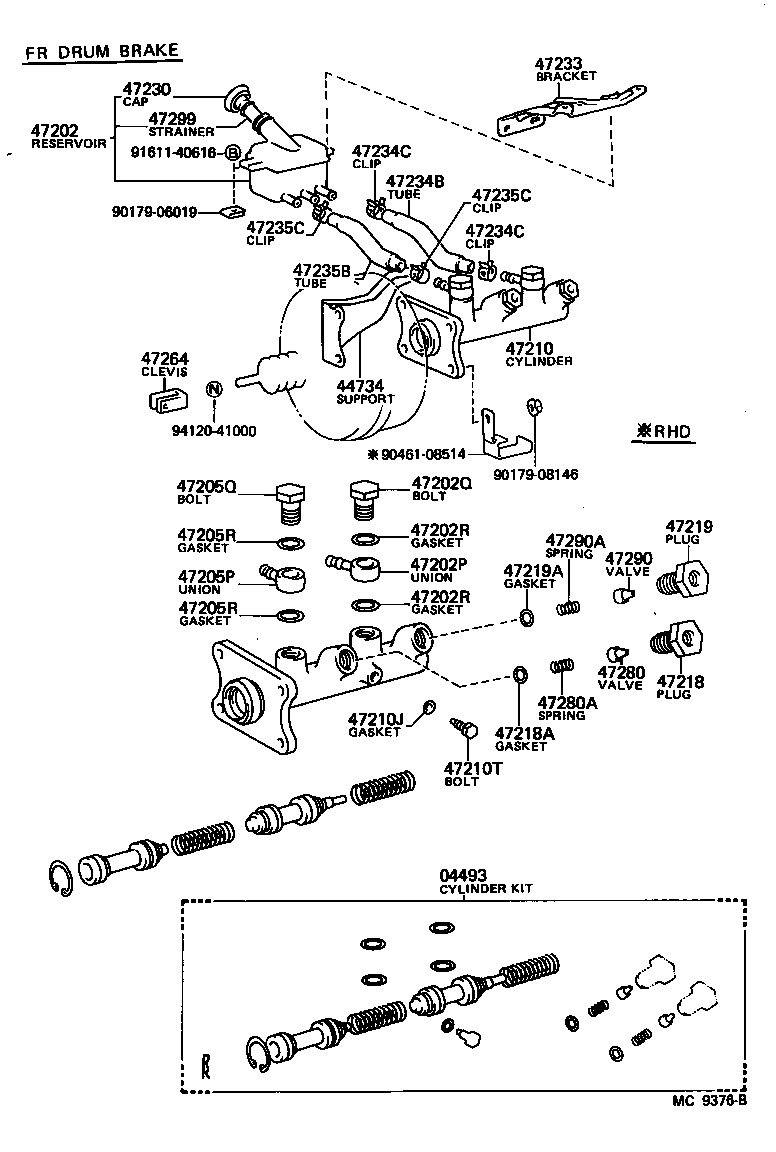

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-26090 |
LH5#,6#,YH50,6#..GEN FR DRUM BRAKE |
1 | ||
| 04493-26080 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S FR DISC BRAKE |
1 | ||
| 44734 - BRACKET, BOOSTER SUPPORT OR ROD SUPPORT | ||||
| 55175-95J00 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-26110 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-13137 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16002 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 47205P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE) | ||||
| 90405-13137 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47205Q - BOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SID | ||||
| 90401-16002 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-26170 |
LH5#,6#,7#,YH5#,6#,71..RHD FR DISC BRAKE |
1 | ||
| 47201-26210 |
LH5#,6#,YH50,6#..RHD..GEN FR DRUM BRAKE |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-26020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-26020 |
LH5#,6#,YH50,6#..GEN FR DRUM BRAKE |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
LH5#,6#,7#,YH5#,6#,71 FR DISC BRAKE |
1 | ||
| 90430-11001 |
LH5#,6#,YH50,6#..GEN FR DRUM BRAKE |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-28010 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-95J00 |
LH50,51,60,61,7#,YH50,51,60,61,71..RHD |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-26080 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 90445-17050 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90504-05001 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-26030 |
LH5#,6#,7#,YH5#,6#,71 FR DISC BRAKE |
1 | ||
| 47281-30020 |
LH5#,6#,YH50,6#..GEN FR DRUM BRAKE |
1 | ||
| 47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE) | ||||
| 90504-05001 |
LH5#,6#,YH50,6#..GEN FR DRUM BRAKE |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-26020 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| Common parts | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 90461-08514 | ||||
| 91611-40616 | ||||
| 94120-41000 | ||||
(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-26090 |
LH5#,6#,YH50,6#..GEN FR DRUM BRAKE |
1 | ||
| 04493-26080 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S FR DISC BRAKE |
1 | ||
| 44734 - BRACKET, BOOSTER SUPPORT OR ROD SUPPORT | ||||
| 55175-95J00 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-26110 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-26110 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-13137 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16002 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 47205P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE) | ||||
| 90405-13137 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47205Q - BOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SID | ||||
| 90401-16002 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-26170 |
LH5#,6#,7#,YH5#,6#,71..RHD FR DISC BRAKE |
1 | ||
| 47201-26210 |
LH5#,6#,YH50,6#..RHD..GEN FR DRUM BRAKE |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-26020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
LH5#,6#,7#,YH5#,6#,71 FR DISC BRAKE |
1 | ||
| 90430-11001 |
LH5#,6#,YH50,6#..GEN FR DRUM BRAKE |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
LH5#,6#,7#,YH5#,6#,71 FR DISC BRAKE |
1 | ||
| 90430-11001 |
LH5#,6#,YH50,6#..GEN FR DRUM BRAKE |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-28010 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-95J00 |
LH50,51,60,61,7#,YH50,51,60,61,71..RHD |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-26080 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 90445-17050 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90504-05001 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-26030 |
LH5#,6#,7#,YH5#,6#,71 FR DISC BRAKE |
1 | ||
| 47281-30020 |
LH5#,6#,YH50,6#..GEN FR DRUM BRAKE |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-26030 |
LH5#,6#,7#,YH5#,6#,71 FR DISC BRAKE |
1 | ||
| 47281-30020 |
LH5#,6#,YH50,6#..GEN FR DRUM BRAKE |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-26020 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| Common parts | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 90461-08514 | ||||
| 91611-40616 | ||||
| 94120-41000 | ||||
