LH60LV-QRJHW (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8508)

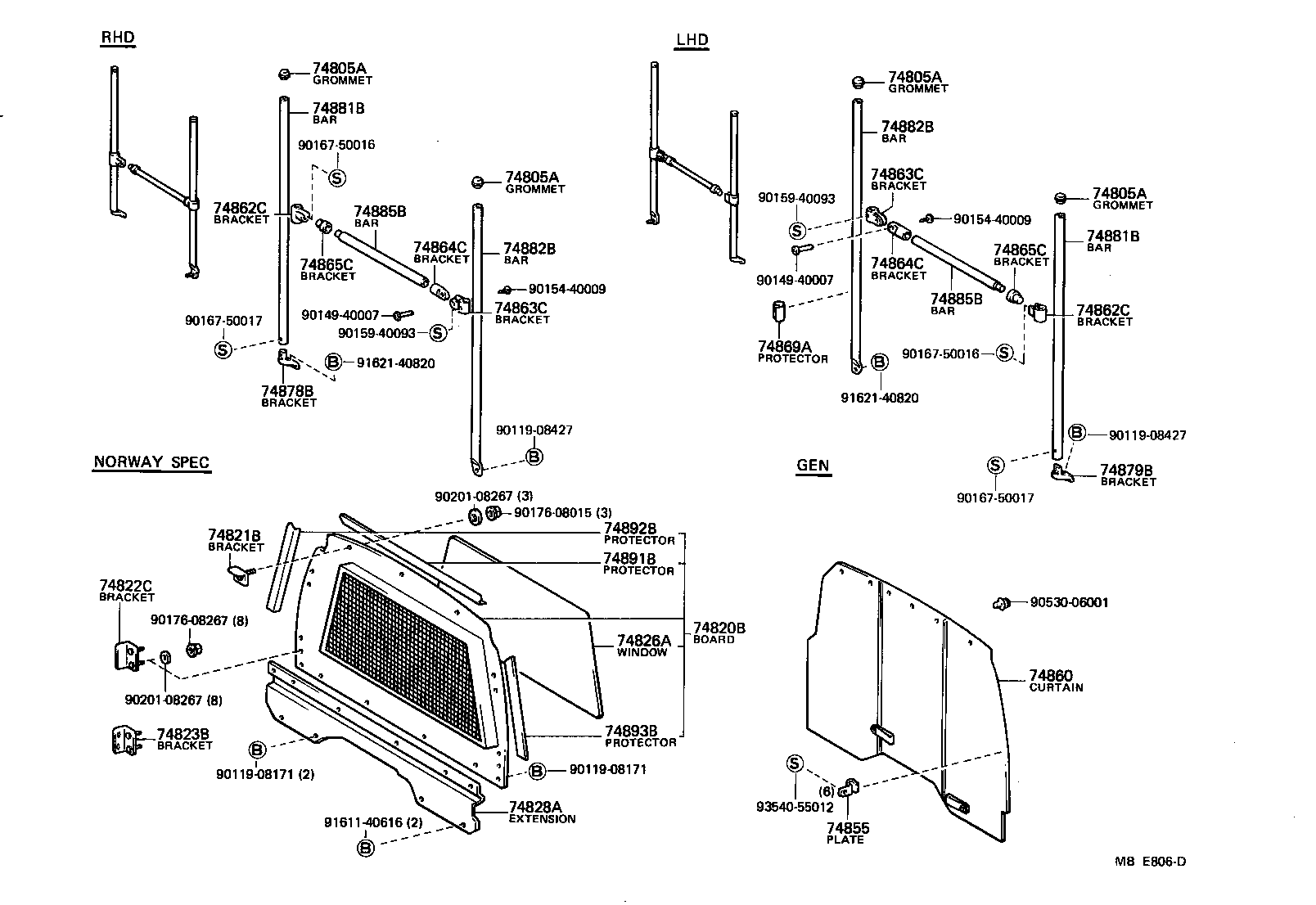

Click highlighted areas on diagram

diagram 74805A 74805A 74805A 74805A 74820B 74821B 74822C 74823B 74826A 74828A 74855 74860 74862C 74862C 74863C 74863C 74864C 74864C 74865C 74865C 74869A 74878B 74879B 74881B 74881B 74882B 74882B 74885B 74885B 74891B 74892B 74893B 9011908171 9011908171 9011908427 9011908427 9014940007 9014940007 9015440009 9015440009 9015940093 9015940093 9016750016 9016750016 9016750017 9016750017 9017608015 9017608267 9020108267 9020108267 9053006001 9161140616 9162140820 9162140820 9354055012
Part # Description Qty Price
74820B - BOARD ASSY, SEPARATOR
74820-95J00

LH50,60,YH50,60..LHD..V..EUR

NORWAY SPEC

 1
74821B - BRACKET, SEPARATOR BOARD, UPR
74821-95J00

LH5#,6#,YH5#,6#..LHD..V..EUR

NORWAY SPEC

 3
74822C - BRACKET, SEPARATOR BOARD, SIDE
74822-95J00

LH5#,6#,YH5#,6#..LHD..V

NORWAY SPEC

 3
74823B - BRACKET, SEPARATOR BOARD SIDE, LOWER
74823-95J00

LH5#,6#,YH5#,6#..LHD..V..EUR

NORWAY SPEC

 1
74826A - WINDOW, SEPARATOR
74826-95J00

LH5#,6#,YH5#,6#..LHD..V..EUR

NORWAY SPEC

 1
74828A - EXTENSION, SEPARATOR BOARD
74828-95J00

LH50,60,YH50,60..LHD..V..EUR

NORWAY SPEC

 1
74891B - PROTECTOR, SEPARATOR BOARD, NO.1
74891-95J01

LH5#,6#,YH5#,6#..LHD..V..EUR

NORWAY SPEC

 1
74892B - PROTECTOR, SEPARATOR BOARD, NO.2
74892-95J01

LH5#,6#,YH5#,6#..LHD..V..EUR

NORWAY SPEC

 1
74893B - PROTECTOR, SEPARATOR BOARD, NO.3
74893-95J00

LH5#,6#,YH5#,6#..LHD..V..EUR

NORWAY SPEC

 1
Common parts
90119-08171
90119-08427
90149-40007
90154-40009
90159-40093
90167-50016
90167-50017
90176-08015
90176-08267
90201-08267
90530-06001
91611-40616
91621-40820
93540-55012
