LH60LV-QRJHW (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )MTM

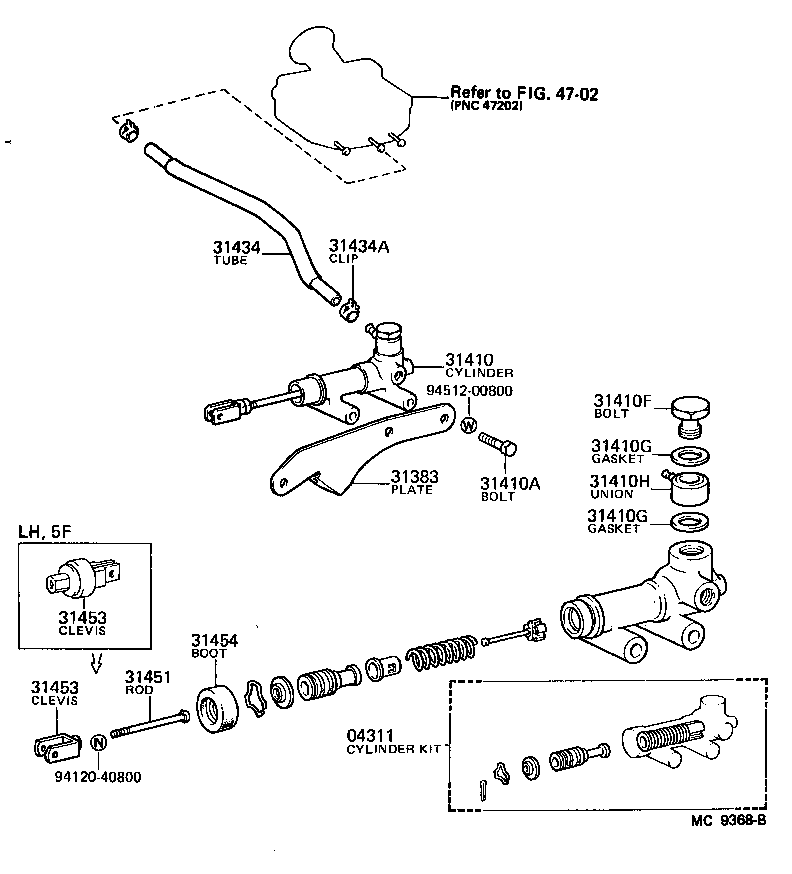

Click highlighted areas on diagram

diagram 04311 31383 31410 31410A 31410F 31410G 31410G 31410H 31434 31434A 31451 31453 31453 31454 4702 9412040800 9451200800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-14011

YH5#,6#,7#..MTM

 1
04311-30080

LH5#,6#,7#..MTM

 1
31383 - PLATE, PEDAL SUPPORT SHAFT SET
55105-95J00

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-26090

YH5#,6#,7#..MTM

 1
31420-26101

LH5#,6#,7#..MTM

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
91121-40865

LH5#,6#,7#,YH5#,6#,71..MTM

 2
31410F - BOLT, UNION(FOR CLUTCH MASTER CYLINDER)
90401-16078

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION)
90430-16242

LH5#,6#,7#,YH5#,6#,7#..MTM

 2
31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION)
90430-16242

LH5#,6#,7#,YH5#,6#,7#..MTM

 2
31410H - UNION(FOR CLUTCH MASTER CYLINDER)
90405-10125

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-26110

LH50,51,60,61,YH50,51,60,61..LHD..MTM

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

LH5#,6#,7#,YH5#,6#,7#..MTM

 2
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-22050

YH5#,6#,7#..MTM

 1
31451-30060

LH5#,6#,7#..MTM

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

YH5#,6#,7#..MTM

 1
31404-30041

LH5#,6#,7#..MTM

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

YH5#,6#,7#..MTM

 1
31404-30041

LH5#,6#,7#..MTM

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
Common parts
94120-40800
94512-00800
Linked diagrams
4702
