LH60LV-QRFEW (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )4H,4HC,5H

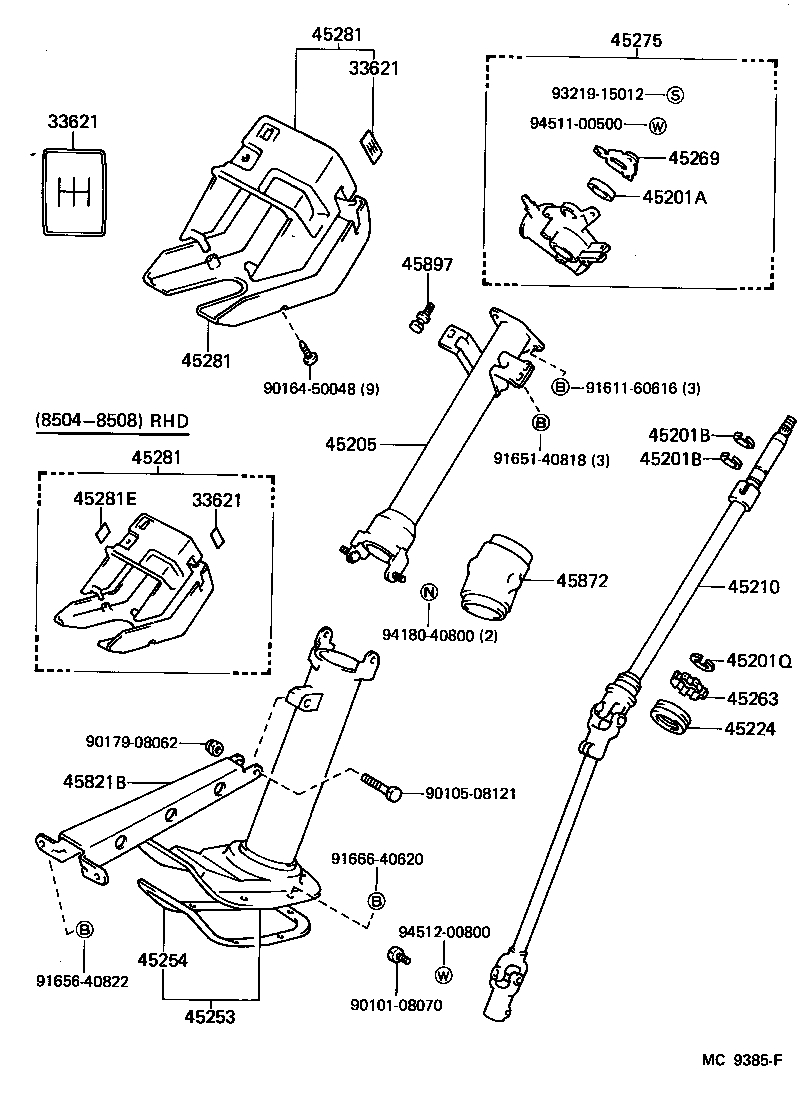

Click highlighted areas on diagram

diagram 33621 33621 33621 45201A 45201B 45201B 45201Q 45205 45210 45224 45253 45254 45263 45269 45275 45281 45281 45281 45281E 45821B 45872 45897 9010108070 9010508121 9016450048 9017908062 9161160616 9165140818 9165640822 9166640620 9321915012 9418040800 9451100500 9451200800
Part # Description Qty Price
33621 - PLATE, CONTROL LEVER CAUTION
33621-36030

LH50,51,60,61,YH50,51,60,61..LHD..5H

 1
33621 - PLATE, CONTROL LEVER CAUTION
33621-36030

LH50,51,60,61,YH50,51,60,61..LHD..5H

 1
33621 - PLATE, CONTROL LEVER CAUTION
33621-36030

LH50,51,60,61,YH50,51,60,61..LHD..5H

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

LH5#,6#,7#,YH5#,6#,7#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

LH5#,6#,7#,YH5#,6#,7#

T=1.20,LWR

 1
90520-17269

LH5#,6#,7#,YH5#,6#,7#

T=1.20,UPR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

LH5#,6#,7#,YH5#,6#,7#

T=1.20,LWR

 1
90520-17269

LH5#,6#,7#,YH5#,6#,7#

T=1.20,UPR

 1
45201Q - RING(FOR STEERING COLUMN RING)
96152-00300

LH5#,6#,7#,YH5#,6#,7#

LWR

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-26090

LH5#,6#,YH5#,6#..LHD

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-26010

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#

 1
45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)
45225-26010

LH5#,6#,7#,YH5#,6#,7#

L=16

 1
45253 - COVER, STEERING COLUMN HOLE
45204-26030

LH5#,6#,YH5#,6#..LHD

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-26050

LH5#,6#,7#,YH5#,6#,7#

 1
45263 - RING, STEERING COLUMN, NO.1
45263-26010

LH5#,6#,7#,YH5#,6#,71

 1
45269 - RETAINER, MAIN SHAFT BEARING
45269-35010

LH5#,6#,7#,YH5#,6#,7#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-26090

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
45281 - HOUSING, STEERING COLUMN
45023-2617005

LH5#,6#,YH5#,6#..LHD..5H

UPR,BEIGE,BEIGE

 1
45287-2610005

LH50,6#,YH5#,6#..LHD

LWR,BEIGE,BEIGE

 1
45281 - HOUSING, STEERING COLUMN
45023-2617005

LH5#,6#,YH5#,6#..LHD..5H

UPR,BEIGE,BEIGE

 1
45287-2610005

LH50,6#,YH5#,6#..LHD

LWR,BEIGE,BEIGE

 1
45281 - HOUSING, STEERING COLUMN
45023-2617005

LH5#,6#,YH5#,6#..LHD..5H

UPR,BEIGE,BEIGE

 1
45287-2610005

LH50,6#,YH5#,6#..LHD

LWR,BEIGE,BEIGE

 1
45872 - COVER, STEERING COLUMN TUBE
45872-26010

LH5#,6#,7#,YH5#,6#,7#

 1
45897 - BOLT, STEERING LOCK SET
45897-12030

LH5#,6#,YH5#,6#..EUR;LH5#,6#,YH50,60..LHD..GEN

 1
Common parts
90101-08070
90105-08121
90164-50048
90179-08062
91611-60616
91651-40818
91656-40822
91666-40620
93219-15012
94180-40800
94511-00500
94512-00800
