LH60LV-QRF (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

Click highlighted areas on diagram

diagram 55906A 55907A 55908A 55909A 55910 55915 5593324010 55937 55937 5593995703 8302 8401 87284 9018305103 9048013013 9095001112 9356755018
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95J00

LH5#,6#,YH5#,6#,7#

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95J00

LH5#,6#,YH5#,6#,7#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95J08

LH50,51,60,61,YH50,51,60,61..LHD..GEN

FR,W/*BV & COOLER

 1
55910-95J04

YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50,60..VSG..(4HC,5H)..(03S,09S)

RR

 1
55910-95J03

LH50,51,60,61,YH50,51,60,61..LHD..GEN

FR,W/*BV

 1
55910-95J01

LH5#,6#,YH50,51,56,60,61,66..LHD

FR,W/HEATER

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-95703

YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50,60..VSG..(4HC,5H)..(03S,09S)

RR HEATER

 1
55905-12070

LH50,60,70,YH5#,6#,71

FR HEATER

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-95703

YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50,60..VSG..(4HC,5H)..(03S,09S)

RR HEATER

 1
55905-12070

LH50,60,70,YH5#,6#,71

FR HEATER

 4
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-95J00

LH50,51,60,61,YH50,51,60,61..GEN

W/COOLER & *BV

 1
Common parts
55933-24010
55939-95703
90183-05103
90480-13013
90950-01112
93567-55018
Linked diagrams
8302
8401

(8212- )

Click highlighted areas on diagram

diagram 55907B 55910 55913A 55937 55939 55944 6324995700 8302 8401 8401 8401 9056011014 9356614512 9356614512 9356614512
Part # Description Qty Price
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95J08

LH50,51,60,61,YH50,51,60,61..LHD..GEN

FR,W/*BV & COOLER

 1
55910-95J04

YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50,60..VSG..(4HC,5H)..(03S,09S)

RR

 1
55910-95J03

LH50,51,60,61,YH50,51,60,61..LHD..GEN

FR,W/*BV

 1
55910-95J01

LH5#,6#,YH50,51,56,60,61,66..LHD

FR,W/HEATER

 1
55913A - PLATE, HEATER CONTROL LEVER GUIDE
55913-95J00

YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50,60..VSG..(4HC,5H)..(03S,09S)

RR HEATER

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-95703

YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50,60..VSG..(4HC,5H)..(03S,09S)

RR HEATER

 1
55905-12070

LH50,60,70,YH5#,6#,71

FR HEATER

 4
55944 - PLATE, HEATER CONTROL SUPPORT
55944-95J00

YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50,60..VSG..(4HC,5H)..(03S,09S)

RR HEATER

 3
Common parts
63249-95700
90560-11014
93566-14512
Linked diagrams
8302
8401

(8212- )LHD

Click highlighted areas on diagram

diagram 5870395J00 87195 87195 87201 87211 87211A 87214 87215 87219 9009300609 9009900930 9015950134 9015950184 9015950203 9015960259 9015960259 9015960259 9018305103 9018906084 9018906084 9048026003 9048026003 9338116016 9338216016 9356755016 9356755018
Part # Description Qty Price
87195 - COVER, HOLE
88899-95J06

LH50,51,60,61,YH50,51,60,61..LHD..GEN

W/COOLER

 1
87195-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
87195 - COVER, HOLE
88899-95J06

LH50,51,60,61,YH50,51,60,61..LHD..GEN

W/COOLER

 1
87195-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
55086-95J01

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
87211 - DUCT, AIR, NO.1
87211-95J01

LH5#,6#,YH50,60..LHD..GEN

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-95J01

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55084-95J00

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
Common parts
58703-95J00
90093-00609
90099-00930
90159-50134
90159-50184
90159-50203
90159-60259
90183-05103
90189-06084
90480-26003
93381-16016
93382-16016
93567-55016
93567-55018

(8212- )

Click highlighted areas on diagram

diagram 87212 87213 87214D 88571A 88571A 88571B 9018305020 9018305020 9018305020 9354015016 9354015016 9354015016 9356015010
Part # Description Qty Price
87212 - DUCT, AIR, REAR NO.1
87212-95J01

YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50,60..VSG..(4HC,5H)..(03S,09S)

 1
87213 - DUCT, AIR, REAR NO.2
87213-95J01

YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50,60..VSG..(4HC,5H)..(03S,09S)

 1
87214D - DUCT, AIR, REAR NO.3
87214-95J01

YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50,60..VSG..(4HC,5H)..(03S,09S)

 1
Common parts
90183-05020
93540-15016
93560-15010

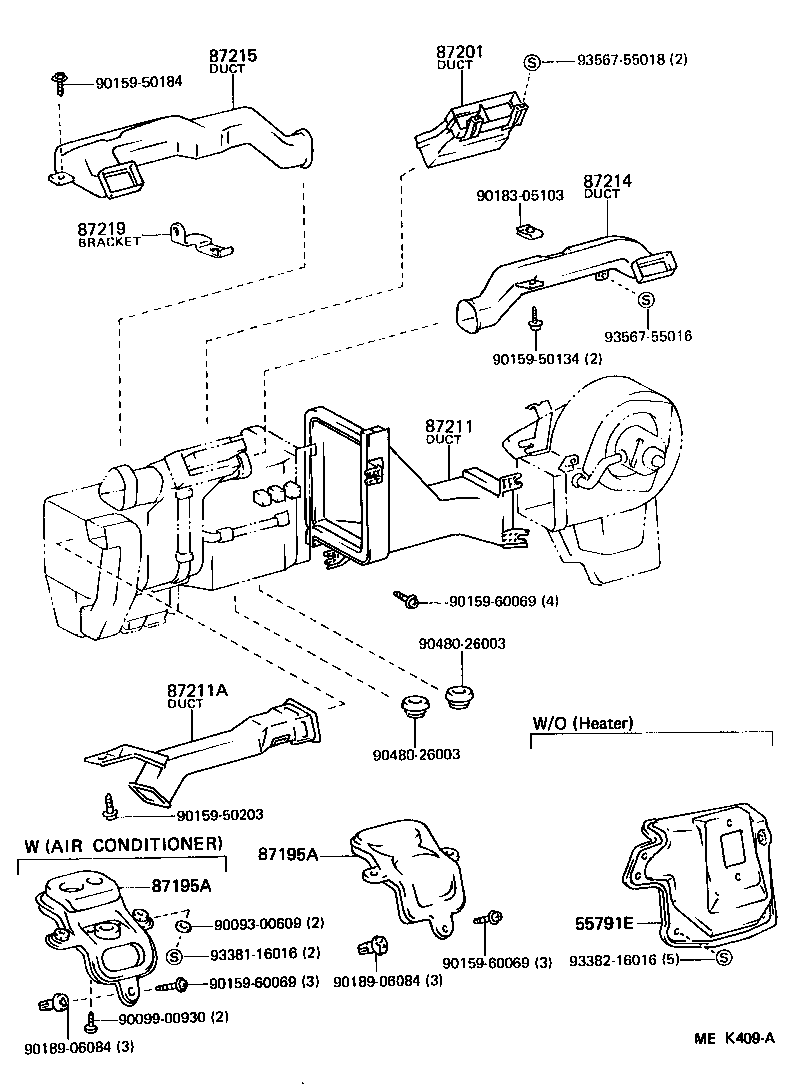

ILLUST NO. 3 OF 4(8708-8908)LHD

Click highlighted areas on diagram

FRONT DUCT

diagram 55791E 87195A 87195A 87201 87211 87211A 87214 87215 87219 9009300609 9009900930 9015950134 9015950184 9015950203 9015960069 9015960069 9015960069 9018305103 9018906084 9018906084 9048026003 9048026003 9338116016 9338216016 9356755016 9356755018
Part # Description Qty Price
Common parts
90093-00609
90099-00930
90159-50134
90159-50184
90159-50203
90159-60069
90183-05103
90189-06084
90480-26003
93381-16016
93382-16016
93567-55016
93567-55018
