LH60LV-QRF (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8508)

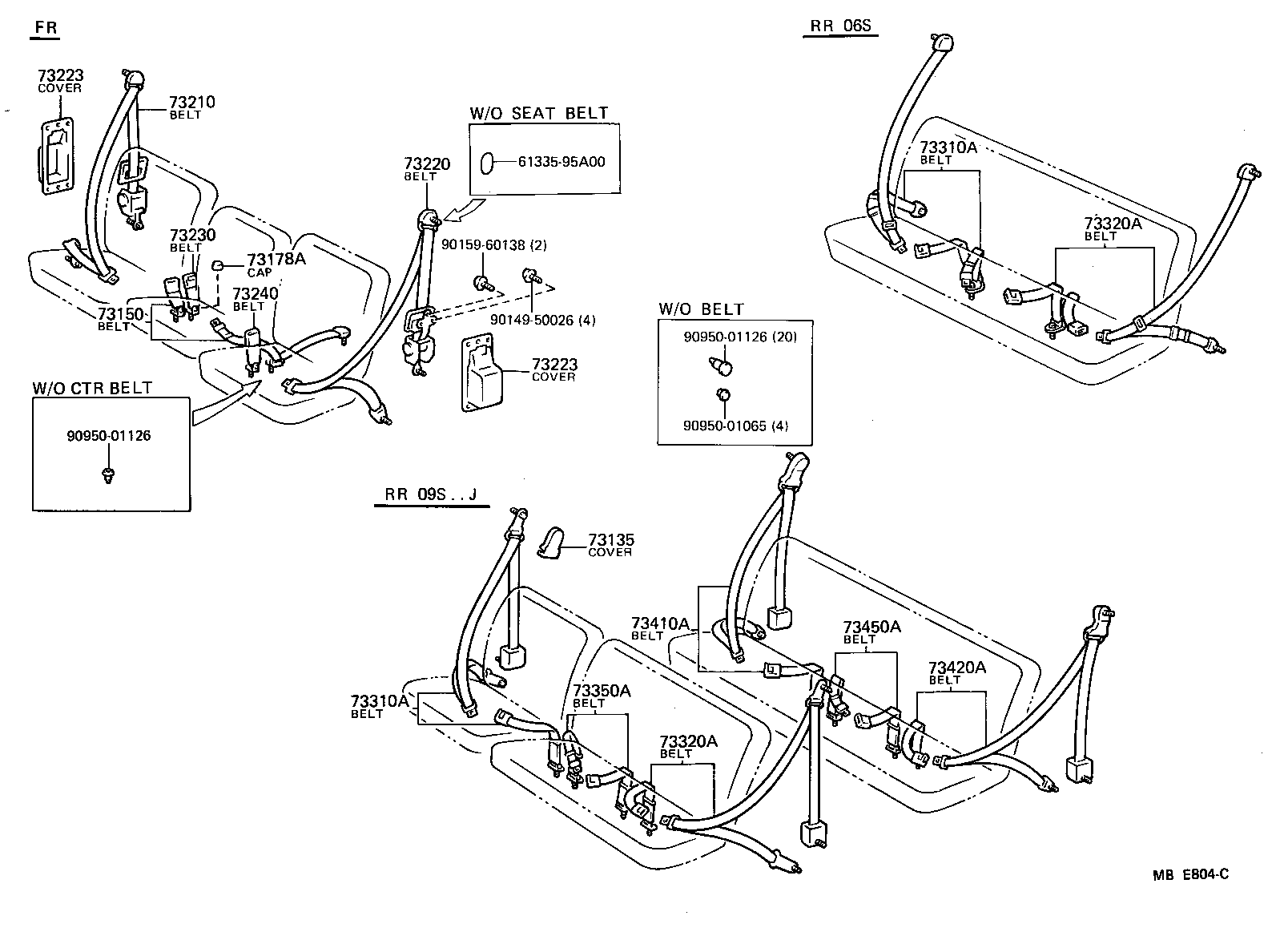

Click highlighted areas on diagram

diagram 6133595A00 73135 73150 73178A 73210 73220 73223 73223 73230 73240 73310A 73310A 73320A 73320A 73350A 73410A 73420A 73450A 9014950026 9015960138 9095001065 9095001126 9095001126
Part # Description Qty Price
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-95J02

YH50,60..LHD..GEN

*SAA

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95J01

YH50,60..LHD..GEN

*SAA

 1
73210-95J0005

LH50,60,YH50,60..GEN

BEIGE,BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-95J01

YH50,60..LHD..GEN

*SAA

 1
73210-95J0005

LH50,60,YH50,60..GEN

BEIGE,BEIGE

 1
73223 - COVER, SEAT BELT RETRACTOR
73223-95J00

LH5#,6#,7#,YH5#,6#,7#

 2
73223 - COVER, SEAT BELT RETRACTOR
73223-95J00

LH5#,6#,7#,YH5#,6#,7#

 2
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95J01

LH50,60,YH50,60..LHD..GEN

 1
73230-95J03

YH50,60..LHD..GEN

*SAA

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95J03

YH50,60..LHD..GEN

*SAA

 1
73240-95J05

YH50,60..LHD..GEN

*SAA,OMAN SPEC

 1
73240-95J01

LH50,60,YH50,60..LHD..GEN

 1
Common parts
61335-95A00
90149-50026
90159-60138
90950-01065
90950-01126
