LH60LV-QRF (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8401)LH50,60,YH50,6# ; (8401- )YH53..03S ; (8401- )LH5#,6#,YH50,51,56,6

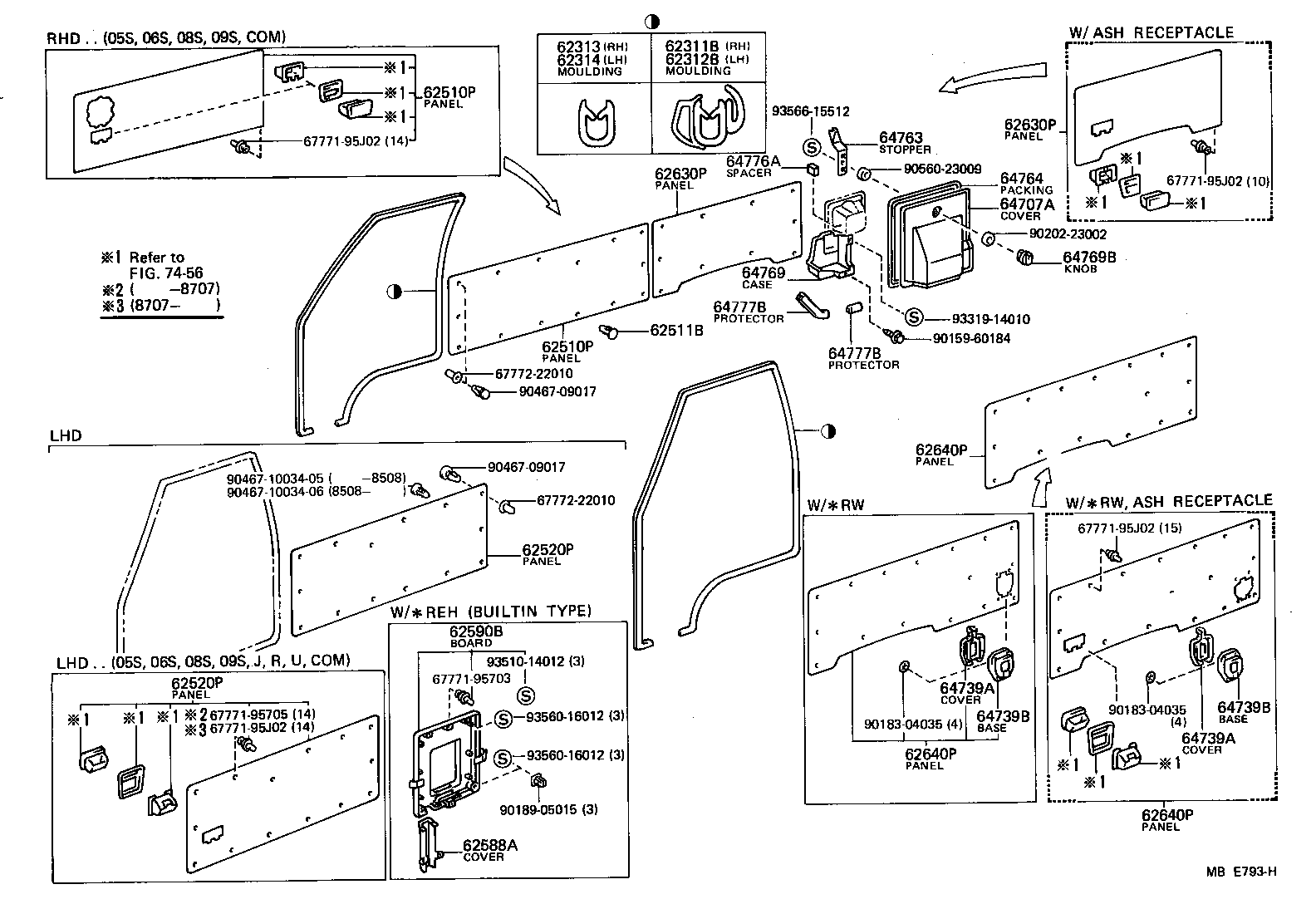

Click highlighted areas on diagram

diagram 62311B 62312B 62313 62314 62510P 62510P 62511B 62520P 62520P 62588A 62590B 62630P 62630P 62640P 62640P 62640P 64707A 64739A 64739A 64739B 64739B 64763 64764 64769 64769B 64776A 64777B 64777B 6777195703 6777195705 6777195J02 6777195J02 6777195J02 6777195J02 6777222010 6777222010 7456 9015960184 9018304035 9018304035 9018905015 9020223002 9046709017 9046709017 904671003405 904671003406 9056023009 9331914010 9351014012 9356016012 9356016012 9356615512
Part # Description Qty Price
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-95J0005

LH5#,6#,7#,YH5#,6#,71

BEIGE,BEIGE

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-95J0005

LH5#,6#,7#,YH5#,6#,71

BEIGE,BEIGE

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95J05

YH66..N1;YH61..V..4H;LH61,YH61..5H..R;YH61..4HC..(ARL,EUR);LH6#,YH60,63..02S,03S,06S;YH61..5H..(03S,06S)..(ARL,EUR)

W/O ASH RECEPTACLE

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95J05

YH66..N1;YH61..V..4H;LH61,YH61..5H..R;YH61..4HC..(ARL,EUR);LH6#,YH60,63..02S,03S,06S;YH61..5H..(03S,06S)..(ARL,EUR)

W/O ASH RECEPTACLE

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95J06

YH66..N1;YH61..V..4H;LH61,YH61..5H..R;YH61..4HC..(ARL,EUR);LH6#,YH60,63..02S,03S,06S;YH61..5H..(03S,06S)..(ARL,EUR)

W/O ASH RECEPTACLE

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95J06

YH66..N1;YH61..V..4H;LH61,YH61..5H..R;YH61..4HC..(ARL,EUR);LH6#,YH60,63..02S,03S,06S;YH61..5H..(03S,06S)..(ARL,EUR)

W/O ASH RECEPTACLE

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95J06

YH66..N1;YH61..V..4H;LH61,YH61..5H..R;YH61..4HC..(ARL,EUR);LH6#,YH60,63..02S,03S,06S;YH61..5H..(03S,06S)..(ARL,EUR)

W/O ASH RECEPTACLE

 1
64707A - COVER SUB-ASSY, QUARTER TRIM TOOL
64707-95J01

LH5#,6#,7#,YH5#,6#,7#

 1
64763 - STOPPER, TOOL COVER
64763-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
64764 - PACKING, TOOL COVER
64764-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
64769 - CASE SUB-ASSY, TOOL BAG
64709-95J01

LH60,61,7#,YH60,61,71

 1
64769B - KNOB, TOOL COVER
64769-1301001

LH5#,6#,7#,YH5#,6#,7#

BLACK,BLACK

 1
64776A - SPACER, TOOL BAG CASE
64776-95J00

LH50,51,60,61,7#,YH50,51,60,61,71

 1
64777B - PROTECTOR, QUARTER, INNER
58426-95701

LH50,51,60,61,7#,YH50,51,60,61,71

L=40

 1
58426-95700

LH50,51,60,61,7#,YH50,51,60,61,71

L=170

 1
64777B - PROTECTOR, QUARTER, INNER
58426-95701

LH50,51,60,61,7#,YH50,51,60,61,71

L=40

 1
58426-95700

LH50,51,60,61,7#,YH50,51,60,61,71

L=170

 1
Common parts
67771-95703
67771-95705
67771-95J02
67772-22010
90159-60184
90183-04035
90189-05015
90202-23002
90467-09017
90467-1003405
90467-1003406
90560-23009
93319-14010
93510-14012
93560-16012
93566-15512
Linked diagrams
7456
