LH60LV-QRBF (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )YH5#,6#,7#..MTM

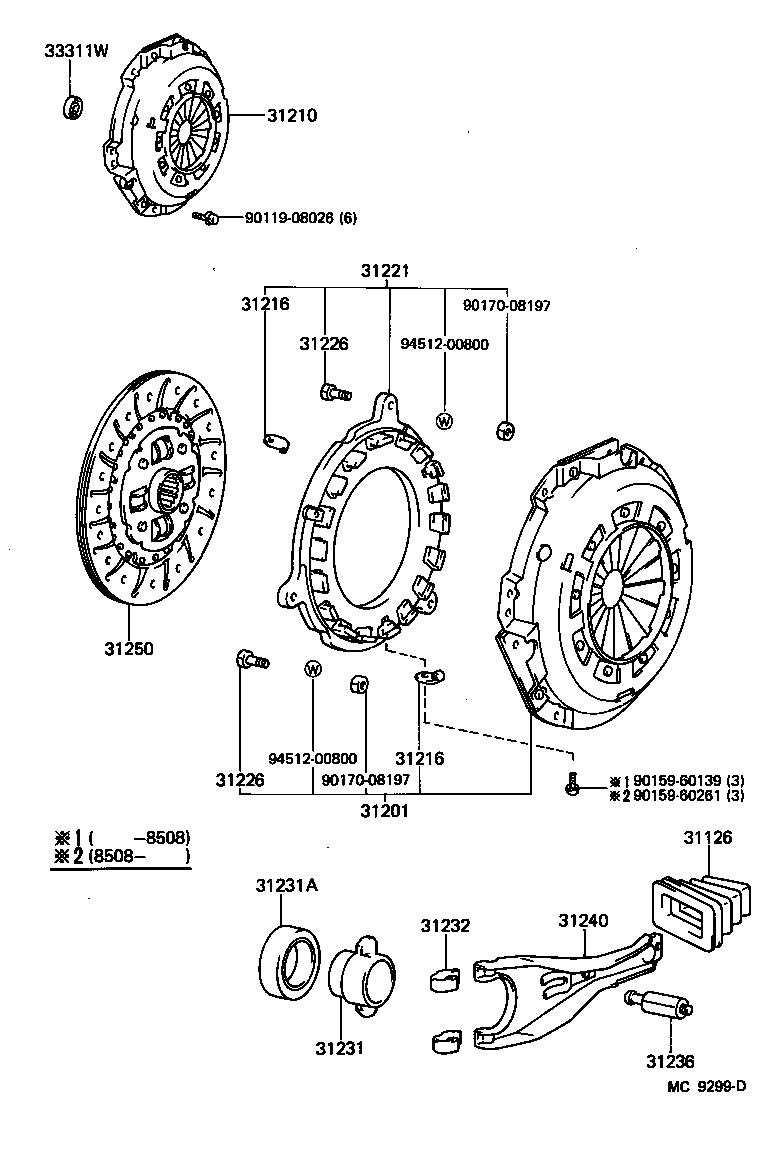

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31226 31226 31231 31231A 31232 31236 31240 31250 33311W 9011908026 9015960139 9015960261 9017008197 9017008197 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

YH5#,6#,71..MTM

 1
31126-25021

LH50,60,70..5H

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29085

LH50,60,70,YH50,60..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-36029

LH50,60,70,YH50,60..MTM

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LH50,51,60,61,7#,YH50,60..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LH50,51,60,61,7#,YH50,60..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-39056

LH50,51,60,61,7#,YH50,60..MTM

 1
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

LH50,60,70,YH50,60..MTM

 6
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

LH50,60,70,YH50,60..MTM

 6
31231 - HUB, CLUTCH RELEASE BEARING
31231-26010

YH5#,6#,71..MTM

 1
31231-30080

LH50,60,70..5H

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

LH51,61,71,YH50,51,53,60,61,63,7#..MTM

 2
31232-30020

LH50,60,70..5H

 2
31236 - BALL, RELEASE FORK
31236-35020

YH5#,6#,71..MTM

 1
31236-25010

LH50,60,70..5H

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20090

YH5#,6#,71..MTM

 1
31204-26010

LH50,60,70..5H

 1
31250 - DISC ASSY, CLUTCH
31250-20130

YH50,60..MTM

 1
31250-26050

LH5#,6#,7#..5H

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
Common parts
90119-08026
90159-60139
90159-60261
90170-08197
94512-00800

(8212-8708)LH5#,6#,7#..MTM

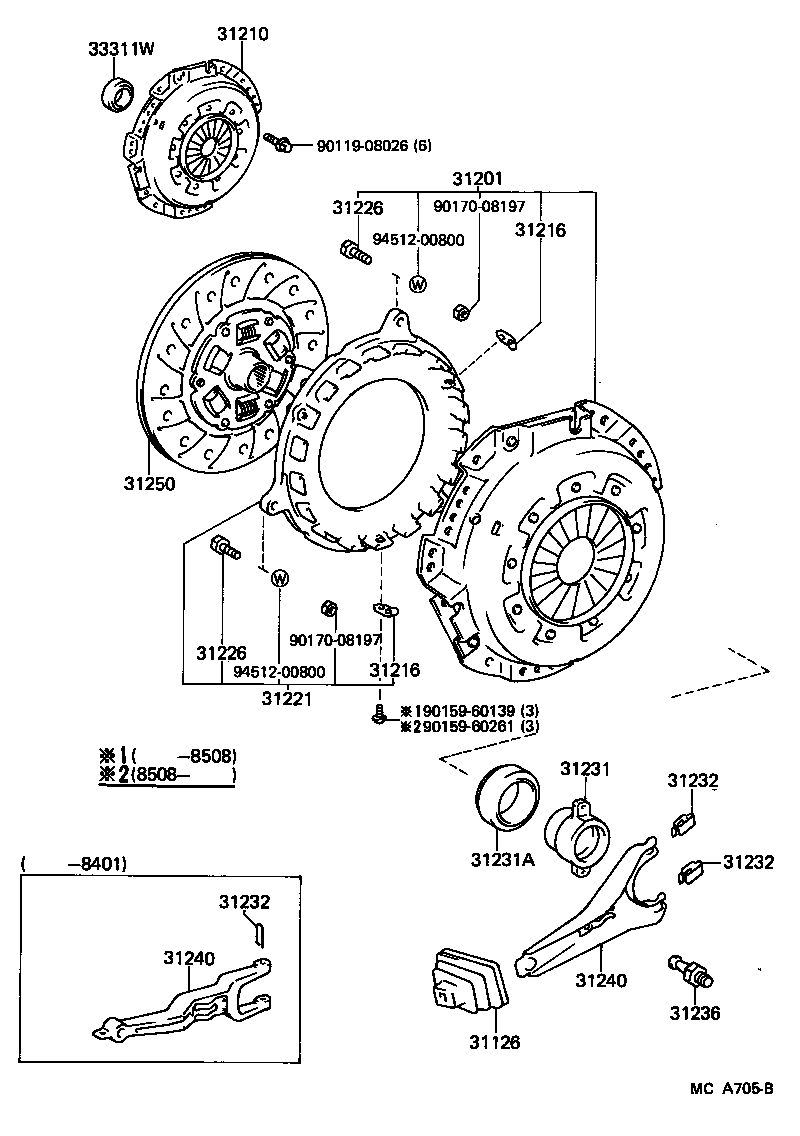

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31226 31226 31231 31231A 31232 31232 31232 31236 31240 31240 31250 33311W 9011908026 9015960139 9015960261 9017008197 9017008197 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

YH5#,6#,71..MTM

 1
31126-25021

LH50,60,70..5H

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29085

LH50,60,70,YH50,60..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-36029

LH50,60,70,YH50,60..MTM

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LH50,51,60,61,7#,YH50,60..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LH50,51,60,61,7#,YH50,60..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-39056

LH50,51,60,61,7#,YH50,60..MTM

 1
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

LH50,60,70,YH50,60..MTM

 6
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

LH50,60,70,YH50,60..MTM

 6
31231 - HUB, CLUTCH RELEASE BEARING
31231-26010

YH5#,6#,71..MTM

 1
31231-30080

LH50,60,70..5H

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

LH51,61,71,YH50,51,53,60,61,63,7#..MTM

 2
31232-30020

LH50,60,70..5H

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

LH51,61,71,YH50,51,53,60,61,63,7#..MTM

 2
31232-30020

LH50,60,70..5H

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

LH51,61,71,YH50,51,53,60,61,63,7#..MTM

 2
31232-30020

LH50,60,70..5H

 2
31236 - BALL, RELEASE FORK
31236-35020

YH5#,6#,71..MTM

 1
31236-25010

LH50,60,70..5H

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20090

YH5#,6#,71..MTM

 1
31204-26010

LH50,60,70..5H

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20090

YH5#,6#,71..MTM

 1
31204-26010

LH50,60,70..5H

 1
31250 - DISC ASSY, CLUTCH
31250-20130

YH50,60..MTM

 1
31250-26050

LH5#,6#,7#..5H

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
Common parts
90119-08026
90159-60139
90159-60261
90170-08197
94512-00800
