LH60LV-QRB (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )LH50,51,60,61,7#,YH50,51,53,60,61,63,7#

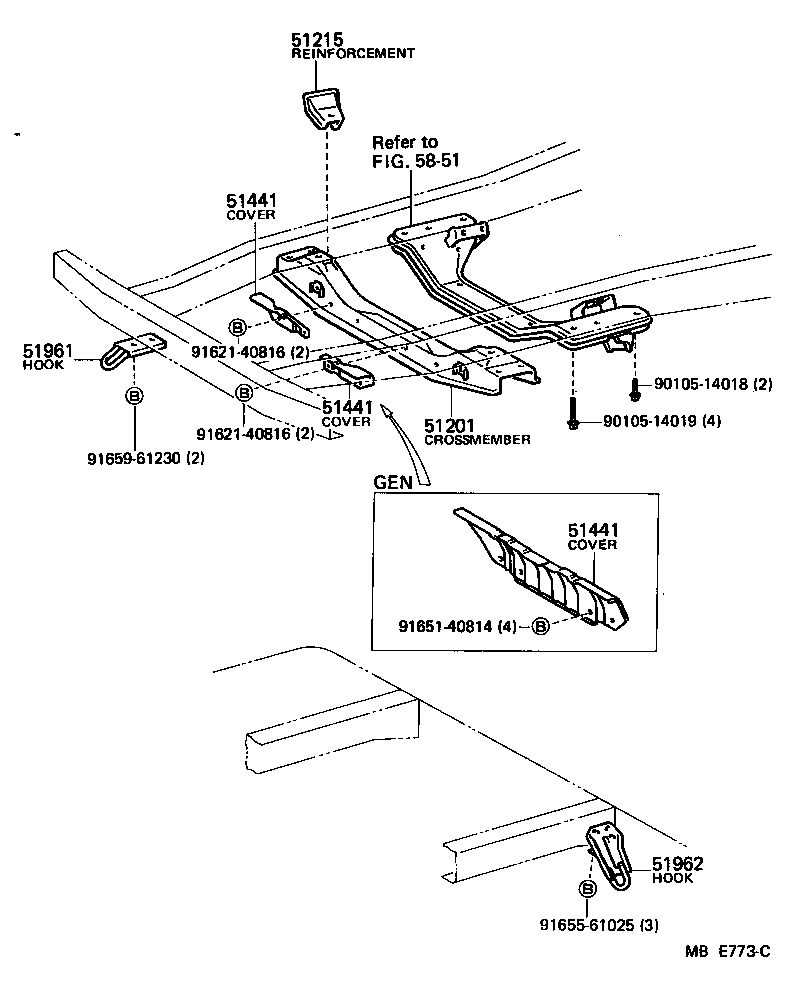

Click highlighted areas on diagram

diagram 51201 51215 51441 51441 51441 51961 51962 5851 9010514018 9010514019 9162140816 9162140816 9165140814 9165561025 9165961230
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-95J00

YH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH50,51,60,61,7#,YH50,53,60,61,63,7#..ARL,GEN,SA

 1
51215 - REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER
51215-95J00

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#

RH

 1
51216-95J00

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#

LH

 1
51441 - COVER, ENGINE UNDER, NO.1
51446-95J01

YH51..MTM;YH51..4HC..SA;YH50,6#,71..ARL,GEN,SA

LH

 1
51444-95J01

YH51..MTM;YH51..4HC..SA;YH50,6#,71..ARL,GEN,SA

RH

 1
51446-95J00

LH5#,6#,7#..ARL,GEN

LH

 1
51444-95J00

LH5#,6#,7#..ARL,GEN

RH

 1
51441 - COVER, ENGINE UNDER, NO.1
51446-95J01

YH51..MTM;YH51..4HC..SA;YH50,6#,71..ARL,GEN,SA

LH

 1
51444-95J01

YH51..MTM;YH51..4HC..SA;YH50,6#,71..ARL,GEN,SA

RH

 1
51446-95J00

LH5#,6#,7#..ARL,GEN

LH

 1
51444-95J00

LH5#,6#,7#..ARL,GEN

RH

 1
51441 - COVER, ENGINE UNDER, NO.1
51446-95J01

YH51..MTM;YH51..4HC..SA;YH50,6#,71..ARL,GEN,SA

LH

 1
51444-95J01

YH51..MTM;YH51..4HC..SA;YH50,6#,71..ARL,GEN,SA

RH

 1
51446-95J00

LH5#,6#,7#..ARL,GEN

LH

 1
51444-95J00

LH5#,6#,7#..ARL,GEN

RH

 1
51961 - HOOK, NO.1
51961-26080

LH5#,6#,7#,YH5#,6#,71..4H,4HC,5H

 1
Common parts
90105-14018
90105-14019
91621-40816
91651-40814
91655-61025
91659-61230
Linked diagrams
5851
