LH60LB-QR (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

Click highlighted areas on diagram

diagram 1149371010 1717572010 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712490B00 8712490B00 87205 87240 87240 87245A 87245A 87245B 87245B 87245E 87245E 87246A 87246A 87246E 87246E 87248A 87248A 87248A 87248B 87248B 87249A 87249A 87249A 87249A 87249F 87251 87251B 87251B 87251B 87251B 87263 8743695J04 8743695J04 8743695J05 8743695J05 9017908123 9017908123 9017908146 9046108157 9046108573 9046108573 9161160835 9165140610 9165140616 9165140814 9165140816 9165140816 9165140816 9165140816 9165140816 9331515010 9331515010 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210270 9611210270
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30230

LH5#,6#,7#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J03

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J03

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J11

LH50,51,60,61,7#

 1
87245-95J10

YH50,51,53,60,61,63,7#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J11

LH50,51,60,61,7#

 1
87245-95J10

YH50,51,53,60,61,63,7#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-95J09

LH50,51,60,61,YH50,51,60,61..LHD

 1
87245B - HOSE, HEATER WATER, INLET B
87245-95J09

LH50,51,60,61,YH50,51,60,61..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J04

LH5#,6#,7#,YH5#,6#,7#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J04

LH5#,6#,7#,YH5#,6#,7#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J07

LH50,51,60,61,YH50,51,60,61..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J07

LH50,51,60,61,YH50,51,60,61..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95J13

LH50,51,60,61,7#

 1
87245-95J12

YH50,51,53,60,61,63,7#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95J13

LH50,51,60,61,7#

 1
87245-95J12

YH50,51,53,60,61,63,7#

 1
87248A - PIPE, HEATER WATER INLET, A
87248-95J15

LH5#,6#..COM

W/RR HEATER

 1
87208-28010

YH5#,6#,7#

 1
87248-95J14

LH5#,6#,7#

 1
87248A - PIPE, HEATER WATER INLET, A
87248-95J15

LH5#,6#..COM

W/RR HEATER

 1
87208-28010

YH5#,6#,7#

 1
87248-95J14

LH5#,6#,7#

 1
87248A - PIPE, HEATER WATER INLET, A
87248-95J15

LH5#,6#..COM

W/RR HEATER

 1
87208-28010

YH5#,6#,7#

 1
87248-95J14

LH5#,6#,7#

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95J20

LH5#,6#..COM

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95J20

LH5#,6#..COM

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J11

LH5#,6#..COM

W/RR HEATER

 1
87248-95J50

YH50,60..COM

W/RR HEATER

 1
87248-95J08

YH5#,6#,71

 1
87248-95J10

LH5#,6#,7#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J11

LH5#,6#..COM

W/RR HEATER

 1
87248-95J50

YH50,60..COM

W/RR HEATER

 1
87248-95J08

YH5#,6#,71

 1
87248-95J10

LH5#,6#,7#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J11

LH5#,6#..COM

W/RR HEATER

 1
87248-95J50

YH50,60..COM

W/RR HEATER

 1
87248-95J08

YH5#,6#,71

 1
87248-95J10

LH5#,6#,7#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J11

LH5#,6#..COM

W/RR HEATER

 1
87248-95J50

YH50,60..COM

W/RR HEATER

 1
87248-95J08

YH5#,6#,71

 1
87248-95J10

LH5#,6#,7#

 1
87249F - PIPE, HEATER WATER OUTLET, F
87208-28020

YH5#,6#,71

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LH5#,6#,7#

 1
87251B - PLUG, HEATER WATER
90339-16007

LH50,51,60,61..GEN

 2
87251B - PLUG, HEATER WATER
90339-16007

LH50,51,60,61..GEN

 2
87251B - PLUG, HEATER WATER
90339-16007

LH50,51,60,61..GEN

 2
87251B - PLUG, HEATER WATER
90339-16007

LH50,51,60,61..GEN

 2
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-28010

YH5#,6#,71

 1
Common parts
11493-71010
17175-72010
87124-28030
87124-90B00
87436-95J04
87436-95J05
90179-08123
90179-08146
90461-08157
90461-08573
91611-60835
91651-40610
91651-40616
91651-40814
91651-40816
93315-15010
96112-10250
96112-10270

(8212- )YH50,51,60,61..LHD..COM

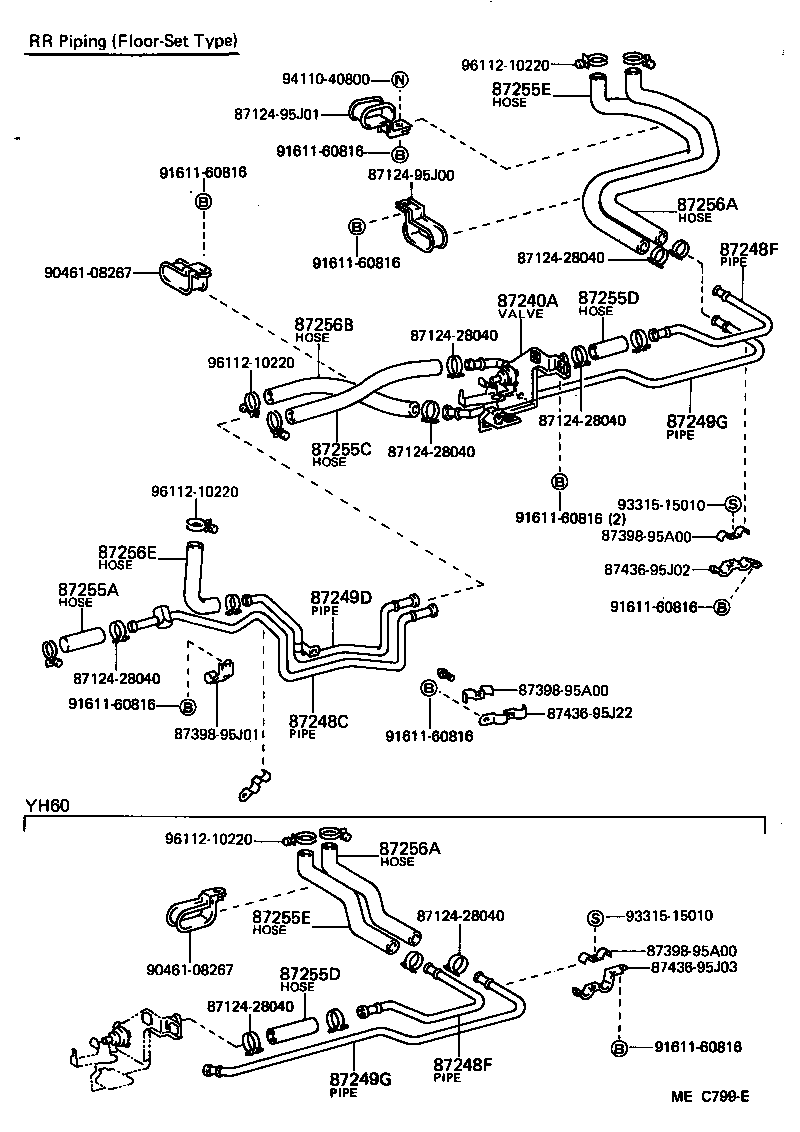

Click highlighted areas on diagram

diagram 8712428040 8712428040 8712428040 8712428040 8712428040 8712428040 8712428040 8712495J00 8712495J01 87240A 87248C 87248F 87248F 87249D 87249G 87249G 87255A 87255C 87255D 87255D 87255E 87255E 87256A 87256A 87256B 87256E 8739895A00 8739895A00 8739895A00 8739895J01 8743695J02 8743695J03 8743695J22 9046108267 9046108267 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9331515010 9331515010 9411040800 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87240A - VALVE ASSY, REAR HEATER WATER
87240-95J01

LH50,51,60,61,YH50,51,60,61..LHD..COM

 1
87248C - PIPE, HEATER WATER INLET, C
87248-95J17

YH5#,60..COM

 1
87248F - PIPE, HEATER WATER INLET, F
87248-95J06

LH50,51,60,61,YH50,51,60,61..LHD..COM

 1
87248F - PIPE, HEATER WATER INLET, F
87248-95J06

LH50,51,60,61,YH50,51,60,61..LHD..COM

 1
87249D - PIPE, HEATER WATER OUTLET, D
87248-95J18

YH5#,60..COM

 1
87249G - PIPE, HEATER WATER OUTLET, G
87248-95J07

LH50,51,60,61,YH50,51,60,61..LHD..COM

 1
87249G - PIPE, HEATER WATER OUTLET, G
87248-95J07

LH50,51,60,61,YH50,51,60,61..LHD..COM

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-20200

LH5#,6#,YH50,60..COM

*H,L=130

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99552-21000

LH50,51,60,61,YH50,51,60,61..LHD..COM

*H,L=520

 1
87255D - HOSE, REAR HEATER WATER INLET, D
99552-20100

LH5#,6#,YH50,60..COM

*H,L=50

 1
87255D - HOSE, REAR HEATER WATER INLET, D
99552-20100

LH5#,6#,YH50,60..COM

*H,L=50

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95J02

LH60,61,YH60,61..LHD..15S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95J02

LH60,61,YH60,61..LHD..15S

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95J03

LH60,61,YH60,61..LHD..15S

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95J03

LH60,61,YH60,61..LHD..15S

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-20500

LH5#,6#,YH50,60..LHD..COM

*H,L=490

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99552-20200

LH5#,6#..COM

*H,L=130

 1
87245-95J15

YH50,51,60,61..COM..(EUR,GEN)

 1
Common parts
87124-28040
87124-95J00
87124-95J01
87398-95A00
87398-95J01
87436-95J02
87436-95J03
87436-95J22
90461-08267
91611-60816
93315-15010
94110-40800
96112-10220

(8212- )LH50,51,60,61..LHD..COM

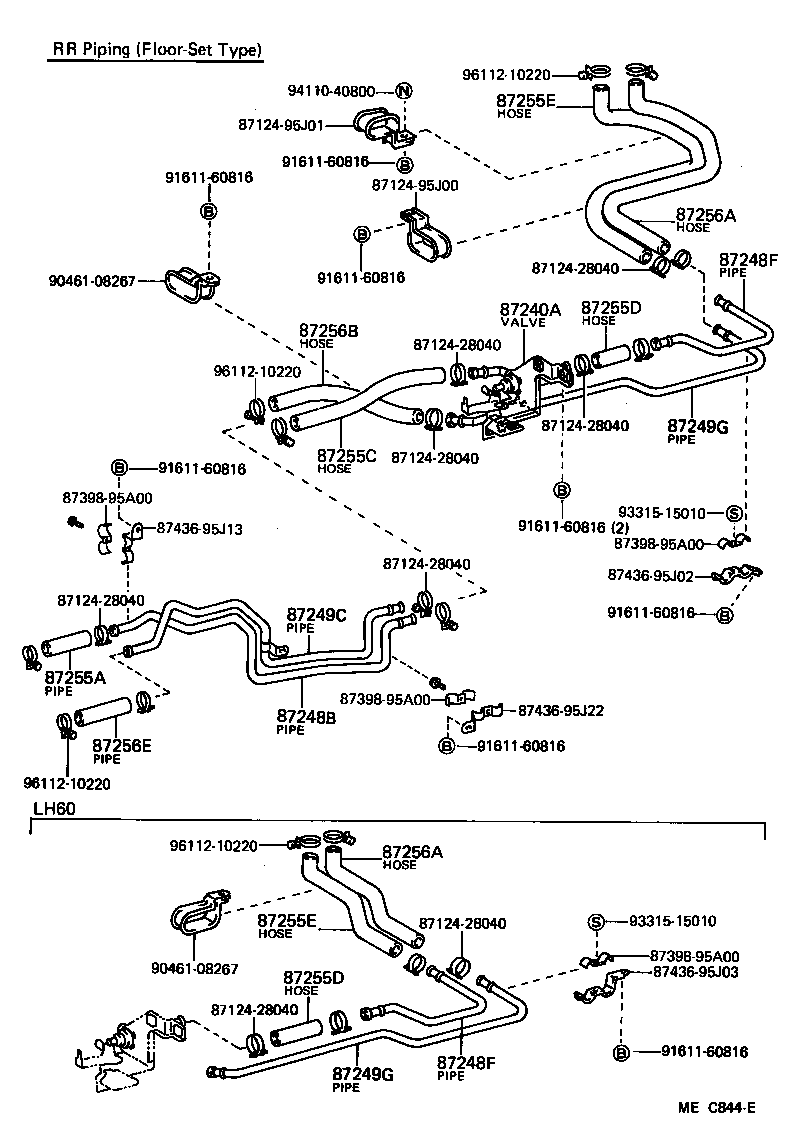

Click highlighted areas on diagram

diagram 8712428040 8712428040 8712428040 8712428040 8712428040 8712428040 8712428040 8712428040 8712495J00 8712495J01 87240A 87248B 87248F 87248F 87249C 87249G 87249G 87255A 87255C 87255D 87255D 87255E 87255E 87256A 87256A 87256B 87256E 8739895A00 8739895A00 8739895A00 8739895A00 8743695J02 8743695J03 8743695J13 8743695J22 9046108267 9046108267 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9331515010 9331515010 9411040800 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87240A - VALVE ASSY, REAR HEATER WATER
87240-95J01

LH50,51,60,61,YH50,51,60,61..LHD..COM

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95J20

LH5#,6#..COM

 1
87248F - PIPE, HEATER WATER INLET, F
87248-95J06

LH50,51,60,61,YH50,51,60,61..LHD..COM

 1
87248F - PIPE, HEATER WATER INLET, F
87248-95J06

LH50,51,60,61,YH50,51,60,61..LHD..COM

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-95J19

LH5#,6#..COM

 1
87249G - PIPE, HEATER WATER OUTLET, G
87248-95J07

LH50,51,60,61,YH50,51,60,61..LHD..COM

 1
87249G - PIPE, HEATER WATER OUTLET, G
87248-95J07

LH50,51,60,61,YH50,51,60,61..LHD..COM

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-20200

LH5#,6#,YH50,60..COM

*H,L=130

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99552-21000

LH50,51,60,61,YH50,51,60,61..LHD..COM

*H,L=520

 1
87255D - HOSE, REAR HEATER WATER INLET, D
99552-20100

LH5#,6#,YH50,60..COM

*H,L=50

 1
87255D - HOSE, REAR HEATER WATER INLET, D
99552-20100

LH5#,6#,YH50,60..COM

*H,L=50

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95J02

LH60,61,YH60,61..LHD..15S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95J02

LH60,61,YH60,61..LHD..15S

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95J03

LH60,61,YH60,61..LHD..15S

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95J03

LH60,61,YH60,61..LHD..15S

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-20500

LH5#,6#,YH50,60..LHD..COM

*H,L=490

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99552-20200

LH5#,6#..COM

*H,L=130

 1
87245-95J15

YH50,51,60,61..COM..(EUR,GEN)

 1
Common parts
87124-28040
87124-95J00
87124-95J01
87398-95A00
87436-95J02
87436-95J03
87436-95J13
87436-95J22
90461-08267
91611-60816
93315-15010
94110-40800
96112-10220
