LH56LV-MRUW (1986)

Toyota Hiace Van,Commuter

Production Aug 1986 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608-8708)LH56,66,YH56,66

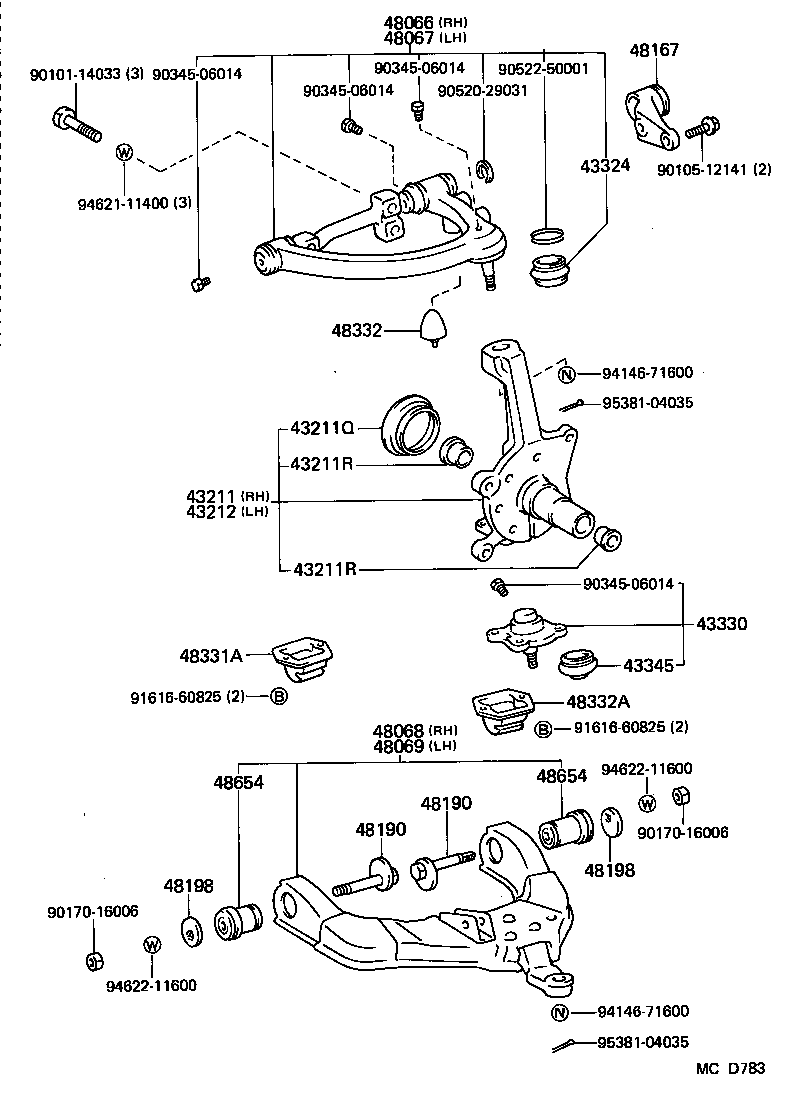

Click highlighted areas on diagram

diagram 43211 43211Q 43211R 43211R 43212 43324 43330 43345 48066 48067 48068 48069 48167 48190 48190 48198 48198 48331A 48332 48332A 48654 48654 9010114033 9010512141 9017016006 9017016006 9034506014 9034506014 9034506014 9034506014 9052029031 9052250001 9161660825 9161660825 9414671600 9414671600 9462111400 9462211600 9462211600 9538104035 9538104035
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43201-26010

LH56,66,YH56,66

 1
43211-26050

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
43211Q - SEAL, OIL (FOR STEERING KNUCKLE)
90316-60001

LH56,66,YH56,66

 2
43211R - BUSH (FOR STEERING KNUCKLE)
90381-30003

LH56,66,YH56,66

OUTER

 2
90381-30001

LH56,66,YH56,66

INNER

 2
43211R - BUSH (FOR STEERING KNUCKLE)
90381-30003

LH56,66,YH56,66

OUTER

 2
90381-30001

LH56,66,YH56,66

INNER

 2
43212 - KNUCKLE, STEERING, LH
43202-26010

LH56,66,YH56,66

 1
43212-26020

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
43324 - COVER, UPPER JOINT DUST
43324-26020

LH56,66,YH56,66

 1
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-29125

LH5#,6#,7#,YH5#,6#,71

RH

 1
43340-39175

LH56,66,YH56,66

LH

 1
43340-29105

LH5#,6#,7#,YH5#,6#,71

LH

 1
43330-39195

LH56,66,YH56,66

RH

 1
43345 - COVER, LOWER BALL JOINT DUST
43345-26010

LH56,66,YH56,66

 2
48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48066-26020

LH50,60,70,YH50,6#,71

 1
48066-26050

LH56,66,YH56,66

 1
48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48067-26050

LH56,66,YH56,66

 1
48067-26020

LH50,60,70,YH50,6#,71

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-26020

LH5#,6#,7#,YH5#,6#,71

 1
48068-26030

LH56,66,YH56,66

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-26020

LH5#,6#,7#,YH5#,6#,71

 1
48069-26030

LH56,66,YH56,66

 1
48167 - ARM, TORQUE
48106-26020

LH56,66,YH56,66

 2
48106-26010

LH5#,6#,7#,YH5#,6#,71

 2
48190 - CAM ASSY, CAMBER ADJUST
48190-26010

LH5#,6#,7#,YH5#,6#,7#

 2
48190 - CAM ASSY, CAMBER ADJUST
48190-26010

LH5#,6#,7#,YH5#,6#,7#

 2
48198 - CAM, CAMBER ADJUST, NO.2
48198-26010

LH5#,6#,7#,YH5#,6#,7#

 2
48198 - CAM, CAMBER ADJUST, NO.2
48198-26010

LH5#,6#,7#,YH5#,6#,7#

 2
48331A - BUMPER, FRONT SPRING, NO.1
48331-26050

LH56,66,YH56,66

 2
48332 - BUMPER, FRONT SPRING, NO.2
48332-29035

LH5#,6#,7#,YH5#,6#,71

 2
48332A - BUMPER, FRONT SPRING, NO.3
48331-26060

LH56,66,YH56,66

 2
48654 - BUSH, LOWER ARM
48061-35011

LH56,66,YH56,66

 2
48654 - BUSH, LOWER ARM
48061-35011

LH56,66,YH56,66

 2
Common parts
90101-14033
90105-12141
90170-16006
90345-06014
90520-29031
90522-50001
91616-60825
94146-71600
94621-11400
94622-11600
95381-04035

(8708-9206)

Click highlighted areas on diagram

diagram 04485 43211 43211 43212 43212 43310A 43310A 43330 43350 43360 48068 48069 48167 48167A 48167B 48190 48198 48332 48610 48630 48631B 48631B 48632 48632 48654 9010114024 9017016006 9017908054 9017918004 9017918004 9151161030 9411051000 9411551200 9414671600 9414671600 9451201000 9451201200 9462111400 9462211600 9538104030 9538104035
Part # Description Qty Price
Common parts
90101-14024
90170-16006
90179-08054
90179-18004
91511-61030
94110-51000
94115-51200
94146-71600
94512-01000
94512-01200
94621-11400
94622-11600
95381-04030
95381-04035
