LH51RV-SRBQ (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

diagram 04477 31478D 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160814 9161160814 9411040800 9411040800 9411040800 9411040800 9414140800 9451200800 9451200800 9451200800 9451200800 9451200800 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

LH51,61,71,YH5#,6#,73

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-26171

LH51,61,71,YH53,63,73..ARL

 1
47920 - SPRING ASSY, LOAD SENSING
47920-26040

LH51,61,71,YH5#,6#,73

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH51,61,71,YH5#,6#,73

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH51,61,71,YH5#,6#,73

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

LH51,61,71,YH5#,6#,73

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH51,61,71,YH5#,6#,73

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH51,61,71,YH5#,6#,73

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-26060

LH51,61,71,YH5#,6#,73

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-26040

LH51,61,71,YH5#,6#,73

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

LH51,61,71,YH5#,6#,73

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

LH51,61,71,YH5#,6#,73

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH51,61,71,YH5#,6#,73

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH51,61,71,YH5#,6#,73

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

LH51,61,71,YH5#,6#,73

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

LH51,61,71,YH5#,6#,73

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

LH51,61,71,YH5#,6#,73

 1
Common parts
90201-23360
91131-50840
91611-60814
94110-40800
94141-40800
94512-00800
95381-02020

(8708- )ARL

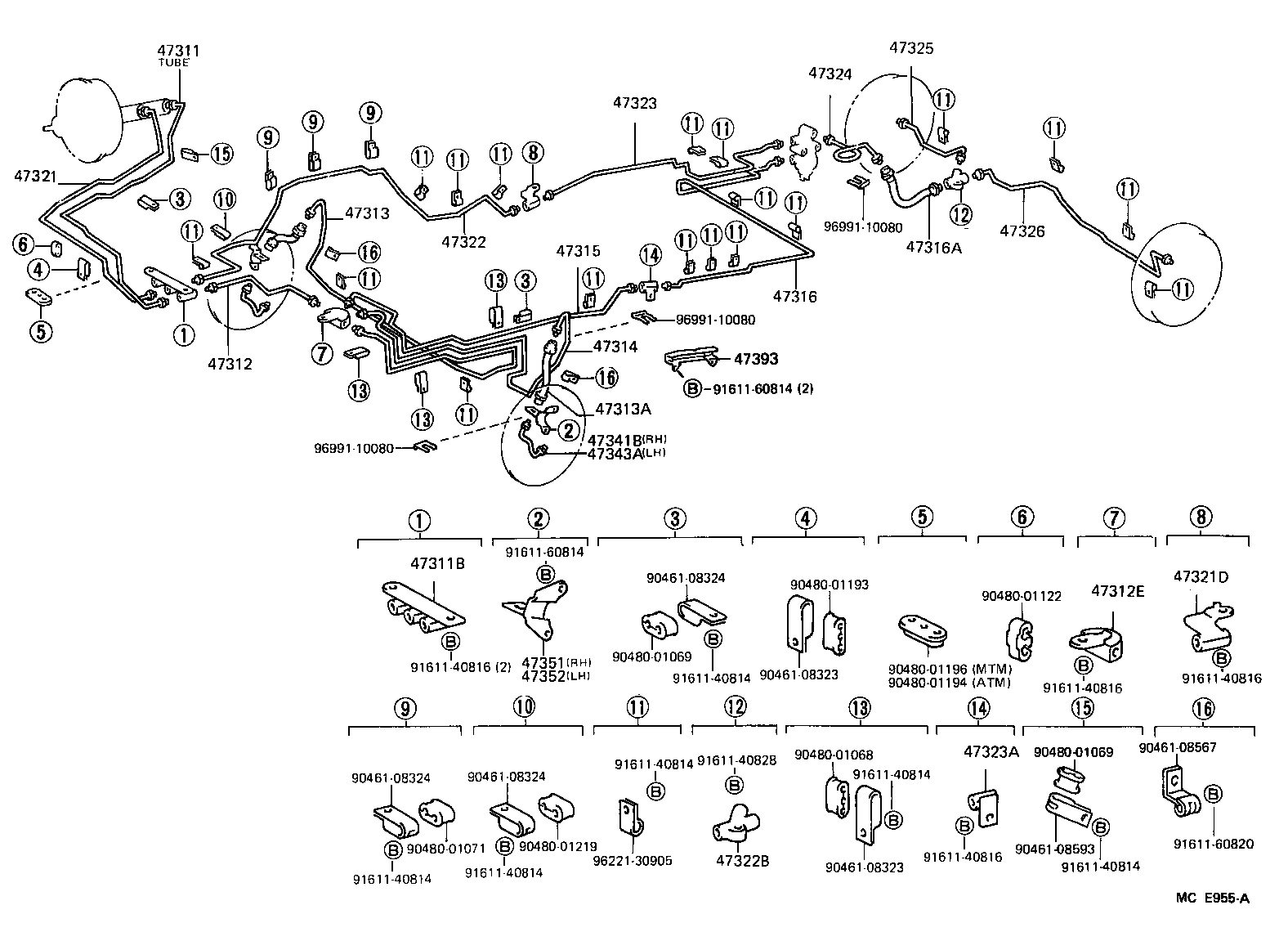

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47314 47315 47316 47316A 47321 47321D 47322 47322B 47323 47323A 47324 47325 47326 47341B 47343A 47351 47352 47393 9046108323 9046108323 9046108324 9046108324 9046108324 9046108567 9046108593 9048001068 9048001069 9048001069 9048001071 9048001122 9048001193 9048001194 9048001196 9048001219 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140816 9161140816 9161140816 9161140816 9161140828 9161160814 9161160814 9161160820 9622130905 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26280

YH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10100

LH51,61,YH53,61,63..ATM

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-26171

LH51,61,71,YH5#,6#,73

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10012

LH51,61,71,YH5#,6#,73

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26091

LH51,61,71,YH5#,6#,73

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02477

LH51,61,71,YH5#,6#,73

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26081

LH51,61,71,YH5#,6#,73

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26072

LH51,61,71,YH5#,6#,73

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26091

LH51,YH5#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26190

YH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10103

LH51,61,71,YH5#,6#,73

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26092

LH51,61,71,YH5#,6#,73

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26171

LH51,YH5#

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90412-10006

LH51,61,71,YH5#,6#,73

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26101

LH51,61,71,YH5#,6#,73

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-26060

YH63;LH51,61,71,YH53,60,73..ARL,SA

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-26060

YH63;LH51,61,71,YH53,60,73..ARL,SA

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26070

YH63;LH51,61,71,YH53,60,73..ARL,SA

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26070

YH63;LH51,61,71,YH53,60,73..ARL,SA

 1
Common parts
90461-08323
90461-08324
90461-08567
90461-08593
90480-01068
90480-01069
90480-01071
90480-01122
90480-01193
90480-01194
90480-01196
90480-01219
91611-40814
91611-40816
91611-40828
91611-60814
91611-60820
96221-30905
96991-10080
