LH51RV-SRBQ (1987)
Toyota Hiace Van,Commuter

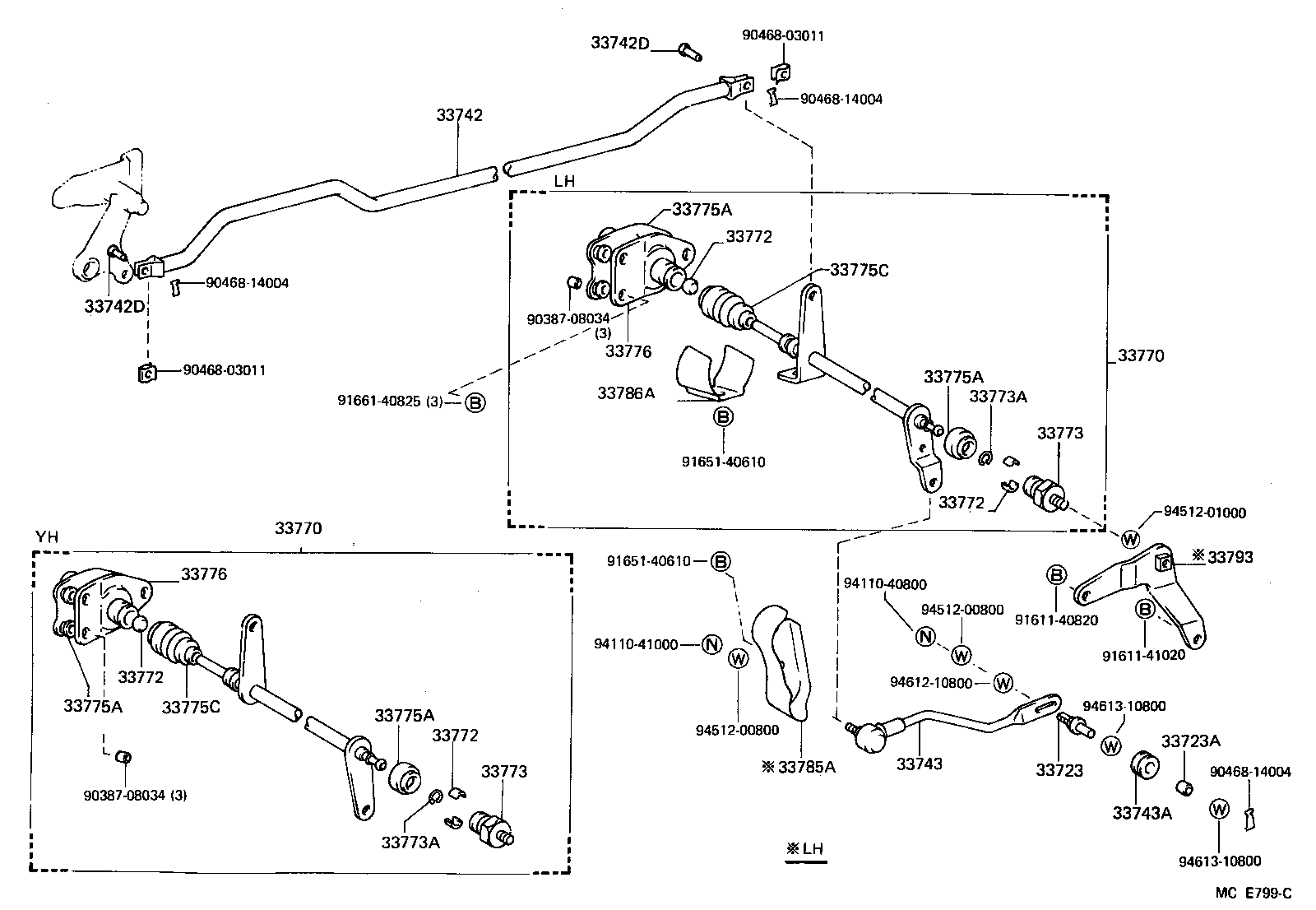

ILLUST NO. 2 OF 2(8708- )4HC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33742-26121 |
LH51,61,71,YH5#,6#,73..4H,5H |
1 | ||
| 33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33840-26091 |
LH51,61,71,YH5#,6#,73..4H,5H |
1 | ||
| 33770 - SHAFT ASSY, CROSS (FOR COLUMN SHIFT) | ||||
| 33770-26070 |
LH51,61..4HC |
1 | ||
| 33770 - SHAFT ASSY, CROSS (FOR COLUMN SHIFT) | ||||
| 33770-26070 |
LH51,61..4HC |
1 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LH51,61,YH53,61,63..ATM INNER |
2 | ||
| 33772-35011 |
LH51,61,YH53,61,63..ATM OUTER |
1 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LH51,61,YH53,61,63..ATM INNER |
2 | ||
| 33772-35011 |
LH51,61,YH53,61,63..ATM OUTER |
1 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LH51,61,YH53,61,63..ATM INNER |
2 | ||
| 33772-35011 |
LH51,61,YH53,61,63..ATM OUTER |
1 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LH51,61,YH53,61,63..ATM INNER |
2 | ||
| 33772-35011 |
LH51,61,YH53,61,63..ATM OUTER |
1 | ||
| 33776 - BRACKET, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT) | ||||
| 33776-26060 |
LH51,61,YH53,61,63..ATM |
1 | ||
| 33776 - BRACKET, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT) | ||||
| 33776-26060 |
LH51,61,YH53,61,63..ATM |
1 | ||
| 33785A - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1(FOR COLUMN SHIF | ||||
| 33785-26020 |
LH51,61..4HC |
1 | ||
| 33786A - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2(FOR COLUMN SHIF | ||||
| 33786-26010 |
LH51,61..4HC |
1 | ||
| 33793 - BRACKET, CROSS SHAFT, NO.2(FOR COLUMN SHIFT) | ||||
| 33793-26020 |
LH51,61..4HC |
1 | ||
| Common parts | ||||
| 90387-08034 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 91611-40820 | ||||
| 91611-41020 | ||||
| 91651-40610 | ||||
| 91661-40825 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||

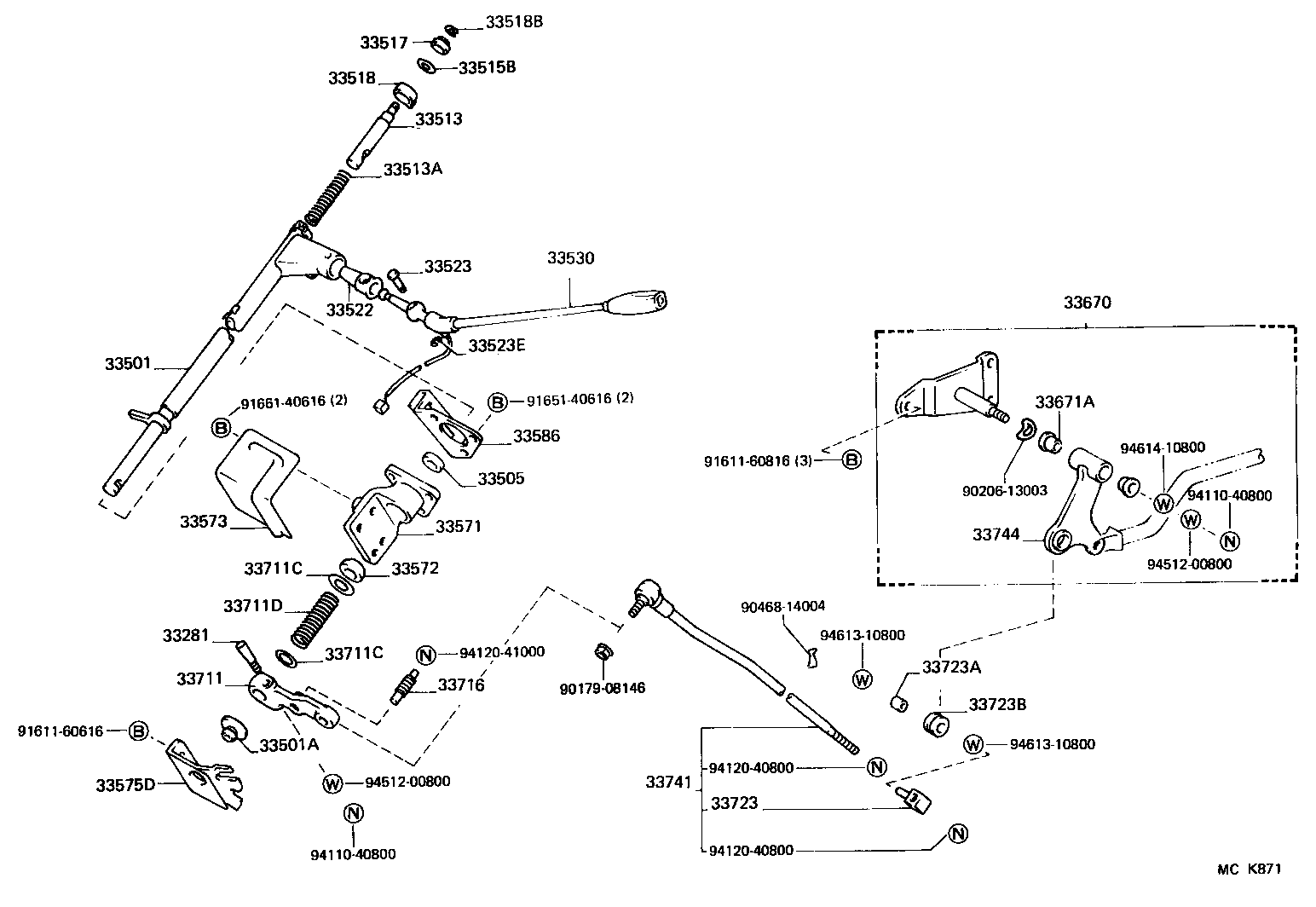

ILLUST NO. 1 OF 2(8708- )RHD..4H,5H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33218 - BOLT, SHIFT LEVER LOCK | ||||
| 33218-35010 |
LH51,61,71,YH5#,6#,73..4H,5H |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-26142 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-26142 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
LH51,61,71,YH5#,6#,73..4H,5H |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33505-30010 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 90303-17005 |
LH51,61,71,YH5#,6#,73..4H,5H |
2 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-36020 |
YH61..4H;YH63..4HC..ARL;LH51,61,YH5#..4H,4HC |
1 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-36020 |
YH61..4H;YH63..4HC..ARL;LH51,61,YH5#..4H,4HC |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14395 |
YH6#..MTM;YH63..4HC..ARL;LH51,61,71,YH5#,73..STD |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14395 |
YH6#..MTM;YH63..4HC..ARL;LH51,61,71,YH5#,73..STD |
1 | ||
| 33515B - SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT) | ||||
| 33515-30010 |
LH51,61,71,YH5#,6#,73..4H,4HC,5H |
1 | ||
| 33515B - SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT) | ||||
| 33515-30010 |
LH51,61,71,YH5#,6#,73..4H,4HC,5H |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
LH51,61,71,YH5#,6#,73..4H,4HC,5H |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
LH51,61,71,YH5#,6#,73..4H,4HC,5H |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-36010 |
LH51,61,71,YH5#,6#,73..4H,4HC,5H |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-36010 |
LH51,61,71,YH5#,6#,73..4H,4HC,5H |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
LH51,61,71,YH5#,6#,73..4H,4HC,5H |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
LH51,61,71,YH5#,6#,73..4H,4HC,5H |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-36010 |
YH6#..MTM;YH63..4HC..ARL;LH51,61,71,YH5#,73..STD |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07001 |
YH6#..MTM;YH63..4HC..ARL;LH51,61,71,YH5#,73..STD |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
YH6#..MTM;YH63..4HC..ARL;LH51,61,71,YH5#,73..STD |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33530-26021 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33541-26050 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT) | ||||
| 33535-26030 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13192 |
LH51,61,71,YH5#,6#,73..4H,5H |
2 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13192 |
LH51,61,71,YH5#,6#,73..4H,5H |
2 | ||
| 33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT) | ||||
| 33536-36040 |
LH51,61,71,YH5#,6#,73..4H,5H |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-26020 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33571-26012 |
LH51,61,71,YH5#,6#,73..4H,5H |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-30020 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33572-36010 |
LH51,61,71,YH5#,6#,73..4H,5H |
1 | ||
| 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33574-25010 |
LH51,61,71,YH5#,6#,73..4H,5H |
2 | ||
| 33670 - SUPPORT ASSY, CONTROL ROD (FOR COLUMN SHIFT) | ||||
| 33670-26290 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13192 |
LH51,61,71,YH5#,6#,73..RHD..(4H,4HC,5F,5H) |
4 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33527-26060 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33711-26010 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33710-26081 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33744 - LEVER, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33744-26070 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90206-13003 | ||||
| 90468-14004 | ||||
| 90580-14002 | ||||
| 91111-40814 | ||||
| 91611-40816 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-00800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94531-00500 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||

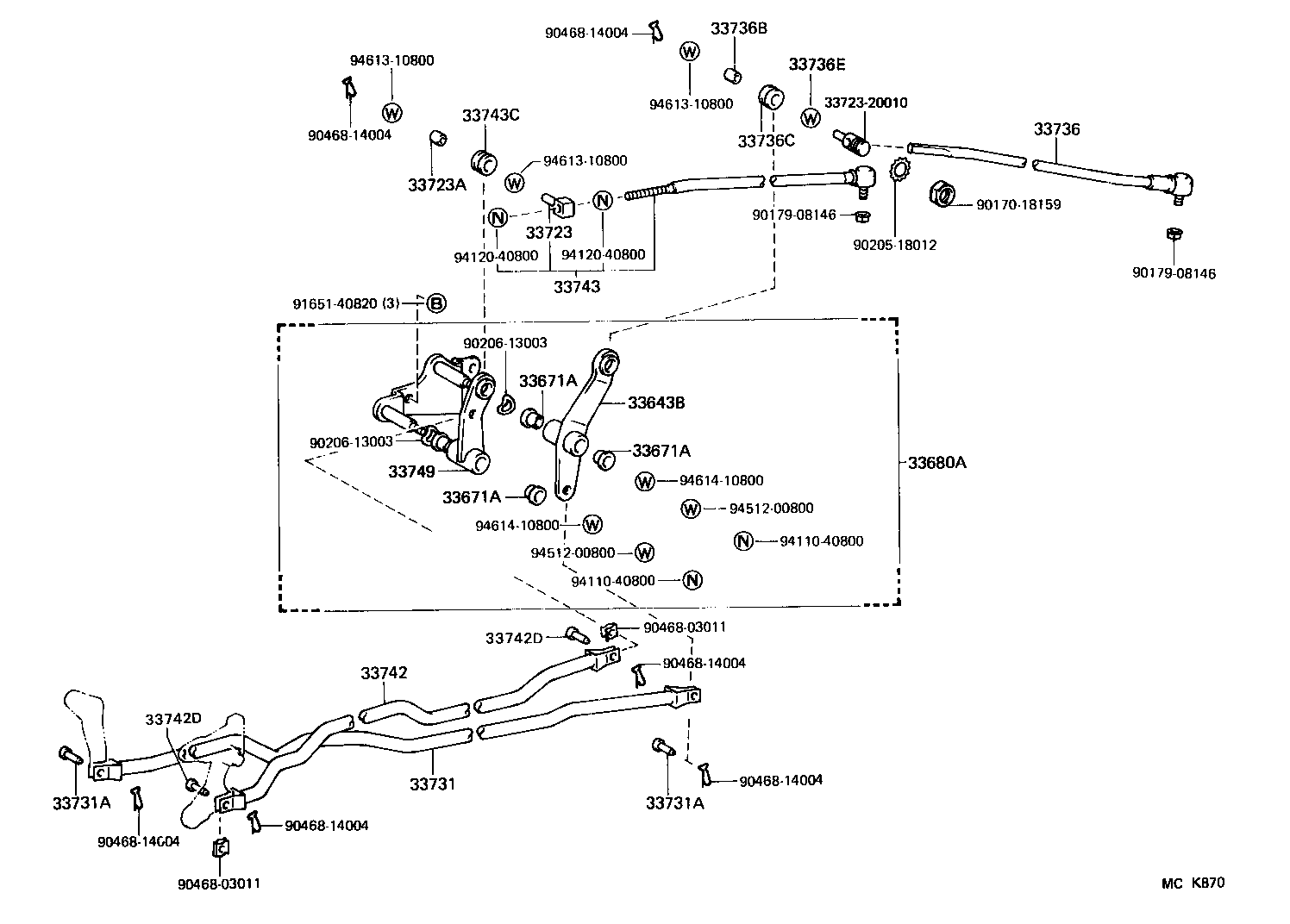

ILLUST NO. 2 OF 2(8708- )RHD..4H,5H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13192 |
LH51,61,71,YH5#,6#,73..RHD..(4H,4HC,5F,5H) |
4 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13192 |
LH51,61,71,YH5#,6#,73..RHD..(4H,4HC,5F,5H) |
4 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13192 |
LH51,61,71,YH5#,6#,73..RHD..(4H,4HC,5F,5H) |
4 | ||
| 33680A - SUPPORT ASSY, CONTROL ROD, NO.2 | ||||
| 33680-26011 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33731-26031 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33731A - PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD) | ||||
| 90240-08042 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
2 | ||
| 33731A - PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD) | ||||
| 90240-08042 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
2 | ||
| 33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33850-26031 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33736B - BUSH(FOR GEAR SELECTING ROD, NO.2) | ||||
| 90389-08005 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33736C - GROMMET(FOR GEAR SELECTING ROD, NO.2) | ||||
| 90480-17177 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33736E - SWIVEL, CONNECTING ROD | ||||
| 33723-20010 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33742-26121 |
LH51,61,71,YH5#,6#,73..4H,5H |
1 | ||
| 33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33840-26091 |
LH51,61,71,YH5#,6#,73..4H,5H |
1 | ||
| 33749 - LEVER, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33749-26081 |
LH51,61,71,YH5#,6#,73..4H,5H |
1 | ||
| Common parts | ||||
| 33723-20010 | ||||
| 90170-18159 | ||||
| 90179-08146 | ||||
| 90205-18012 | ||||
| 90206-13003 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||
ILLUST NO. 1 OF 2(8708- )4HC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33281 - PIN, LEVER LOCK (FOR COLUMN SHIFT) | ||||
| 33281-30020 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-26142 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33501A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33615-26010 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33505-30010 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 90303-17005 |
LH51,61,71,YH5#,6#,73..4H,5H |
2 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-36020 |
YH61..4H;YH63..4HC..ARL;LH51,61,YH5#..4H,4HC |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14395 |
YH6#..MTM;YH63..4HC..ARL;LH51,61,71,YH5#,73..STD |
1 | ||
| 33515B - SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT) | ||||
| 33515-30010 |
LH51,61,71,YH5#,6#,73..4H,4HC,5H |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
LH51,61,71,YH5#,6#,73..4H,4HC,5H |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-36010 |
LH51,61,71,YH5#,6#,73..4H,4HC,5H |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
LH51,61,71,YH5#,6#,73..4H,4HC,5H |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-36010 |
YH6#..MTM;YH63..4HC..ARL;LH51,61,71,YH5#,73..STD |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07001 |
YH6#..MTM;YH63..4HC..ARL;LH51,61,71,YH5#,73..STD |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
YH6#..MTM;YH63..4HC..ARL;LH51,61,71,YH5#,73..STD |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33530-26021 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33541-26050 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-26020 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33571-26012 |
LH51,61,71,YH5#,6#,73..4H,5H |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-30020 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33572-36010 |
LH51,61,71,YH5#,6#,73..4H,5H |
1 | ||
| 33573 - COVER, CONTROL SHAFT DUST, LOWER | ||||
| 33573-26030 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33575D - RETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33575-26020 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33586 - STOPPER, CONTROL SHIFT LEVER | ||||
| 33586-26011 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33670 - SUPPORT ASSY, CONTROL ROD (FOR COLUMN SHIFT) | ||||
| 33670-26290 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13192 |
LH51,61,71,YH5#,6#,73..RHD..(4H,4HC,5F,5H) |
4 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33527-26060 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33711-26010 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17044 |
LH51,61,YH53,63..4HC..ARL T=1.2 |
1 | ||
| 90201-17048 |
LH51,61,YH53,63..4HC..ARL T=1.0 |
1 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17044 |
LH51,61,YH53,63..4HC..ARL T=1.2 |
1 | ||
| 90201-17048 |
LH51,61,YH53,63..4HC..ARL T=1.0 |
1 | ||
| 33711D - SPRING, COMPRESSION (FOR CONTROL SHAFT LEVER) | ||||
| 90501-12061 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33716 - PIN, CONTROL SHAFT LEVER STOPPER | ||||
| 33716-26010 |
LH51,61,YH53,63..4HC..ARL |
1 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33710-26081 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| 33744 - LEVER, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33744-26070 |
LH51,61,71,YH5#,6#,73..RHD..(4H,5H) |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90206-13003 | ||||
| 90468-14004 | ||||
| 91611-60616 | ||||
| 91611-60816 | ||||
| 91651-40616 | ||||
| 91661-40616 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
