LH51RV-SRBQ (1984)

Toyota Hiace Van,Commuter

Production Jan 1984 - Aug 1987
Engine 2L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8508)

Click highlighted areas on diagram

diagram 53111 53117A 53118A 53119B 53131A 53132A 53138 53139 9014950018 9014960043 9014960043 9016450006 9016450006 9016450006 9018305010 9018905010 9018905010 9018906033 9046713026
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-29225

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

 1
53117A - COVER, RADIATOR GRILLE SERVICE HOLE, RH
53117-95J01

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-95J01

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

 1
53131A - DOOR, HEADLAMP, RH
53130-29175

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

 1
53132A - DOOR, HEADLAMP, LH
53140-29175

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53138-95J01

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

L=380

 1
53138-95J02

LH51,61,71,YH5#,6#,71..STD

L=295

 1
53148-95J00

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

L=285

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53149-95J00

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

L=285

 1
53138-95J01

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

L=380

 1
53138-95J03

LH51,61,71,YH5#,6#,71

L=380

 1
53138-95J02

LH51,61,71,YH5#,6#,71..STD

L=370

 1
Common parts
90149-50018
90149-60043
90164-50006
90183-05010
90189-05010
90189-06033
90467-13026

(8508- )STD

Click highlighted areas on diagram

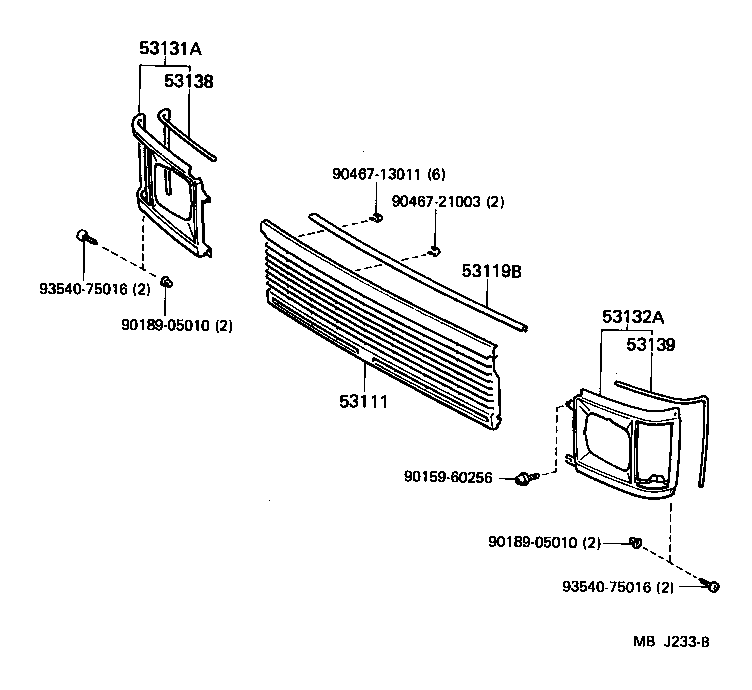

diagram 53111 53119B 53131A 53132A 53138 53139 9015960256 9018905010 9018905010 9046713011 9046721003 9354075016 9354075016
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-29225

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-95J01

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

 1
53131A - DOOR, HEADLAMP, RH
53130-29175

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

 1
53132A - DOOR, HEADLAMP, LH
53140-29175

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53138-95J01

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

L=380

 1
53138-95J02

LH51,61,71,YH5#,6#,71..STD

L=295

 1
53148-95J00

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

L=285

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53149-95J00

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

L=285

 1
53138-95J01

YH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL

L=380

 1
53138-95J03

LH51,61,71,YH5#,6#,71

L=380

 1
53138-95J02

LH51,61,71,YH5#,6#,71..STD

L=370

 1
Common parts
90159-60256
90189-05010
90467-13011
90467-21003
93540-75016
