LH51RV-QRBW (1984)
Toyota Hiace Van,Commuter
(8401- )LH51,61,71,YH5#,61,63,66,7#..5F,5H

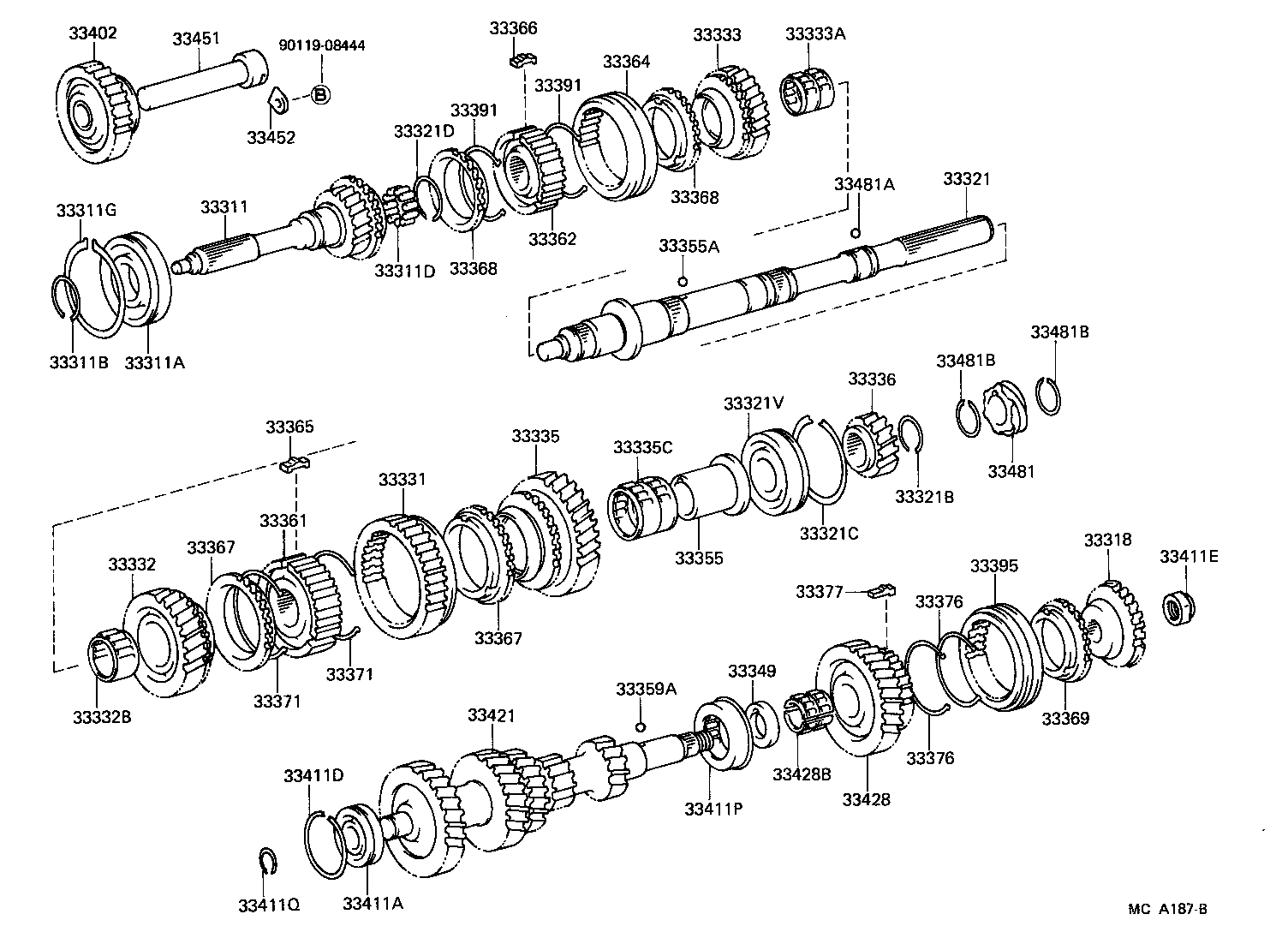

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-26022 |
LH51,61,71..5H..(ARL,EUR) |
1 | ||
| 33301-26022 |
YH51..5F;LH51,61,71,YH5#,6#,71..MTM..STD |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30216 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.15,MARK 2,T=2.15-2.20 |
1 | ||
| 90520-30215 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.10,MARK 1,T=2.10-2.15 |
1 | ||
| 90520-30214 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.05,MARK 0,T=2.05-2.10 |
1 | ||
| 90520-30218 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.25,MARK 4,T=2.25-2.30 |
1 | ||
| 90520-30219 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.30,MARK 5,T=2.30-2.35 |
1 | ||
| 90520-30217 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.20,MARK 3,T=2.20-2.25 |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76002 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
1 | ||
| 33318 - PIECE, GEAR SPLINE, NO.5 | ||||
| 33318-28010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5F,5H |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25013 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=3.03-3.08,MARK G,T=3.03-3.08 |
1 | ||
| 90520-25015 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=3.15-3.20,MARK J,T=3.15-3.20 |
1 | ||
| 90520-25012 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.97-3.02,MARK F,T=2.97-3.02 |
1 | ||
| 90520-25006 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.73-2.78,MARK B,T=2.73-2.78 |
1 | ||
| 90520-25005 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.67-2.72,MARK A,T=2.67-2.72 |
1 | ||
| 90520-25009 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.79-2.84,MARK C,T=2.79-2.84 |
1 | ||
| 90520-25010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.85-2.90,MARK D,T=2.85-2.90 |
1 | ||
| 90520-25017 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=3.27-3.32,MARK L,T=3.27-3.32 |
1 | ||
| 90520-25011 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.91-2.96,MARK E,T=2.91-2.96 |
1 | ||
| 90520-25016 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=3.21-3.26,MARK K,T=3.21-3.26 |
1 | ||
| 90520-25014 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=3.09-3.14,MARK H,T=3.09-3.14 |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-71221 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=1.65,ID=71.1 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28013 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.05-2.10,MARK F-1,T=2.05-2.10 |
1 | ||
| 90520-28011 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=1.95-2.00,MARK E-1,T=1.95-2.00 |
1 | ||
| 90520-28245 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=1.80-1.85,MARK D,T=1.80-1.85 |
1 | ||
| 90520-28248 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.00-2.05,MARK F,T=2.00-2.05 |
1 | ||
| 90520-28012 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=1.75-1.80,MARK C-1,T=1.75-1.80 |
1 | ||
| 90520-28246 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=1.90-1.95,MARK E,T=1.90-1.95 |
1 | ||
| 90520-28010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=1.85-1.90,MARK D-1,T=1.85-1.90 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-26020 |
LH51,61,71..5H..(ARL,EUR) |
1 | ||
| 33033-26010 |
LH51,61,71..5H |
1 | ||
| 33033-26010 |
YH50,51,61..V..MTM..EUR |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-38002 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-26040 |
LH51,61,71..5H..(ARL,EUR) |
1 | ||
| 33034-26050 |
YH50,51,61..V..MTM..EUR |
1 | ||
| 33034-26050 |
LH51,61,71..5H |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-35005 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-26010 |
LH51,61,71..5H..(ARL,EUR) |
1 | ||
| 33032-26010 |
LH51,61,71,YH51,53,61,63,73..MTM..(ARL,EUR,GEN) |
1 | ||
| 33032-26010 |
YH51..5F;LH51,61,71,YH5#,6#,71..MTM..STD |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-39002 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-28020 |
LH51,61,71,YH5#,61,71..5H..(ARL,EUR,SA) |
1 | ||
| 33336-26010 |
LH51,61,71,YH51,53,61,63,73..(5F,5H)..(ARL,EUR,GEN) |
1 | ||
| 33336-26010 |
LH51,61,71,YH5#,61,71..(5F,5H)..(ARL,EUR,GEN) |
1 | ||
| 33336-28020 |
LH51,61,71..5H..(ARL,EUR) |
1 | ||
| 33349 - WASHER, 5TH GEAR THRUST | ||||
| 33349-30020 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5F,5H |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-35011 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
LH5#,6#,7#,YH5#,6#,7#..5F,5H |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35020 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-35020 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-35010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35020 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-35020 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5F,5H |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5F,5H |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5F,5H |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-30010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5F,5H |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
2 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-14013 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5F,5H |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-28010 |
LH51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=1.07,OD=55.6 |
1 | ||
| 33411E - NUT(FOR COUNTER GEAR SHAFT) | ||||
| 90179-20002 |
LH5#,6#,7#,YH5#,6#,71..MTM |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-31002 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23089 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.10-2.15,T=2.10-2.15 |
1 | ||
| 90520-23145 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.30-2.35,T=2.35-2.40 |
1 | ||
| 90520-23090 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.20-2.25,T=2.20-2.25 |
1 | ||
| 90520-23115 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.05-2.10,T=2.05-2.10 |
1 | ||
| 90520-23143 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.15-2.20,T=2.15-2.20 |
1 | ||
| 90520-23144 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=2.25-2.30,T=2.25-2.30 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-26081 |
LH51,61,71..5H..(ARL,EUR) |
1 | ||
| 33421-26090 |
YH50,51,61..V..MTM..EUR |
1 | ||
| 33421-26090 |
LH51,61,71..5H |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33046-26010 |
LH51,61,71,YH51,53,61,63,73..(5F,5H)..(ARL,EUR,GEN) |
1 | ||
| 33046-28020 |
LH51,61,71..5H..(ARL,EUR) |
1 | ||
| 33046-26010 |
LH51,61,71,YH5#,61,71..(5F,5H)..(ARL,EUR,GEN) |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-26002 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..5F,5H |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-22010 |
LH51,61,YH61..MTM..EUR N=6,MARK 6X18-20,N=6 |
1 | ||
| 33481-22010 |
LH51,61,YH51,61..MTM..EUR N=6,MARK 6X18-20,N=6 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-06004 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=1.50,OD=31.3 |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM T=1.50,OD=31.3 |
2 | ||
| Common parts | ||||
| 90119-08444 | ||||
