LH51RV-QR (1984)

Toyota Hiace Van,Commuter

Production Jan 1984 - Aug 1985
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8401- )RHD..4H,5H

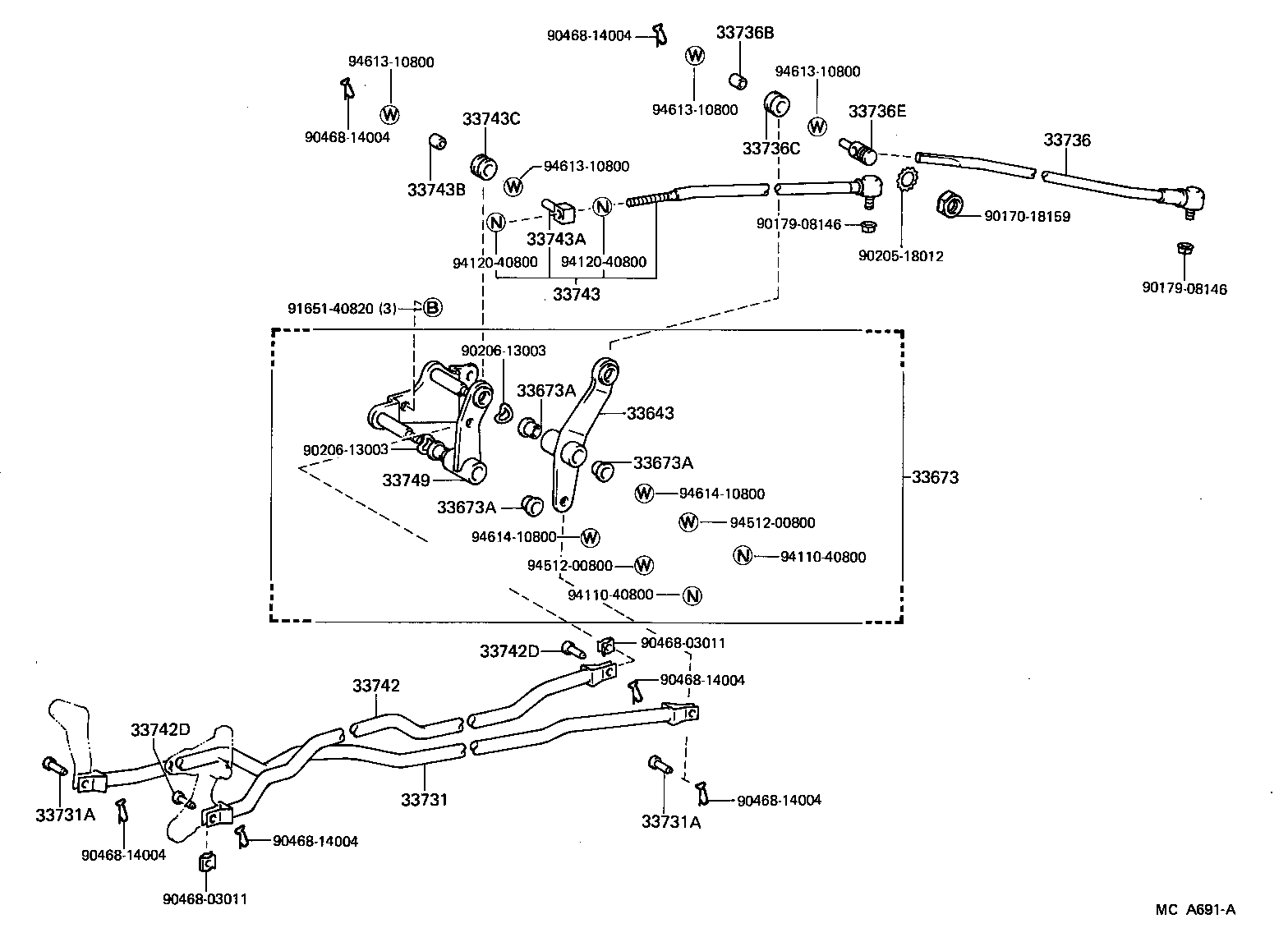

Click highlighted areas on diagram

diagram 33643 33673 33673A 33673A 33673A 33731 33731A 33731A 33736 33736B 33736C 33736E 33742 33742D 33742D 33743 33743A 33743B 33743C 33749 9017018159 9017908146 9017908146 9020518012 9020613003 9020613003 9046803011 9046803011 9046814004 9046814004 9046814004 9046814004 9046814004 9046814004 9165140820 9411040800 9411040800 9412040800 9412040800 9451200800 9451200800 9461310800 9461310800 9461310800 9461310800 9461410800 9461410800
Part # Description Qty Price
33673A - BUSH (FOR CONTROL ROD, NO.2 SUPPORT)
90386-13192

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H

 4
33673A - BUSH (FOR CONTROL ROD, NO.2 SUPPORT)
90386-13192

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H

 4
33673A - BUSH (FOR CONTROL ROD, NO.2 SUPPORT)
90386-13192

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H

 4
33731A - PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD)
90240-08042

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD..(4H,5H)

 2
33731A - PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD)
90240-08042

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD..(4H,5H)

 2
33736B - BUSH(FOR GEAR SELECTING ROD, NO.2)
90389-08005

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD..(4H,5H)

 1
33736C - GROMMET(FOR GEAR SELECTING ROD, NO.2)
90480-17177

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD..(4H,5H)

 1
33736E - SWIVEL, CONNECTING ROD
33723-20010

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD..(4H,5H)

 1
33742D - PIN, W/HOLE
90240-08042

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H

 2
33742D - PIN, W/HOLE
90240-08042

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H

 2
33743A - SWIVEL, CONNECTING ROD
33723-10020

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,5H

 1
33743B - BUSH, NO.1
90389-08005

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H

 1
33743C - GROMMET
90480-17177

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H

 1
Common parts
90170-18159
90179-08146
90205-18012
90206-13003
90468-03011
90468-14004
91651-40820
94110-40800
94120-40800
94512-00800
94613-10800
94614-10800
