LH51RB-QR (1987)
Toyota Hiace Van,Commuter

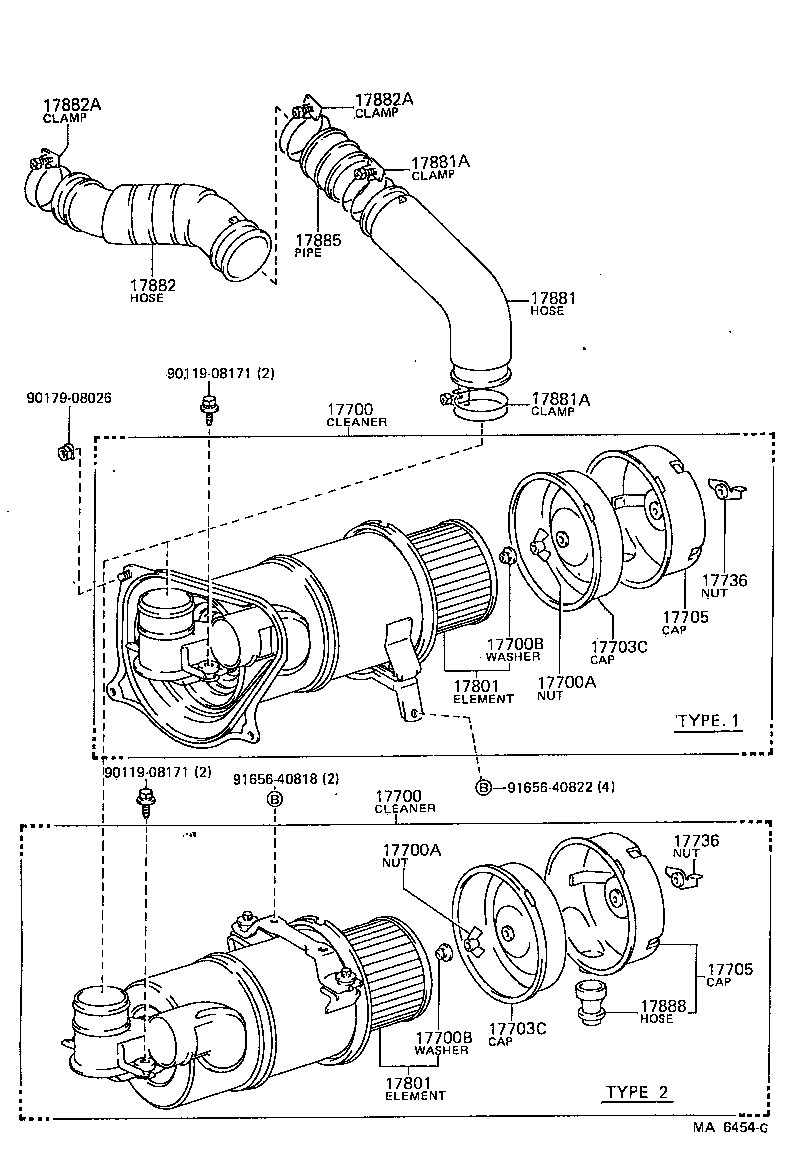

ILLUST NO. 1 OF 3(8708-8908)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73120 |
2L..LH61..V5D;2L..LH51,61,71..RHD |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73120 |
2L..LH61..V5D;2L..LH51,61,71..RHD |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
2L..LH51,61,71 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
2L..LH51,61,71 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08024 |
2L..LH51,61,71 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08024 |
2L..LH51,61,71 |
1 | ||
| 17703C - CAP SUB-ASSY, DUST | ||||
| 17703-64010 |
2L..LH51,61,71 |
1 | ||
| 17703C - CAP SUB-ASSY, DUST | ||||
| 17703-64010 |
2L..LH51,61,71 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-73050 |
2L..LH61..V5D;2L..LH51,61,71..RHD |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-73050 |
2L..LH61..V5D;2L..LH51,61,71..RHD |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
2L..LH51,61,71 |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
2L..LH51,61,71 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-64030 |
2L..LH51,61,71 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-64030 |
2L..LH51,61,71 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54170 |
2L..LH51,61,71 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
2L..LH51,61,71 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
2L..LH51,61,71 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54120 |
2L..LH51,61,71 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
2L..LH51,61,71 PIPE SIDE |
1 | ||
| 96111-10690 |
2L..LH51,61,71 INTAKE MANIFOLD SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
2L..LH51,61,71 PIPE SIDE |
1 | ||
| 96111-10690 |
2L..LH51,61,71 INTAKE MANIFOLD SIDE |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-54080 |
2L..LH51,61,71 |
1 | ||
| 17888 - HOSE, AIR CLEANER DUST DRAIN | ||||
| 17888-73010 |
2L..LH61..V5D;2L..LH51,61,71..RHD |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08026 | ||||
| 91656-40818 | ||||
| 91656-40822 | ||||

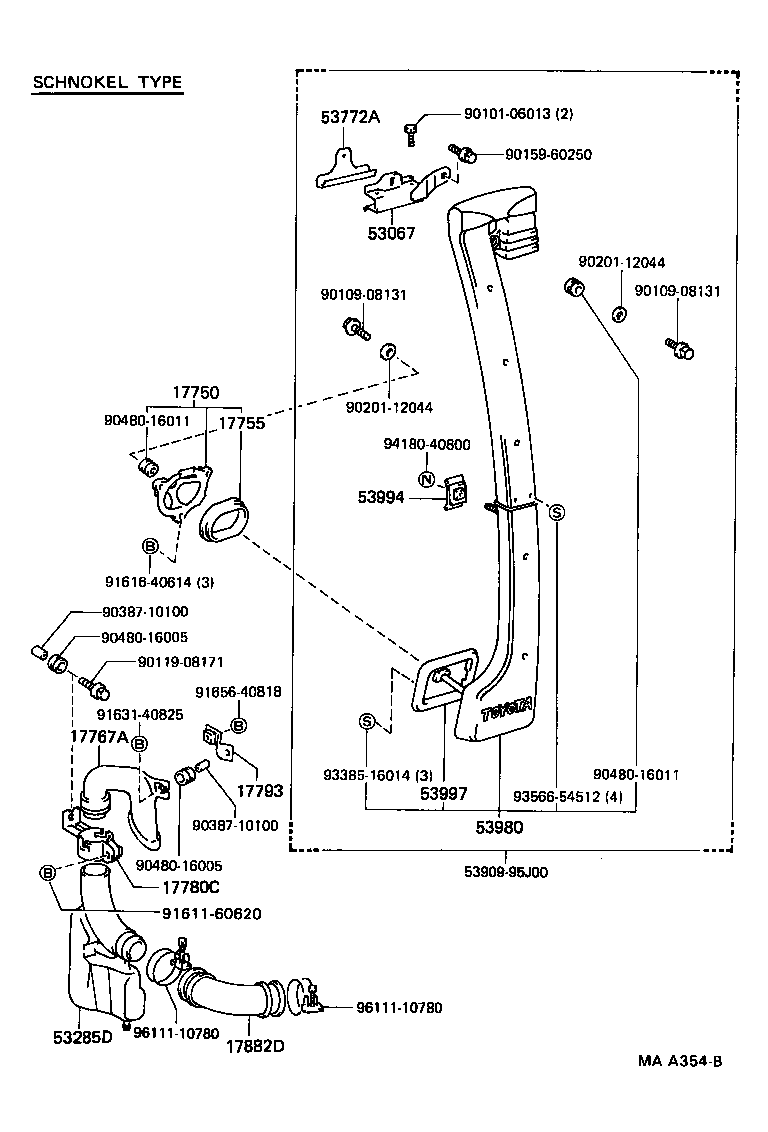

ILLUST NO. 2 OF 3(8708- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17750-95J01 |
2L..LH51,61..GEN |
1 | ||
| 17750-95J01 |
2L..LH51,61..GEN |
1 | ||
| 17755 - SEAL, AIR CLEANER INLET | ||||
| 17755-95J00 |
2L..LH51,61,71 |
1 | ||
| 17755-95J00 |
2L..LH51,61,71 |
1 | ||
| 17755 - SEAL, AIR CLEANER INLET | ||||
| 17755-95J00 |
2L..LH51,61,71 |
1 | ||
| 17755-95J00 |
2L..LH51,61,71 |
1 | ||
| 17767A - DUCT, COOL AIR INTAKE, NO.3 | ||||
| 17767-95J00 |
2L..LH51,61,71 |
1 | ||
| 17767-95J00 |
2L..LH51,61,71 |
1 | ||
| 17780C - CLAMP ASSY, COOL AIR INTAKE DUCT, NO.2 | ||||
| 17780-95J00 |
2L..LH51,61,71 |
1 | ||
| 17780-95J00 |
2L..LH51,61,71 |
1 | ||
| 17793 - BRACKET, COOL AIR INTAKE DUCT, NO.3 | ||||
| 17793-95J00 |
2L..LH51,61,71 |
1 | ||
| 17793-95J00 |
2L..LH51,61,71 |
1 | ||
| 17793 - BRACKET, COOL AIR INTAKE DUCT, NO.3 | ||||
| 17793-95J00 |
2L..LH51,61,71 |
1 | ||
| 17793-95J00 |
2L..LH51,61,71 |
1 | ||
| 17882D - HOSE, COOL AIR INTAKE | ||||
| 17882-95J00 |
2L..LH51,61,71 |
1 | ||
| 17882-95J00 |
2L..LH51,61,71 |
1 | ||
| 53285D - COVER, FRONT BUMPER ARM HOLE | ||||
| 53285-95J00 |
LH51,61,71 |
1 | ||
| 53285-95J00 |
LH51,61,71 |
1 | ||
| 53299A - PLATE, COOL AIR INTAKE DUCT | ||||
| 53299-95J00 |
LH51,61,71 |
1 | ||
| 53299-95J00 |
LH51,61,71 |
1 | ||
| 53709B - BRACKET SUB-ASSY, AIR CLEANER INLET SEAL | ||||
| 53709-95J00 |
LH51,61,71 |
1 | ||
| 53709-95J00 |
LH51,61,71 |
1 | ||
| 53775A - CLAMP, COOL AIR INTAKE DUCT | ||||
| 53775-95J00 |
LH51,61,71 |
1 | ||
| 53775-95J00 |
LH51,61,71 |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90387-10100 | ||||
| 90480-16005 | ||||
| 91611-60620 | ||||
| 91616-40614 | ||||
| 91631-40825 | ||||
| 91656-40818 | ||||
| 96111-10780 | ||||

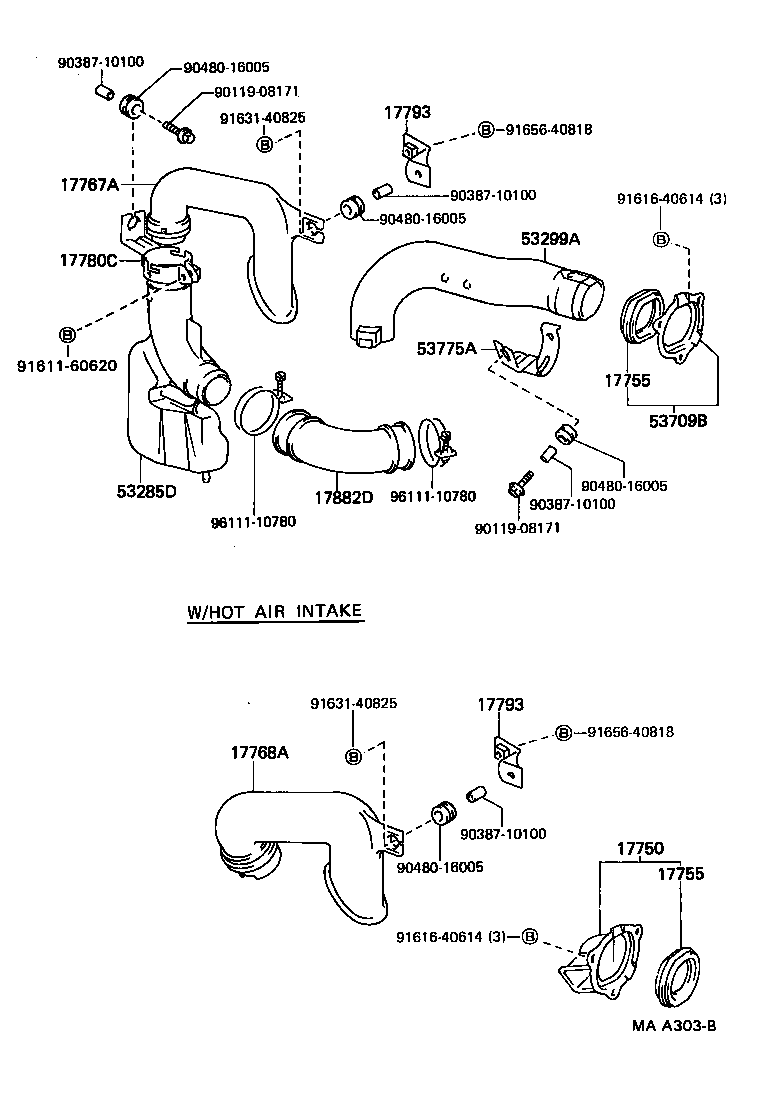

ILLUST NO. 3 OF 3(8708- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17750-95J01 |
2L..LH51,61..GEN |
1 | ||
| 17750-95J01 |
2L..LH51,61..GEN |
1 | ||
| 17755 - SEAL, AIR CLEANER INLET | ||||
| 17755-95J00 |
2L..LH51,61,71 |
1 | ||
| 17755-95J00 |
2L..LH51,61,71 |
1 | ||
| 17767A - DUCT, COOL AIR INTAKE, NO.3 | ||||
| 17767-95J00 |
2L..LH51,61,71 |
1 | ||
| 17767-95J00 |
2L..LH51,61,71 |
1 | ||
| 17780C - CLAMP ASSY, COOL AIR INTAKE DUCT, NO.2 | ||||
| 17780-95J00 |
2L..LH51,61,71 |
1 | ||
| 17780-95J00 |
2L..LH51,61,71 |
1 | ||
| 17793 - BRACKET, COOL AIR INTAKE DUCT, NO.3 | ||||
| 17793-95J00 |
2L..LH51,61,71 |
1 | ||
| 17793-95J00 |
2L..LH51,61,71 |
1 | ||
| 17882D - HOSE, COOL AIR INTAKE | ||||
| 17882-95J00 |
2L..LH51,61,71 |
1 | ||
| 17882-95J00 |
2L..LH51,61,71 |
1 | ||
| 53067 - BRACKET SUB-ASSY, AIR CLEANER INLET | ||||
| 53067-95J00 |
LH51,61..GEN |
1 | ||
| 53067-95J00 |
LH51,61..GEN |
1 | ||
| 53285D - COVER, FRONT BUMPER ARM HOLE | ||||
| 53285-95J00 |
LH51,61,71 |
1 | ||
| 53285-95J00 |
LH51,61,71 |
1 | ||
| 53772A - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53772-95J00 |
LH51,61..GEN |
1 | ||
| 53772-95J00 |
LH51,61..GEN |
1 | ||
| 53980 - INLET ASSY, AIR CLEANER PIPE | ||||
| 53980-95J00 |
LH51,61..GEN |
1 | ||
| 53980-95J00 |
LH51,61..GEN |
1 | ||
| 53994 - RETAINER, AIR CLEANER INLET PIPE | ||||
| 53994-95J00 |
LH51,61..GEN |
1 | ||
| 53994-95J00 |
LH51,61..GEN |
1 | ||
| 53997 - PACKING, AIR CLEANER INLET | ||||
| 53997-95J00 |
LH51,61..GEN |
1 | ||
| 53997-95J00 |
LH51,61..GEN |
1 | ||
| Common parts | ||||
| 53909-95J00 | ||||
| 90101-06013 | ||||
| 90109-08131 | ||||
| 90119-08171 | ||||
| 90159-60250 | ||||
| 90201-12044 | ||||
| 90387-10100 | ||||
| 90480-16005 | ||||
| 90480-16011 | ||||
| 91611-60620 | ||||
| 91616-40614 | ||||
| 91631-40825 | ||||
| 91656-40818 | ||||
| 93385-16014 | ||||
| 93566-54512 | ||||
| 94180-40800 | ||||
| 96111-10780 | ||||
