LH51LV-QRFEW (1984)
Toyota Hiace Van,Commuter
(8212-8508)LH5#,7#,YH51,71 ; (8212-8508)LH6#..03S,06S,15S ; (8212-8508)YH50,60..ARL

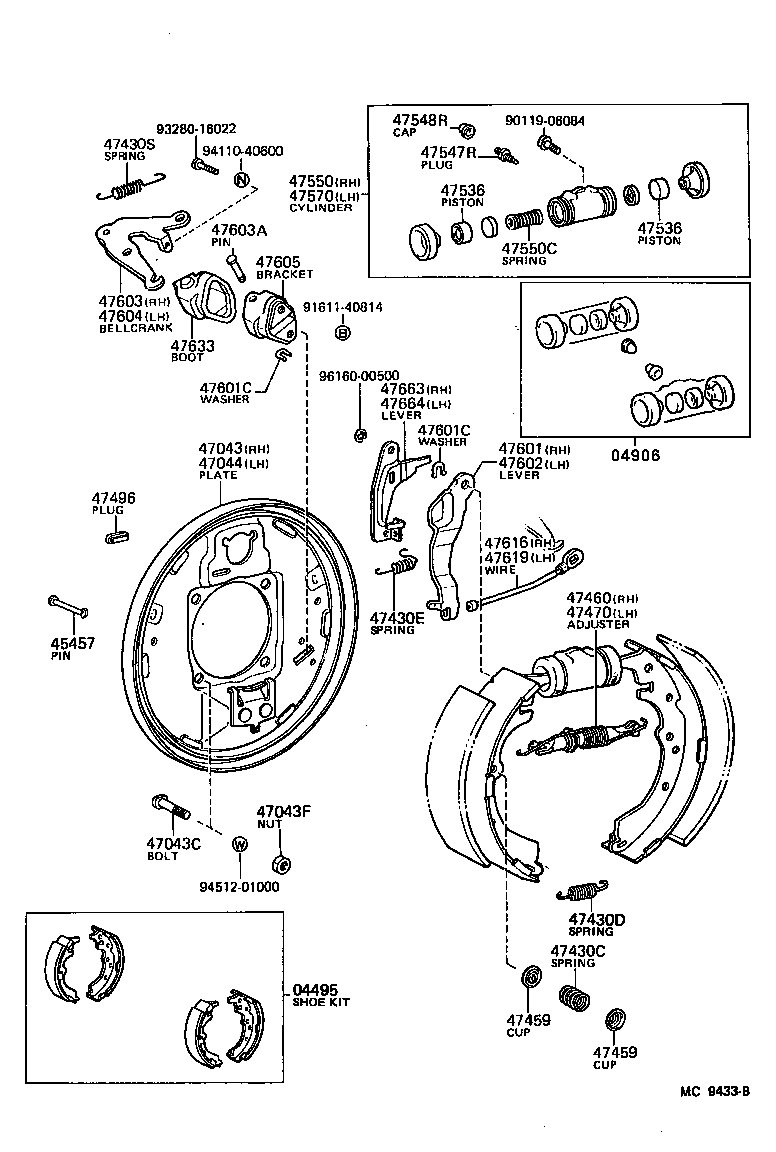

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-35051 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 04495-35051 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-26050 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47043-26050 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
LH5#,6#,7#,YH5#,6#,7# *10-1.25PX37-18.5,*10-1.25PX38-16.5 |
8 | ||
| 90114-10002 |
LH5#,6#,7#,YH5#,6#,7# *10-1.25PX37-18.5,*10-1.25PX38-16.5 |
8 | ||
| 90114-10016 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S *10-1.25PX41-18,*10-1.25PX38-15 |
4 | ||
| 90114-10016 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S *10-1.25PX41-18,*10-1.25PX38-15 |
4 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 90179-10041 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-26050 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47044-26050 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47430A - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26331 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 90506-26331 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47430B - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26331 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 90506-26331 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 90501-20604 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12412 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 90506-12412 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-16343 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 90506-16343 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90508-20262 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S LH |
1 | ||
| 90508-20262 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S LH |
1 | ||
| 90508-20261 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S RH |
1 | ||
| 90508-20261 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S RH |
1 | ||
| 47430S - SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90506-18004 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 90506-18004 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47445R - ROD, REAR WHEEL CYLINDER | ||||
| 47538-35010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47538-35010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47445R - ROD, REAR WHEEL CYLINDER | ||||
| 47538-35010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47538-35010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47456R - PLATE, REAR BRAKE SHOE GUIDE | ||||
| 47456-20010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47456-20010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47447-20010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47458 - BRACKET, REAR BRAKE SHOE RETURN SPRING | ||||
| 47458-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S LH |
1 | ||
| 47458-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S LH |
1 | ||
| 47457-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S RH |
1 | ||
| 47457-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S RH |
1 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 47449-30020 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 47449-30020 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47405-30020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47405-30020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47406-30020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47406-30020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-35040 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47491-35040 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-31011 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
4 | ||
| 47531-31011 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-31011 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
4 | ||
| 47531-31011 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47547-26010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 31478-30010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-29275 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
1 | ||
| 47550-29275 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-22010 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
2 | ||
| 47509-22010 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-29275 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
1 | ||
| 47550-29275 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-26020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47601-26020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.2,T=1.2 |
2 | ||
| 90213-06013 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.2,T=1.2 |
2 | ||
| 90213-07010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.6,T=1.6 |
2 | ||
| 90213-07010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.6,T=1.6 |
2 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.2,T=1.2 |
2 | ||
| 90213-06013 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.2,T=1.2 |
2 | ||
| 90213-07010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.6,T=1.6 |
2 | ||
| 90213-07010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.6,T=1.6 |
2 | ||
| 47601D - WASHER, WAVE(FOR REAR BRAKE) | ||||
| 90206-10059 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 90206-10059 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-26020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47602-26020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47603 - BELLCRANK SUB-ASSY, PARKING BRAKE, RH(FOR REAR BRAKE) | ||||
| 47624-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47624-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47603A - PIN, W/HOLE(FOR REAR BRAKE) | ||||
| 90249-08075 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 90249-08075 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47604 - BELLCRANK SUB-ASSY, PARKING BRAKE, LH (FOR REAR BRAKE) | ||||
| 47625-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47625-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47605 - BRACKET SUB-ASSY, BELL CRANK, RH (FOR REAR BRAKE) | ||||
| 47628-26010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47628-26010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) | ||||
| 47613-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S RH |
1 | ||
| 47613-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S RH |
1 | ||
| 47614-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S LH |
1 | ||
| 47614-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S LH |
1 | ||
| 47616 - WIRE, PARKING BRAKE, RH | ||||
| 47616-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47616-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47619 - WIRE, PARKING BRAKE, LH | ||||
| 47616-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47616-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47633 - BOOT, PARKING BRAKE BELLCRANK | ||||
| 47633-26010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47633-26010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47661 - CABLE, AUTOMATIC ADJUST(FOR REAR BRAKE) | ||||
| 47607-30010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47607-30010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47662 - GUIDE, AUTOMATIC ADJUST CABLE(FOR REAR BRAKE) | ||||
| 47642-20010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47642-20010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47643-20011 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47643-20011 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47643-20011 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47643-20011 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| Common parts | ||||
| 90101-08043 | ||||
| 90143-60002 | ||||
| 91611-40814 | ||||
| 94110-40600 | ||||
| 94512-01000 | ||||
| 94531-00800 | ||||
(8212-8508)YH50,60..N1 ; (8212-8508)YH61..4H,4HC; (8212-8508)YH61..5H..N1 ; (8212-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-35051 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 04495-35051 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-26050 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47043-26050 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
LH5#,6#,7#,YH5#,6#,7# *10-1.25PX37-18.5,*10-1.25PX38-16.5 |
8 | ||
| 90114-10002 |
LH5#,6#,7#,YH5#,6#,7# *10-1.25PX37-18.5,*10-1.25PX38-16.5 |
8 | ||
| 90114-10016 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S *10-1.25PX41-18,*10-1.25PX38-15 |
4 | ||
| 90114-10016 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S *10-1.25PX41-18,*10-1.25PX38-15 |
4 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 90179-10041 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-26050 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47044-26050 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47430A - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26331 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 90506-26331 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47430B - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26331 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 90506-26331 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 90501-20604 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12412 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 90506-12412 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-16343 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 90506-16343 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90508-20262 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S LH |
1 | ||
| 90508-20262 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S LH |
1 | ||
| 90508-20261 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S RH |
1 | ||
| 90508-20261 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S RH |
1 | ||
| 47430S - SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90506-18004 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 90506-18004 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47445R - ROD, REAR WHEEL CYLINDER | ||||
| 47538-35010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47538-35010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47445R - ROD, REAR WHEEL CYLINDER | ||||
| 47538-35010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47538-35010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47456R - PLATE, REAR BRAKE SHOE GUIDE | ||||
| 47456-20010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47456-20010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47447-20010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47458 - BRACKET, REAR BRAKE SHOE RETURN SPRING | ||||
| 47458-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S LH |
1 | ||
| 47458-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S LH |
1 | ||
| 47457-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S RH |
1 | ||
| 47457-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S RH |
1 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 47449-30020 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 47449-30020 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47405-30020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47405-30020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47406-30020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47406-30020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-35040 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47491-35040 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-31011 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
4 | ||
| 47531-31011 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-31011 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
4 | ||
| 47531-31011 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47547-26010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 31478-30010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-29275 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
1 | ||
| 47550-29275 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-22010 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
2 | ||
| 47509-22010 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-29275 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
1 | ||
| 47550-29275 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-26020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47601-26020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.2,T=1.2 |
2 | ||
| 90213-06013 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.2,T=1.2 |
2 | ||
| 90213-07010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.6,T=1.6 |
2 | ||
| 90213-07010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.6,T=1.6 |
2 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.2,T=1.2 |
2 | ||
| 90213-06013 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.2,T=1.2 |
2 | ||
| 90213-07010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.6,T=1.6 |
2 | ||
| 90213-07010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.6,T=1.6 |
2 | ||
| 47601D - WASHER, WAVE(FOR REAR BRAKE) | ||||
| 90206-10059 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 90206-10059 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-26020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47602-26020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47603 - BELLCRANK SUB-ASSY, PARKING BRAKE, RH(FOR REAR BRAKE) | ||||
| 47624-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47624-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47603A - PIN, W/HOLE(FOR REAR BRAKE) | ||||
| 90249-08075 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 90249-08075 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47604 - BELLCRANK SUB-ASSY, PARKING BRAKE, LH (FOR REAR BRAKE) | ||||
| 47625-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47625-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47605 - BRACKET SUB-ASSY, BELL CRANK, RH (FOR REAR BRAKE) | ||||
| 47628-26010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47628-26010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) | ||||
| 47613-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S RH |
1 | ||
| 47613-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S RH |
1 | ||
| 47614-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S LH |
1 | ||
| 47614-35020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S LH |
1 | ||
| 47616 - WIRE, PARKING BRAKE, RH | ||||
| 47616-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47616-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47619 - WIRE, PARKING BRAKE, LH | ||||
| 47616-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47616-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47633 - BOOT, PARKING BRAKE BELLCRANK | ||||
| 47633-26010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47633-26010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47661 - CABLE, AUTOMATIC ADJUST(FOR REAR BRAKE) | ||||
| 47607-30010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47607-30010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47662 - GUIDE, AUTOMATIC ADJUST CABLE(FOR REAR BRAKE) | ||||
| 47642-20010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47642-20010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47643-20011 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47643-20011 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47643-20011 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47643-20011 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| Common parts | ||||
| 90101-08043 | ||||
| 90143-60002 | ||||
| 91611-40814 | ||||
| 94110-40600 | ||||
| 94512-01000 | ||||
| 94531-00800 | ||||
(8212-8508)M1 ; (8508-8708)LH51,61,YH50,51,61..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-35051 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-26050 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
LH5#,6#,7#,YH5#,6#,7# *10-1.25PX37-18.5,*10-1.25PX38-16.5 |
8 | ||
| 90114-10016 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S *10-1.25PX41-18,*10-1.25PX38-15 |
4 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-26050 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12412 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-16343 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47430S - SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90506-18004 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47405-30020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47406-30020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-35040 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-31011 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-31011 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-29275 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-22010 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-29275 |
YH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA) |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-26020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.2,T=1.2 |
2 | ||
| 90213-07010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.6,T=1.6 |
2 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.2,T=1.2 |
2 | ||
| 90213-07010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# T=1.6,T=1.6 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-26020 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47603 - BELLCRANK SUB-ASSY, PARKING BRAKE, RH(FOR REAR BRAKE) | ||||
| 47624-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47603A - PIN, W/HOLE(FOR REAR BRAKE) | ||||
| 90249-08075 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47604 - BELLCRANK SUB-ASSY, PARKING BRAKE, LH (FOR REAR BRAKE) | ||||
| 47625-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47605 - BRACKET SUB-ASSY, BELL CRANK, RH (FOR REAR BRAKE) | ||||
| 47628-26010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47616 - WIRE, PARKING BRAKE, RH | ||||
| 47616-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47619 - WIRE, PARKING BRAKE, LH | ||||
| 47616-26030 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47633 - BOOT, PARKING BRAKE BELLCRANK | ||||
| 47633-26010 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
2 | ||
| 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47643-20011 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47643-20011 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 91611-40814 | ||||
| 93280-16022 | ||||
| 94110-40600 | ||||
| 94512-01000 | ||||
| 96160-00500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
