LH51LV-QRBFW (1984)

Toyota Hiace Van,Commuter

Production Jan 1984 - Aug 1987
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508-8608)LH51,61..LHD..GEN ; (8608-8708)LH51,61..LHD

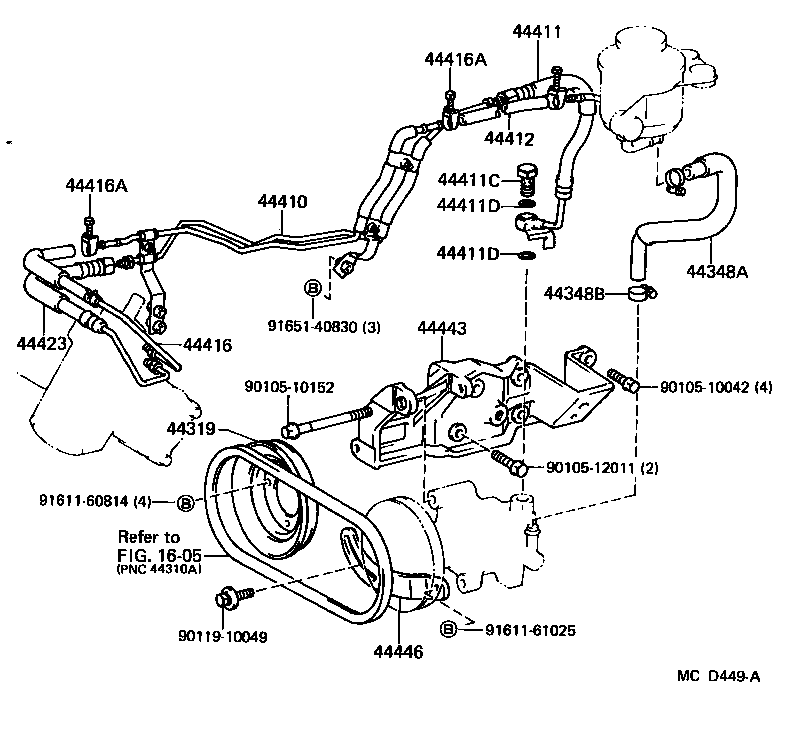

Click highlighted areas on diagram

diagram 1605 44319 44348A 44348B 44410 44411 44411C 44411D 44411D 44412 44416 44416A 44416A 44423 44443 44446 9010510042 9010510152 9010512011 9011910049 9161160814 9161161025 9165140830
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26011

LH51,61..EUR

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

LH5#,6#..EUR

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-26110

LH51,61..LHD

 1
44411 - HOSE, PRESSURE FEED
44411-26011

LH51,61..EUR

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16005

LH5#,6#,YH56,66..EUR

 1
44412 - HOSE, RETURN
90445-18079

LH51,61..EUR

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-26020

LH51,61,YH51,61..LHD

 1
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

LH5#,6#,YH51,56,61,66..EUR

 3
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

LH5#,6#,YH51,56,61,66..EUR

 3
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-26030

LH51,61,YH51,61..LHD

 1
44443 - BRACKET, PUMP
44443-26010

LH51,61..EUR

 1
Common parts
90105-10042
90105-10152
90105-12011
90119-10049
91611-60814
91611-61025
91651-40830
Linked diagrams
1605
