LH51LV-QRBF (1984)

Toyota Hiace Van,Commuter

Production Jan 1984 - Aug 1986
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8401- )LH51,61,71,YH5#,61,63,66,7#..5F,5H

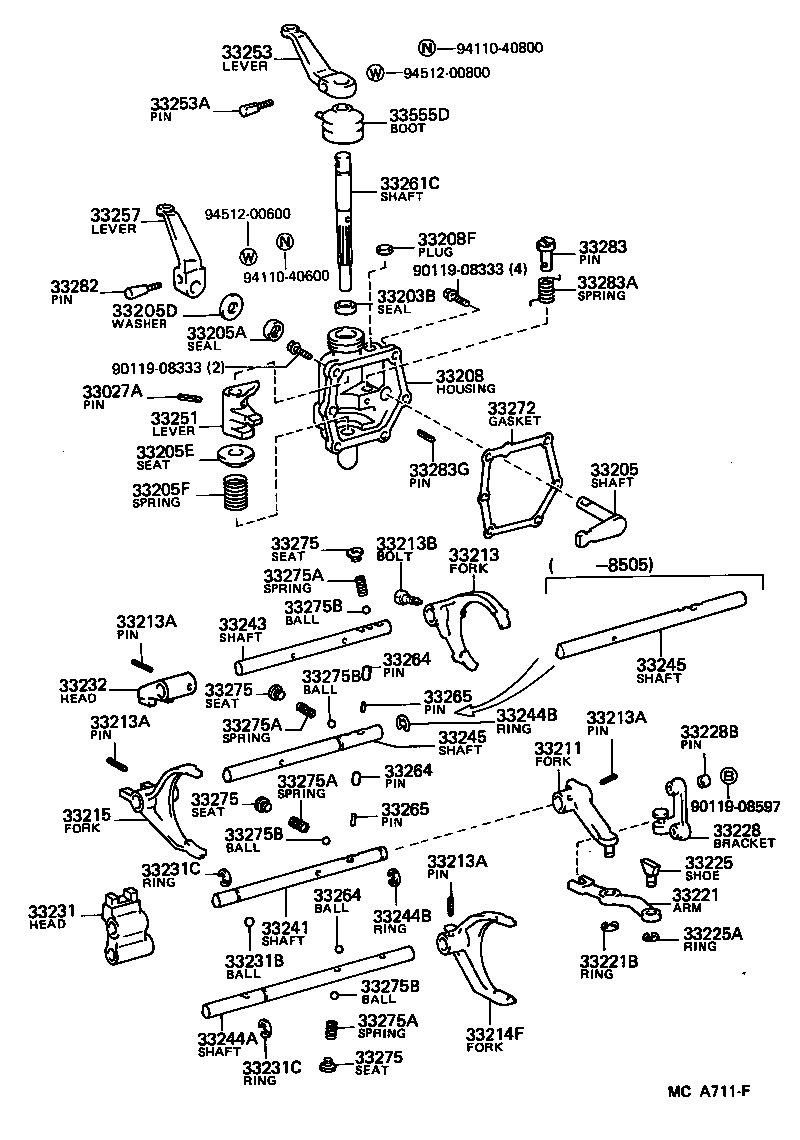

Click highlighted areas on diagram

diagram 33027A 33203B 33205 33205A 33205D 33205E 33205F 33208 33208F 33211 33213 33213A 33213A 33213A 33213A 33213B 33214F 33215 33221 33221B 33225 33225A 33228 33228B 33231 33231B 33231C 33231C 33232 33241 33243 33244A 33244B 33244B 33245 33245 33251 33253 33253A 33257 33261C 33264 33264 33264 33265 33265 33272 33275 33275 33275 33275 33275A 33275A 33275A 33275A 33275B 33275B 33275B 33275B 33282 33283 33283A 33283G 33555D 9011908333 9011908333 9011908597 9411040600 9411040800 9451200600 9451200800
Part # Description Qty Price
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
90313-13001

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LH5#,6#,7#,YH5#,6#,7#..MTM

L=22

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LH5#,6#,7#,YH5#,6#,7#..MTM

L=22

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LH5#,6#,7#,YH5#,6#,7#..MTM

L=22

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LH5#,6#,7#,YH5#,6#,7#..MTM

L=22

 5
33225 - SHOE, SHIFT ARM
33225-35020

LH5#,6#,7#,YH5#,6#,71..MTM

 1
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90523-12001

LH51,61,71,YH5#,6#,71..MTM

 1
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90523-12001

LH51,61,71,YH5#,6#,71..MTM

 1
33245 - SHAFT, 3RD & 4TH SHIFT FORK
33243-28020

LH51,61,71,YH5#,6#,71..MTM

 1
33245 - SHAFT, 3RD & 4TH SHIFT FORK
33243-28020

LH51,61,71,YH5#,6#,71..MTM

 1
33251 - LEVER, SHIFT & SELECT
33251-28011

LH51,61,71,YH51,61,71..MTM

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14061

LH51,61,71,YH5#,61,71..5H

L=18.3,L=18.3

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14061

LH51,61,71,YH5#,61,71..5H

L=18.3,L=18.3

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14061

LH51,61,71,YH5#,61,71..5H

L=18.3,L=18.3

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14061

LH51,61,71,YH5#,61,71..5H

L=18.3,L=18.3

 1
33275B - BALL, SHAFT DETENT
90360-10003

LH50,51,60,61,7#,YH50,51,60,61,7#..MTM

 4
33275B - BALL, SHAFT DETENT
90360-10003

LH50,51,60,61,7#,YH50,51,60,61,7#..MTM

 4
33275B - BALL, SHAFT DETENT
90360-10003

LH50,51,60,61,7#,YH50,51,60,61,7#..MTM

 4
33275B - BALL, SHAFT DETENT
90360-10003

LH50,51,60,61,7#,YH50,51,60,61,7#..MTM

 4
33283 - PIN, REVERSE RESTRICT, NO.1
33283-28010

LH51,61,71,YH5#,61,71..5H

 1
33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
90504-10007

LH51,61,71,YH5#,61,71..5H

 1
Common parts
90119-08333
90119-08597
94110-40600
94110-40800
94512-00600
94512-00800
