LH51LV-QRB (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )MTM

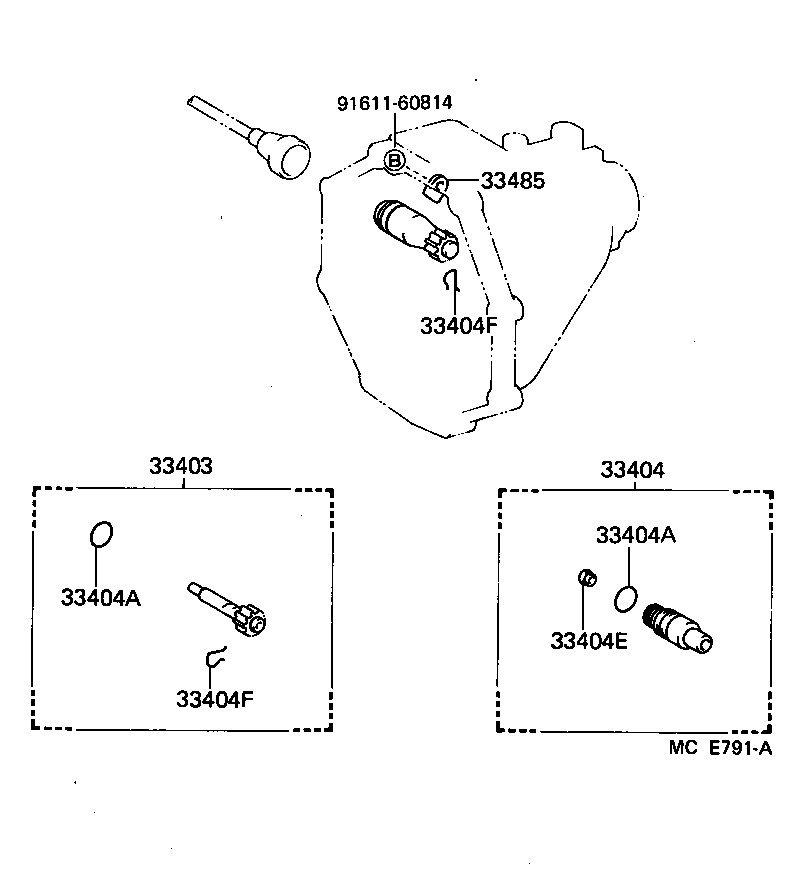

Click highlighted areas on diagram

G45,G53,G55

diagram 33403 33404 33404A 33404A 33404E 33404F 33404F 33485 9161160814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39035

LH61..V..5H;YH63..5H..ARL;LH51,71,YH53,60,73..MTM..(03S,05S,06S,15S)

N=21,MARK 21:6

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-35010

LH51,61,71,YH5#,6#,73..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

LH51,61,71,YH5#,6#,73..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

LH51,61,71,YH5#,6#,73..MTM

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

LH51,61,71,YH5#,6#,73..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

LH51,61,71,YH5#,6#,73..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

LH51,61,71,YH5#,6#,73..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

LH51,61,71,YH5#,6#,73..MTM

 1
Common parts
91611-60814
