LH51LB-QR (1984)

Toyota Hiace Van,Commuter

Production Jan 1984 - Aug 1987
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8508) ; (8508- )ARL,GEN

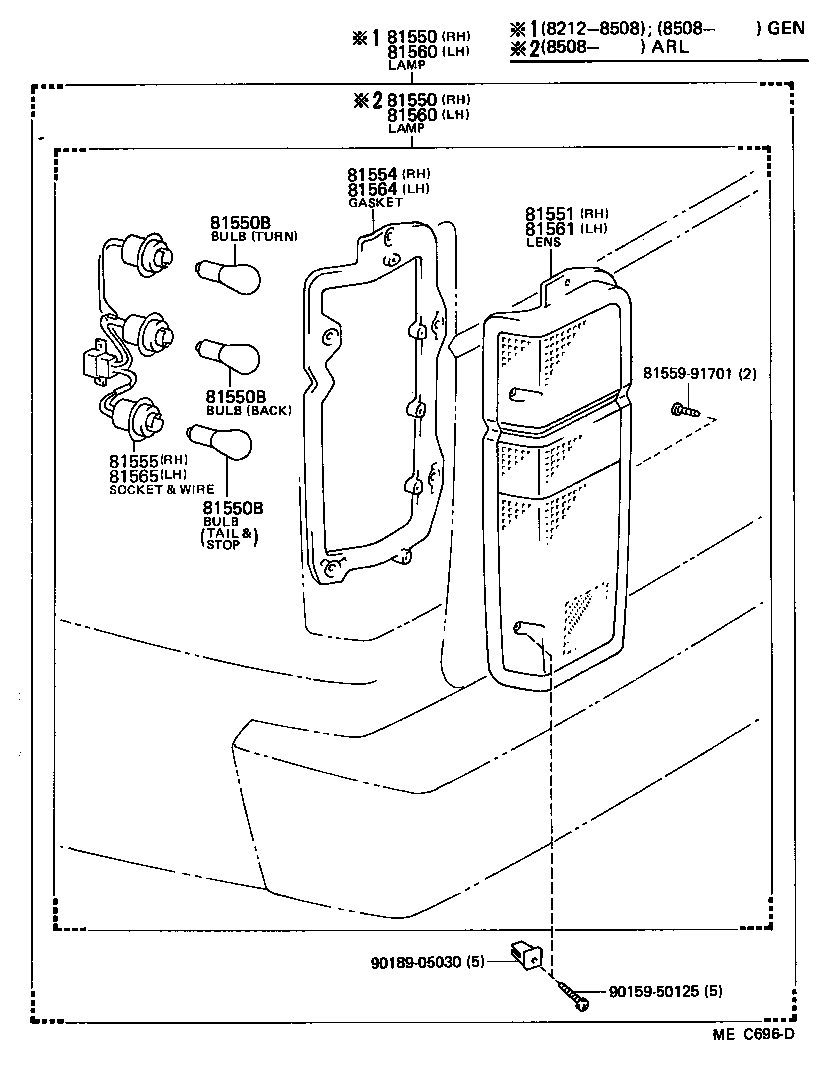

Click highlighted areas on diagram

diagram 81550 81550 81550B 81550B 81550B 81551 81554 81555 8155991701 81560 81560 81561 81564 81565 9015950125 9018905030
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80152

LH50,51,60,61,YH50,51,60,61,63..GEN

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80152

LH50,51,60,61,YH50,51,60,61,63..GEN

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

LH50,51,60,61,YH50,51,60,61,63..GEN

12V 23W,12V 23W(TURN OR BACK)

 4
99132-21210

LH5#,6#,7#,YH5#,6#,7#

12V 21/5W,12V 21/5W(TAIL & STOP)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

LH50,51,60,61,YH50,51,60,61,63..GEN

12V 23W,12V 23W(TURN OR BACK)

 4
99132-21210

LH5#,6#,7#,YH5#,6#,7#

12V 21/5W,12V 21/5W(TAIL & STOP)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

LH50,51,60,61,YH50,51,60,61,63..GEN

12V 23W,12V 23W(TURN OR BACK)

 4
99132-21210

LH5#,6#,7#,YH5#,6#,7#

12V 21/5W,12V 21/5W(TAIL & STOP)

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-95J00

LH50,51,60,61,YH50,51,60,61,63..GEN

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-95J00

YH51..(4FC,4H,5F)..(ARL,GEN);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN

 1
81554-95J00

LH5#,6#,7#,YH5#,6#,71

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-95J00

LH50,51,60,61,YH50,51,60,61,63..GEN

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80157

LH50,51,60,61,YH50,60,61,63..GEN

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80157

LH50,51,60,61,YH50,60,61,63..GEN

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-95J00

LH50,51,60,61,YH50,51,60,61,63..GEN

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-95J00

LH5#,6#,7#,YH5#,6#,71

 1
81564-95J00

YH51..(4FC,4H,5F)..(ARL,GEN);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-95J00

LH50,51,60,61,YH50,51,60,61..GEN

 1
Common parts
81559-91701
90159-50125
90189-05030
