LH51LB-QR (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8908)LH51,61..LHD

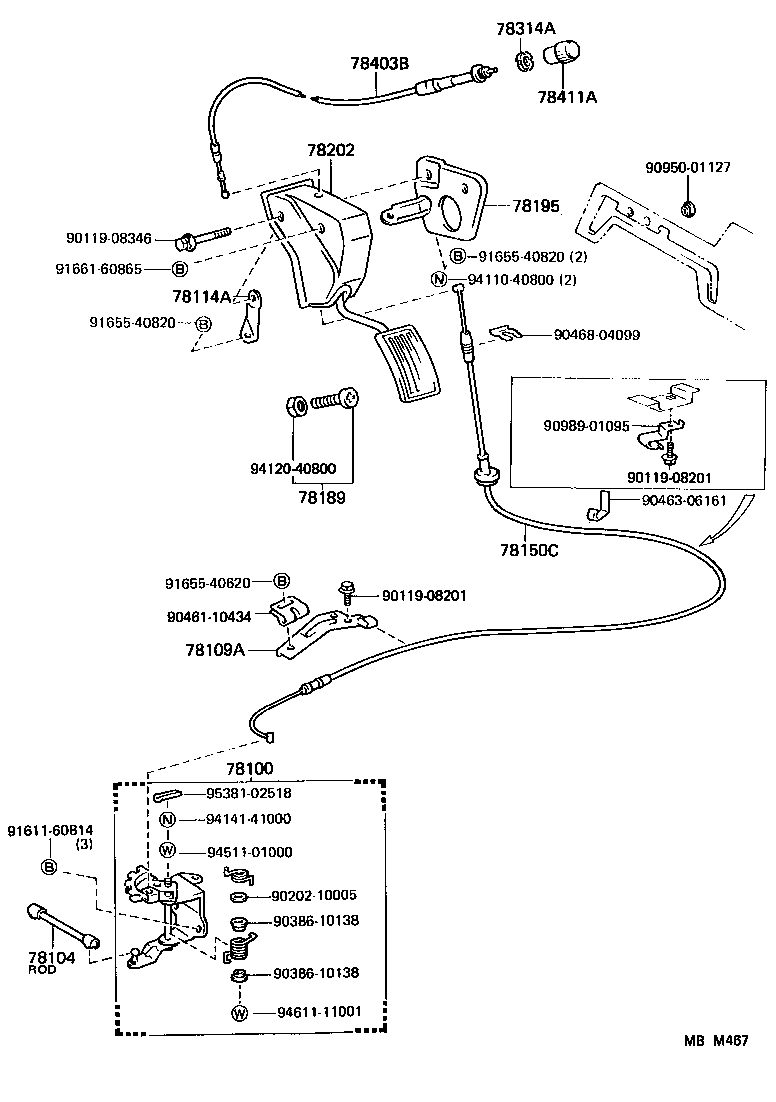

Click highlighted areas on diagram

diagram 78100 78104 78109A 78114A 78150C 78189 78195 78202 78314A 78403B 78411A 9011908201 9011908201 9011908346 9020210005 9038610138 9038610138 9046110434 9046306161 9046804099 9095001127 9098901095 9161160814 9165540620 9165540820 9165540820 9166160865 9411040800 9412040800 9414141000 9451101000 9461111001 9538102518
Part # Description Qty Price
78100 - LINK ASSY, ACCELERATOR
78100-95J06

LH51,61,71..5H

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30120

LH51,61,71

 1
78109A - BRACKET SUB-ASSY, ACCELERATOR WIRE CLAMP
78109-95J00

LH51,61,71

 1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-95J01

LH51,61,YH51,61..LHD

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-95J03

LH51,61..LHD

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95J00

LH51,61,71,YH5#,6#,73

 1
78195 - BRACKET, ACCELERATOR LINK
78014-95J00

LH51,61,YH51,61..LHD

 1
78202 - LINK SUB-ASSY, ACCELERATOR
78202-95J01

LH51,61,YH51,61..LHD

 1
78314A - NUT
78314-95010

LH51,61,71

 1
78403B - ROD SUB-ASSY, THROTTLE
78403-95J04

LH51,61..LHD

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-22010

LH51,61,71

 1
Common parts
90119-08201
90119-08346
90202-10005
90386-10138
90461-10434
90463-06161
90468-04099
90950-01127
90989-01095
91611-60814
91655-40620
91655-40820
91661-60865
94110-40800
94120-40800
94141-41000
94511-01000
94611-11001
95381-02518
