LH50RV-QRE (1982)
Toyota Hiace Van,Commuter

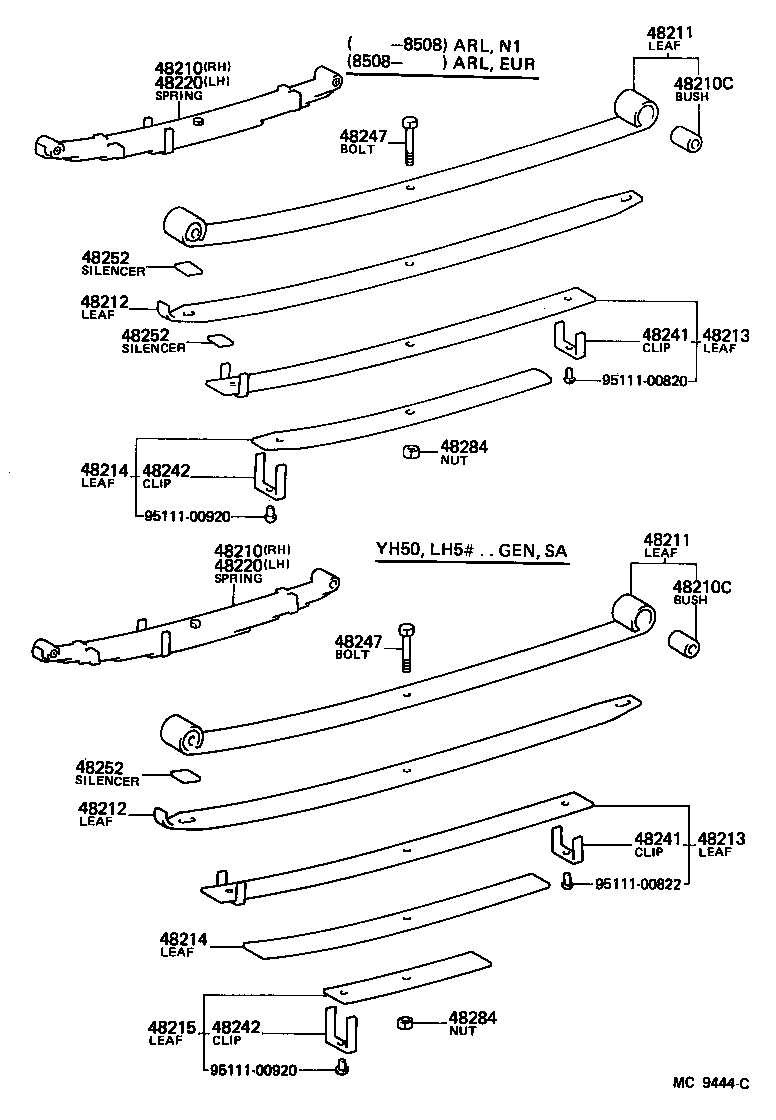

(8212-8508)YH50..N1 ; (8212-8508)YH50..ARL,GEN ;(8212-8508)YH50..12S..EUR ; (8212-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14007 |
LH5#,6#,7#,YH5#,6#,7# |
4 | ||
| 90389-14007 |
LH5#,6#,7#,YH5#,6#,7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14007 |
LH5#,6#,7#,YH5#,6#,7# |
4 | ||
| 90389-14007 |
LH5#,6#,7#,YH5#,6#,7# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26330 |
LH5#,6#,YH50,6#..GEN |
2 | ||
| 48201-26330 |
LH5#,6#,YH50,6#..GEN |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26330 |
LH5#,6#,YH50,6#..GEN |
2 | ||
| 48201-26330 |
LH5#,6#,YH50,6#..GEN |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26330 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48212-26330 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26330 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48212-26330 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26330 |
LH50,51,YH50,51..GEN,SA |
2 | ||
| 48202-26330 |
LH50,51,YH50,51..GEN,SA |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26330 |
LH50,51,YH50,51..GEN,SA |
2 | ||
| 48202-26330 |
LH50,51,YH50,51..GEN,SA |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-26330 |
LH50,51,60,61,YH50,51,60,61,63..GEN,SA |
2 | ||
| 48214-26330 |
LH50,51,60,61,YH50,51,60,61,63..GEN,SA |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-26330 |
LH50,51,60,61,YH50,51,60,61,63..GEN,SA |
2 | ||
| 48214-26330 |
LH50,51,60,61,YH50,51,60,61,63..GEN,SA |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-26330 |
LH50,51,60,61,YH50,51,60,61,63..GEN,SA |
2 | ||
| 48203-26330 |
LH50,51,60,61,YH50,51,60,61,63..GEN,SA |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-36040 |
YH51..MTM;LH51,YH50..N1;LH50..12S..GEN;YH51..4HC..(EUR,SA);LH51,YH50..ARL,GEN,SA;LH50,7#,YH71..03S,06S,15S |
4 | ||
| 48242-36040 |
YH51..MTM;LH51,YH50..N1;LH50..12S..GEN;YH51..4HC..(EUR,SA);LH51,YH50..ARL,GEN,SA;LH50,7#,YH71..03S,06S,15S |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-36040 |
YH51..MTM;LH51,YH50..N1;LH50..12S..GEN;YH51..4HC..(EUR,SA);LH51,YH50..ARL,GEN,SA;LH50,7#,YH71..03S,06S,15S |
4 | ||
| 48242-36040 |
YH51..MTM;LH51,YH50..N1;LH50..12S..GEN;YH51..4HC..(EUR,SA);LH51,YH50..ARL,GEN,SA;LH50,7#,YH71..03S,06S,15S |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-26250 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH50,6#..03S,06S,15S;LH51,YH50,60..ARL,GEN,SA |
2 | ||
| 48241-26250 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH50,6#..03S,06S,15S;LH51,YH50,60..ARL,GEN,SA |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-26250 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH50,6#..03S,06S,15S;LH51,YH50,60..ARL,GEN,SA |
2 | ||
| 48241-26250 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH50,6#..03S,06S,15S;LH51,YH50,60..ARL,GEN,SA |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26280 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48247-26280 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26280 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48247-26280 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 48252-26070 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 48252-26070 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 48252-26070 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 48299-28010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 48299-28010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| Common parts | ||||
| 95111-00820 | ||||
| 95111-00822 | ||||
| 95111-00920 | ||||

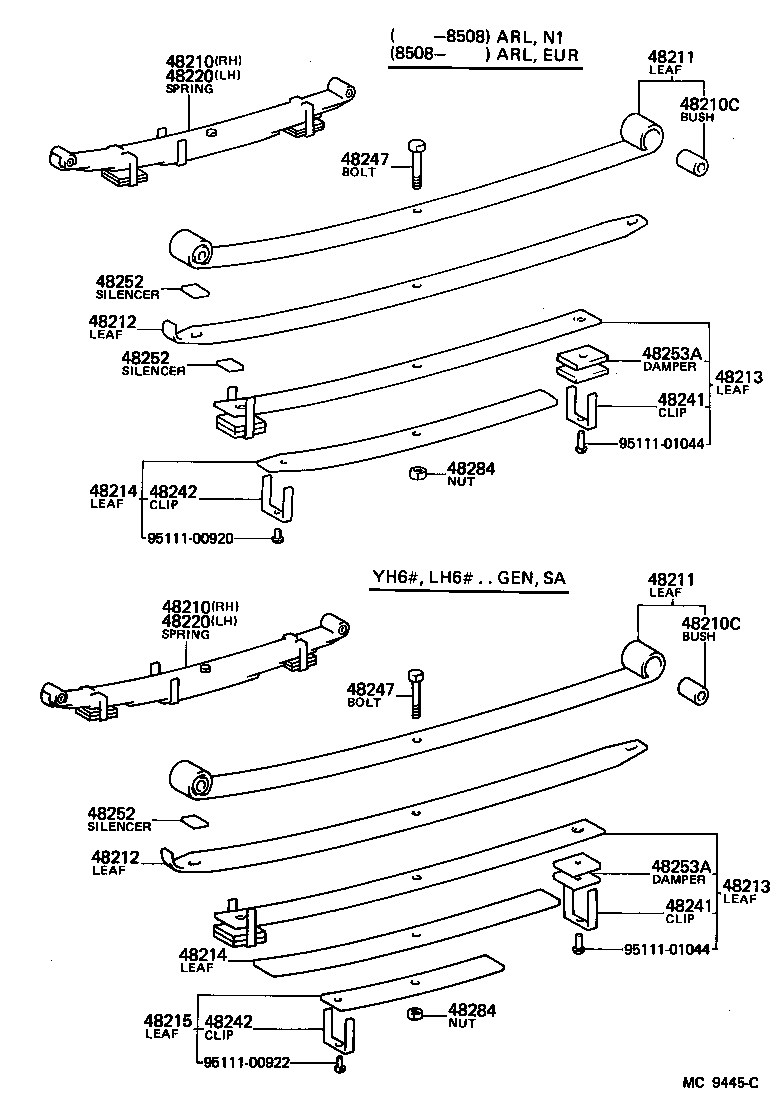

(8212-8508)YH60..N1 ; (8212-8508)YH61..4H,4HC ;(8212-8508)YH61..5H..N1 ; (8212-850
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14007 |
LH5#,6#,7#,YH5#,6#,7# |
4 | ||
| 90389-14007 |
LH5#,6#,7#,YH5#,6#,7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14007 |
LH5#,6#,7#,YH5#,6#,7# |
4 | ||
| 90389-14007 |
LH5#,6#,7#,YH5#,6#,7# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26330 |
LH5#,6#,YH50,6#..GEN |
2 | ||
| 48201-26330 |
LH5#,6#,YH50,6#..GEN |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26330 |
LH5#,6#,YH50,6#..GEN |
2 | ||
| 48201-26330 |
LH5#,6#,YH50,6#..GEN |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26330 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48212-26330 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26330 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48212-26330 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26330 |
LH50,51,YH50,51..GEN,SA |
2 | ||
| 48202-26330 |
LH50,51,YH50,51..GEN,SA |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26330 |
LH50,51,YH50,51..GEN,SA |
2 | ||
| 48202-26330 |
LH50,51,YH50,51..GEN,SA |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-26330 |
LH50,51,60,61,YH50,51,60,61,63..GEN,SA |
2 | ||
| 48214-26330 |
LH50,51,60,61,YH50,51,60,61,63..GEN,SA |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-26330 |
LH50,51,60,61,YH50,51,60,61,63..GEN,SA |
2 | ||
| 48214-26330 |
LH50,51,60,61,YH50,51,60,61,63..GEN,SA |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-26330 |
LH50,51,60,61,YH50,51,60,61,63..GEN,SA |
2 | ||
| 48203-26330 |
LH50,51,60,61,YH50,51,60,61,63..GEN,SA |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48210-26330 |
LH50,51,YH50,51..GEN,SA |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-36040 |
YH51..MTM;LH51,YH50..N1;LH50..12S..GEN;YH51..4HC..(EUR,SA);LH51,YH50..ARL,GEN,SA;LH50,7#,YH71..03S,06S,15S |
4 | ||
| 48242-36040 |
YH51..MTM;LH51,YH50..N1;LH50..12S..GEN;YH51..4HC..(EUR,SA);LH51,YH50..ARL,GEN,SA;LH50,7#,YH71..03S,06S,15S |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-36040 |
YH51..MTM;LH51,YH50..N1;LH50..12S..GEN;YH51..4HC..(EUR,SA);LH51,YH50..ARL,GEN,SA;LH50,7#,YH71..03S,06S,15S |
4 | ||
| 48242-36040 |
YH51..MTM;LH51,YH50..N1;LH50..12S..GEN;YH51..4HC..(EUR,SA);LH51,YH50..ARL,GEN,SA;LH50,7#,YH71..03S,06S,15S |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-26250 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH50,6#..03S,06S,15S;LH51,YH50,60..ARL,GEN,SA |
2 | ||
| 48241-26250 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH50,6#..03S,06S,15S;LH51,YH50,60..ARL,GEN,SA |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-26250 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH50,6#..03S,06S,15S;LH51,YH50,60..ARL,GEN,SA |
2 | ||
| 48241-26250 |
YH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH50,6#..03S,06S,15S;LH51,YH50,60..ARL,GEN,SA |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26280 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48247-26280 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26280 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48247-26280 |
LH5#,6#,YH50,6#..GEN,SA |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 48252-26070 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 48252-26070 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 48252-26070 |
LH5#,6#,7#,YH5#,6#,7# |
8 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 48299-28010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 48299-28010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| Common parts | ||||
| 95111-00920 | ||||
| 95111-00922 | ||||
| 95111-01044 | ||||
(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26060 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-26050 |
LH50,60,70,YH5#,6#,71 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14204 |
LH5#,6#,YH5#,6#..GEN,SA |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-26050 |
LH50,60,70,YH5#,6#,71 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-26010 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 48345 - PLATE, BUMPER SUB | ||||
| 48345-26010 |
LH50,60,YH50,6#..GEN,SA |
2 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-26080 |
LH50,51,60,61,YH50,51,60,61,63..GEN,SA |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-26030 |
YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-26030 |
YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
4 | ||
| 48373 - SPACER, REAR SPRING | ||||
| 48037-26030 |
YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80020 |
LH50,60,70,YH50,6#,71..ARL,GEN,SA |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
LH50,60,70,YH50,6#,71 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
LH50,60,70,YH50,6#,71 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03012 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
LH50,60,70,YH5#,6#,71 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
LH50,60,70,YH5#,6#,71 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80020 |
LH50,60,70,YH50,6#,71..ARL,GEN,SA |
1 | ||
| Common parts | ||||
| 90101-14021 | ||||
| 90105-14020 | ||||
| 90170-14012 | ||||
| 91611-40820 | ||||
| 91611-40830 | ||||
| 91611-41020 | ||||
| 94184-01400 | ||||
| 94512-01400 | ||||
| 94621-11400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
