LH50RV-QRE (1982)
Toyota Hiace Van,Commuter

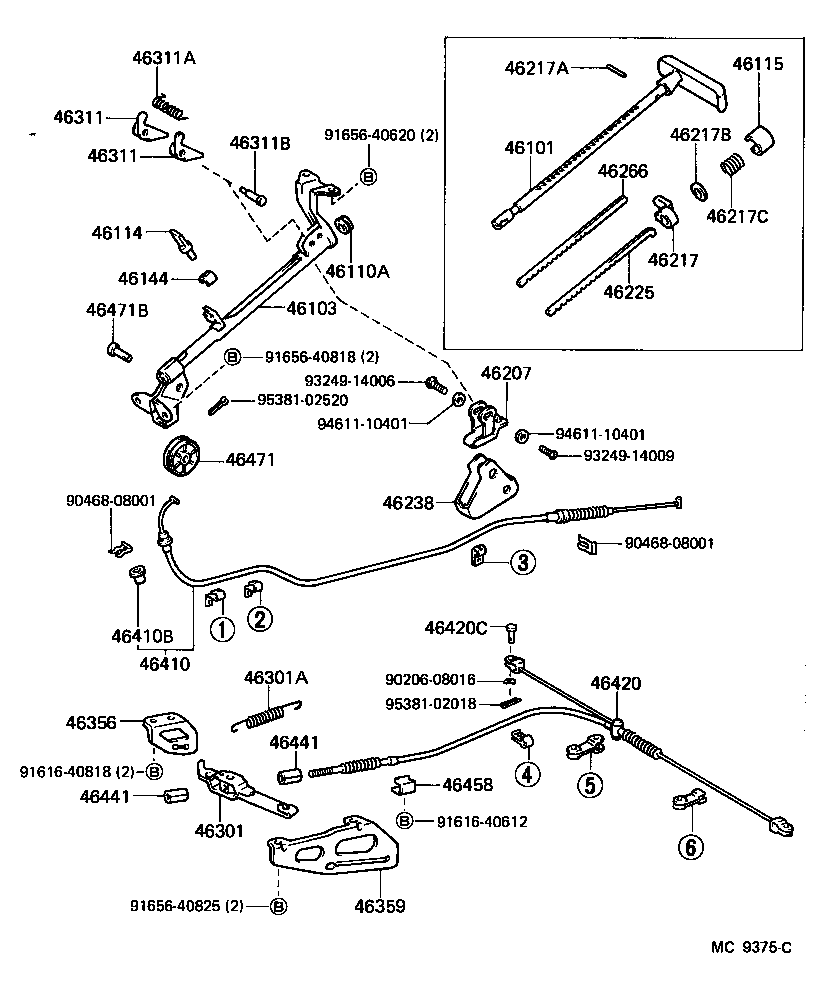

(8212-8401)ARL ; (8308-8401)LH50,YH50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-26080 |
LH50,YH50..RHD..06S NEW ZEALAND SPEC |
1 | ||
| 46101-26061 |
LH50,60,YH5#,6#..RHD..(EUR,GEN,SA) |
1 | ||
| 46101-26060 |
LH50,60,YH5#,6#..RHD..(EUR,GEN,SA) |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-26100 |
LH50,YH50..RHD..06S NEW ZEALAND SPEC |
1 | ||
| 46103-26080 |
LH50,60,YH5#,6#..RHD..(EUR,GEN,SA) |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 46207 - PIN SUB-ASSY, PLUNGER LOCK | ||||
| 46207-35010 |
LH50,YH50..RHD..06S NEW ZEALAND SPEC |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-35010 |
LH50,YH50..RHD..06S NEW ZEALAND SPEC |
1 | ||
| 46217A - PIN, SLOTTED SPRING(FOR PARKING BRAKE RELEASE ROD KNOB) | ||||
| 90254-02002 |
LH50,YH50..RHD..06S NEW ZEALAND SPEC |
1 | ||
| 46217B - WASHER, PLATE(FOR PARKING BRAKE RELEASE ROD KNOB) | ||||
| 90201-12017 |
LH50,YH50..RHD..06S NEW ZEALAND SPEC |
1 | ||
| 46217C - SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE ROD KNOB) | ||||
| 90501-10023 |
LH50,YH50..RHD..06S NEW ZEALAND SPEC |
1 | ||
| 46225 - ROD, PARKING BRAKE PAWL RELEASE | ||||
| 46225-35030 |
LH50,YH50..RHD..06S NEW ZEALAND SPEC |
1 | ||
| 46238 - PROTECTOR, PLUNGER LOCK PIN | ||||
| 46238-35010 |
LH50,YH50..RHD..06S NEW ZEALAND SPEC |
1 | ||
| 46266 - HOLDER, PLUNGER LOCK PIN | ||||
| 46266-35010 |
LH50,YH50..RHD..06S NEW ZEALAND SPEC |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-26020 |
LH5#,6#,7#,YH6#,71 |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-20007 |
LH5#,6#,7#,YH6#,71 |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-30041 |
LH50,60,70,YH5#,6#,71 |
2 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-30041 |
LH50,60,70,YH5#,6#,71 |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
LH50,60,YH5#,6#..EUR,GEN,SA |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 46313-40010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 46356 - BRACKET, EQUALIZER SUPPORT | ||||
| 46356-26040 |
LH5#,6#,7#,YH6#,71 |
1 | ||
| 46359 - GUIDE, PARKING BRAKE INTERMEDIATE LEVER | ||||
| 46359-26030 |
LH5#,6#,7#,YH6#,71 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26170 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90480-20004 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-26080 |
YH51..N1;YH51..4H..ARL;LH5#,YH50..ARL,EUR,GEN |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08028 |
LH5#,6#,7#,YH6#,71 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LH5#,6#,7#,YH6#,71 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LH5#,6#,7#,YH6#,71 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| Common parts | ||||
| 90206-08016 | ||||
| 90468-08001 | ||||
| 91616-40612 | ||||
| 91616-40818 | ||||
| 91656-40620 | ||||
| 91656-40818 | ||||
| 91656-40825 | ||||
| 93249-14006 | ||||
| 93249-14009 | ||||
| 94611-10401 | ||||
| 95381-02018 | ||||
| 95381-02520 | ||||

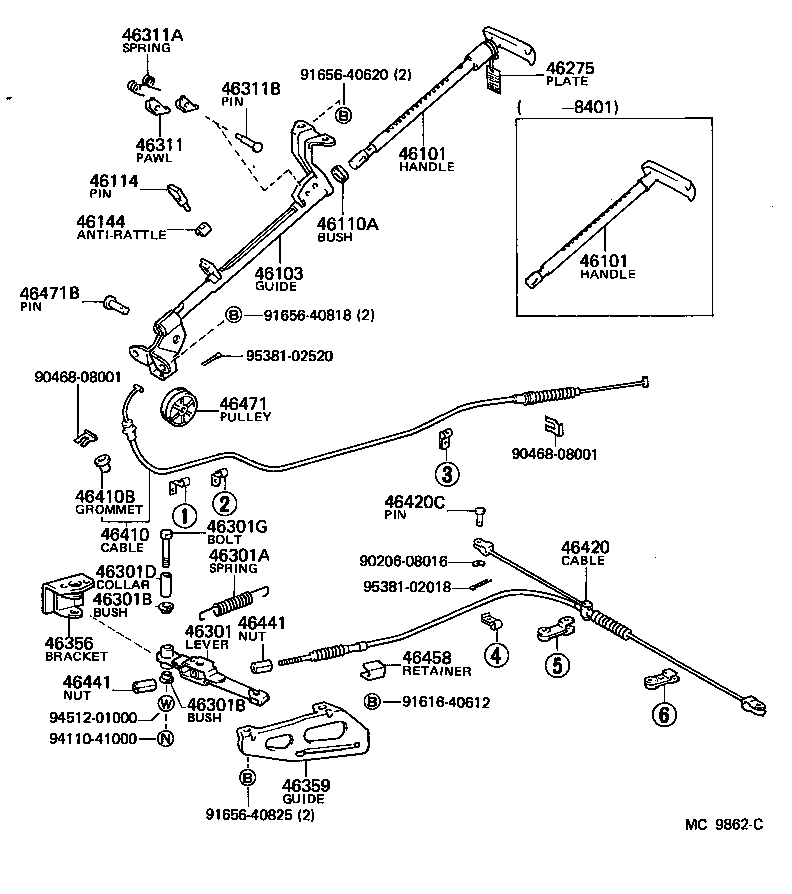

(8212-8401)LH50,60,YH6#..EUR,GEN,SA ; (8212-)YH50,51..EUR,GEN ; (8212- )LH51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-26080 |
LH50,YH50..RHD..06S NEW ZEALAND SPEC |
1 | ||
| 46101-26061 |
LH50,60,YH5#,6#..RHD..(EUR,GEN,SA) |
1 | ||
| 46101-26060 |
LH50,60,YH5#,6#..RHD..(EUR,GEN,SA) |
1 | ||
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-26080 |
LH50,YH50..RHD..06S NEW ZEALAND SPEC |
1 | ||
| 46101-26061 |
LH50,60,YH5#,6#..RHD..(EUR,GEN,SA) |
1 | ||
| 46101-26060 |
LH50,60,YH5#,6#..RHD..(EUR,GEN,SA) |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-26100 |
LH50,YH50..RHD..06S NEW ZEALAND SPEC |
1 | ||
| 46103-26080 |
LH50,60,YH5#,6#..RHD..(EUR,GEN,SA) |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-26020 |
LH5#,6#,7#,YH6#,71 |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-20007 |
LH5#,6#,7#,YH6#,71 |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-30041 |
LH50,60,70,YH5#,6#,71 |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
LH50,60,YH5#,6#..EUR,GEN,SA |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 46313-40010 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 46356 - BRACKET, EQUALIZER SUPPORT | ||||
| 46356-26040 |
LH5#,6#,7#,YH6#,71 |
1 | ||
| 46359 - GUIDE, PARKING BRAKE INTERMEDIATE LEVER | ||||
| 46359-26030 |
LH5#,6#,7#,YH6#,71 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26170 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90480-20004 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-26080 |
YH51..N1;YH51..4H..ARL;LH5#,YH50..ARL,EUR,GEN |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08028 |
LH5#,6#,7#,YH6#,71 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LH5#,6#,7#,YH6#,71 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LH5#,6#,7#,YH6#,71 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| Common parts | ||||
| 90206-08016 | ||||
| 90468-08001 | ||||
| 91616-40612 | ||||
| 91656-40620 | ||||
| 91656-40818 | ||||
| 91656-40825 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 95381-02018 | ||||
| 95381-02520 | ||||
(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-35020 |
LH5#,6#,7#,YH6#,71 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LH5#,6#,7#,YH6#,71 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LH5#,6#,7#,YH6#,71 |
2 | ||
| 46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP) | ||||
| 90480-21518 |
LH5#,6#,7#,YH6#,71 |
1 | ||
| 46459 - GUIDE, CABLE | ||||
| 46459-30010 |
LH5#,6#,7#,YH6#,71 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-30020 |
LH5#,6#,7#,YH6#,71 |
2 | ||
| 46469A - BUSH, CABLE GUIDE SUPPORT LEVER | ||||
| 90385-12029 |
LH5#,6#,7#,YH6#,71 |
2 | ||
| 46469A - BUSH, CABLE GUIDE SUPPORT LEVER | ||||
| 90385-12029 |
LH5#,6#,7#,YH6#,71 |
2 | ||
| Common parts | ||||
| 90109-08022 | ||||
| 90179-08146 | ||||
| 90461-08028 | ||||
| 90461-08595 | ||||
| 90461-12159 | ||||
| 90462-10070 | ||||
| 90949-01062 | ||||
| 90949-01344 | ||||
| 90949-01345 | ||||
| 90949-01346 | ||||
| 91611-40816 | ||||
| 91611-60816 | ||||
| 91616-40818 | ||||
| 91651-60616 | ||||
| 94110-40600 | ||||
