LH50RV-QRBW (1982)
Toyota Hiace Van,Commuter
(8212-8508) ; (8508- )YH51,61,71 ; (8508-)LH51,61,YH50,53,56,60,63,66..EUR,G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

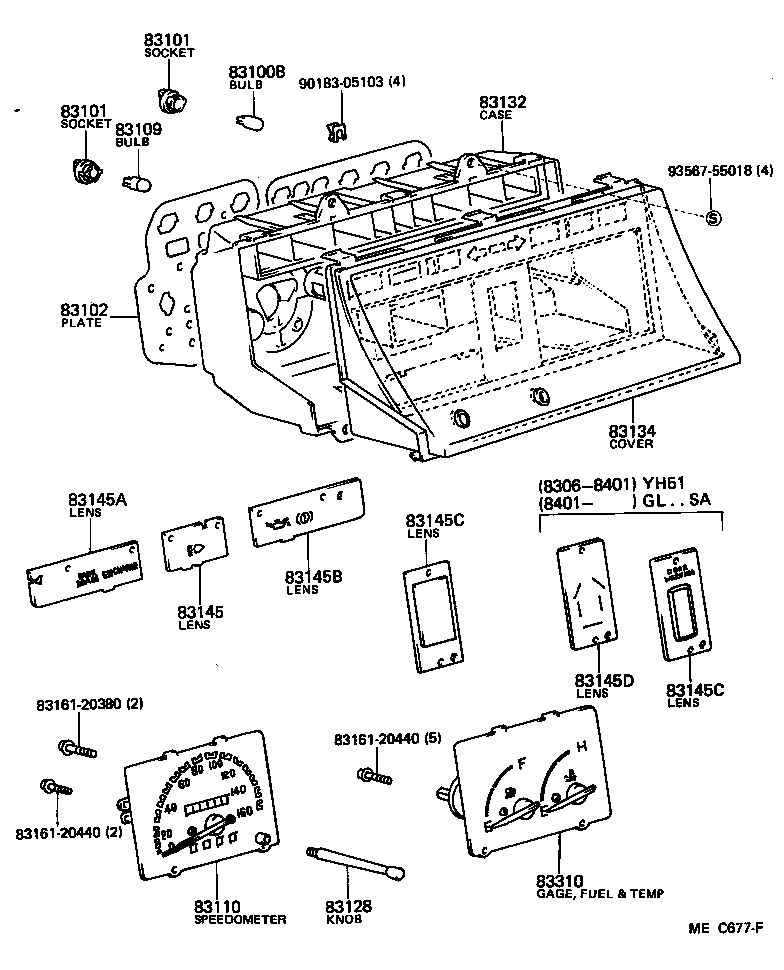

| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LH5#,6#,7# 12V 1.2W W/O SOCKET,12V 1.4W |
3 | ||
| 99132-12034 |
LH5#,6#,7#,YH5#,6#,7# 12V 3.4W,12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH5#,6#,7#,YH5#,6#,7# BULB:12V 3.4W |
14 | ||
| 83101-14040 |
LH5#,6#,7# BULB:12V 1.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH5#,6#,7#,YH5#,6#,7# BULB:12V 3.4W |
14 | ||
| 83101-14040 |
LH5#,6#,7# BULB:12V 1.4W |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95J10 |
LH5#,6#,7# |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95J06 |
LH5#,6#..RHD..EUR MILE & KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95J01 |
LH5#,6#,7# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J01 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95J06 |
YH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..EUR,GEN,SA;LH51..(03S,06S,12S)..(EUR,GEN);YH50..4H..(03S,06S,12S)..(EUR,GEN,SA) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95J07 |
LH5#,6#,YH5#,6#..EUR,GEN,SA |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95J14 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN BLIND |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95J14 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN BLIND |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95J04 |
LH5#,6#..EUR,GEN |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20440 | ||||
| 90183-05103 | ||||
| 93567-55018 | ||||
(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LH5#,6#,7# 12V 1.2W W/O SOCKET,12V 1.4W |
3 | ||
| 99132-12034 |
LH5#,6#,7#,YH5#,6#,7# 12V 3.4W,12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH5#,6#,7#,YH5#,6#,7# BULB:12V 3.4W |
14 | ||
| 83101-14040 |
LH5#,6#,7# BULB:12V 1.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH5#,6#,7#,YH5#,6#,7# BULB:12V 3.4W |
14 | ||
| 83101-14040 |
LH5#,6#,7# BULB:12V 1.4W |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95J10 |
LH5#,6#,7# |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95J06 |
LH5#,6#..RHD..EUR MILE & KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95J01 |
LH5#,6#,7# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J01 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95J06 |
YH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..EUR,GEN,SA;LH51..(03S,06S,12S)..(EUR,GEN);YH50..4H..(03S,06S,12S)..(EUR,GEN,SA) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95J07 |
LH5#,6#,YH5#,6#..EUR,GEN,SA |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95J04 |
LH5#,6#..EUR,GEN |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20480 | ||||
| 90183-05103 | ||||
| 93567-55018 | ||||
(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95J02 |
LH50,51,60,61,7#..RHD..5H |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-95700 | ||||
| 83791-95J00 | ||||
| 83791-95J02 | ||||
| 83791-95J03 | ||||
| 83791-95J04 | ||||
| 83791-95J05 | ||||
| 90461-10595 | ||||
| 90461-10597 | ||||
| 90461-10632 | ||||
| 90464-00165 | ||||
| 90464-00301 | ||||
| 91461-10596 | ||||
| 91611-60816 | ||||
(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-95J01 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J01 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN |
1 | ||
| 83911 - COVER, CLOCK | ||||
| 83911-95J0008 |
YH51..N1;YH51..4H..ARL;LH5#,6#,YH50,6#..ARL,EUR,GEN IVORY,IVORY |
1 | ||
| 83915 - BRACKET, CLOCK | ||||
| 83915-95J00 |
YH51..N1;YH51..4H..ARL;LH5#,6#,YH50,6#..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90149-50027 | ||||
| 90159-40071 | ||||
| 93249-25010 | ||||
| Linked diagrams | ||||
| 6452 | ||||
