LH50RV-QRB (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )MTM

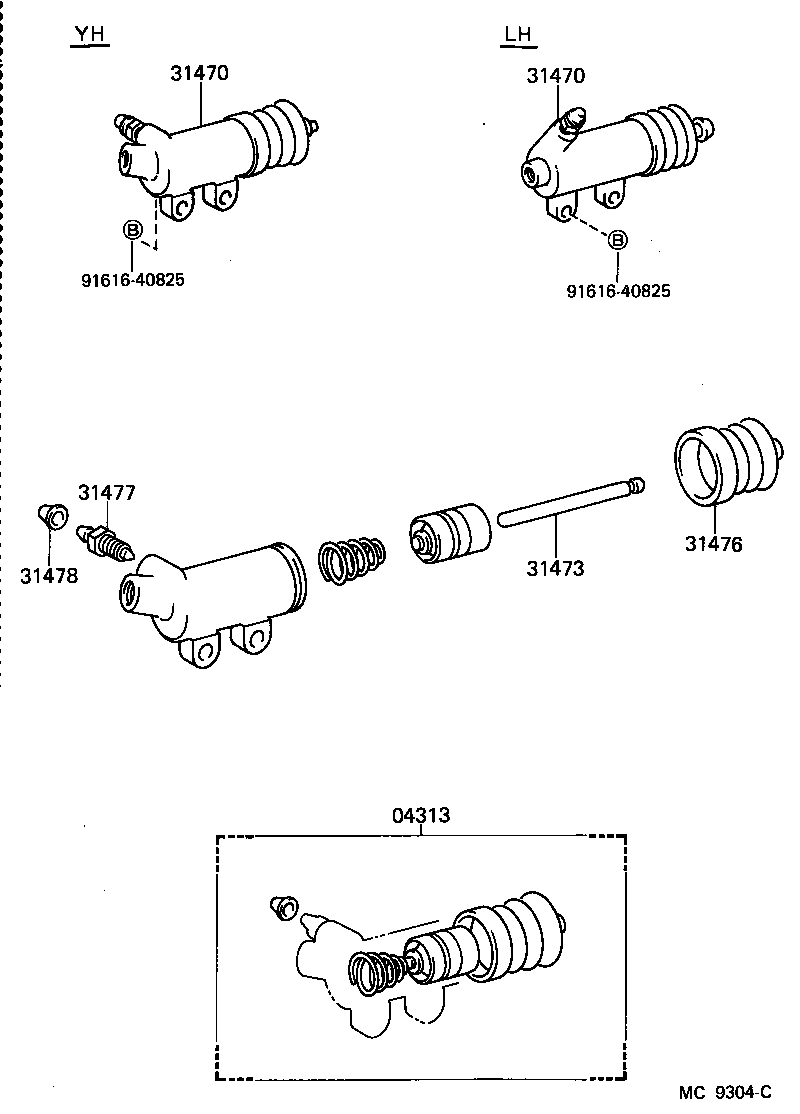

Click highlighted areas on diagram

diagram 04313 31470 31470 31473 31476 31477 31478 9161640825 9161640825
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-22020

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-26050

LH50,60,70..5H

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-26050

LH50,60,70..5H

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-35040

LH50,60,70..5H

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
Common parts
91616-40825
