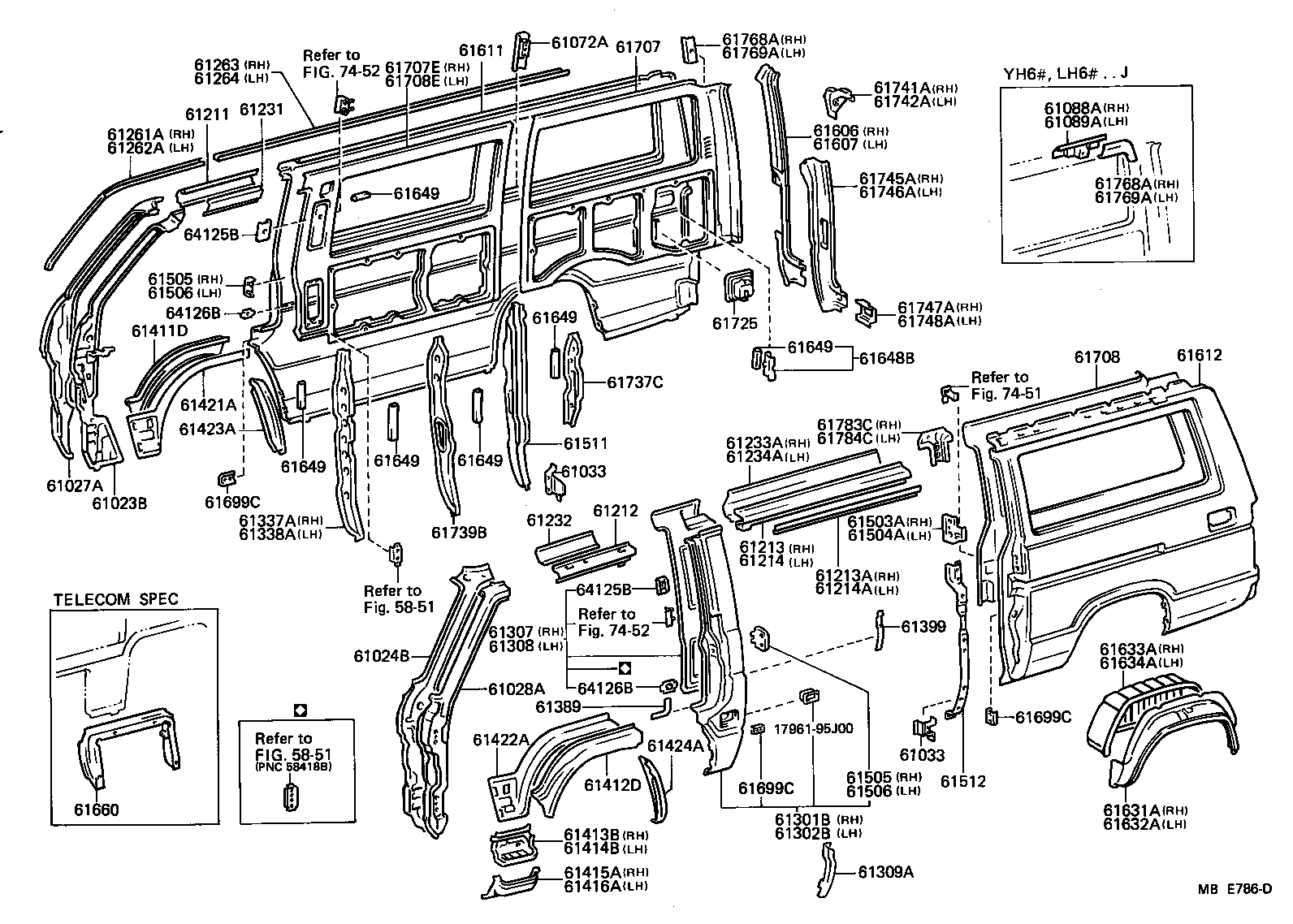

LH50RV-QR (1982)
Toyota Hiace Van,Commuter
(8212-8508)V4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95J00 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95J00 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95J00 |
LH5#,6#,7#,YH5#,6#,71..RHD W/ANTENA |
1 | ||
| 61027-95J01 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95J01 |
YH51..5H..M1;LH5#,6#,YH50,6#..EUR,GEN,SA;YH51..(03S,06S,09S,12S)..(EUR,SA) |
1 | ||
| 61033 - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR | ||||
| 61575-95J01 |
LH5#,YH5# |
2 | ||
| 61033 - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR | ||||
| 61575-95J01 |
LH5#,YH5# |
2 | ||
| 61072A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.1 UPPER | ||||
| 61072-95J00 |
LH50,YH50..RHD..V4D..GEN RH,NEW ZEALAND SPEC |
1 | ||
| 61071-95J00 |
LH50,YH50..RHD..V4D..GEN LH,NEW ZEALAND SPEC |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61214 - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61204-95J00 |
YH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,56,60,61,66..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,63,7#..RHD |
1 | ||
| 61214A - RETAINER, SLIDE DOOR WEATHERSTRIP, LH | ||||
| 67161-95J00 |
YH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,56,60,61,66..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,63,7#..RHD |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95J00 |
YH53..03S;LH5#,6#,YH50,51,56,6#..STD |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95J00 |
YH53..03S;LH5#,6#,YH50,51,56,6#..STD |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-95J00 |
YH50..V5D..03S;YH51..RHD..4H..03S;YH50..RHD..V4D..03S;YH61..RHD..03S..GEN;YH61..RHD..(03S,15S)..(ARL,EUR,SA);LH50,51,60,61,YH53,60,63..RHD..03S;LH5#,60,61,YH51,56,60,61,66..LHD..V5D..(02S,03S) |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-95J00 |
LH50,60,70,YH5#,6#,71 |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-95J00 |
LH50,60,70,YH5#,6#,71 |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61267-95J00 |
LH50,YH5# |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61268-95J00 |
LH50,YH5# |
1 | ||
| 61302B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-95J00 |
LH5#,6#,YH5#,6#..RHD..(GEN,SA);LH5#,6#,YH50,60..LHD..V5D..GEN |
1 | ||
| 61302-95J02 |
LH50,60,YH5#,6#..RHD..(GEN,SA);LH50,60,YH50,60..LHD..V5D..GEN W/*EL |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-95J00 |
YH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH50,60,YH51,6#..RHD;LH50,60,YH60..LHD..V5D |
1 | ||
| 61337A - REINFORCEMENT, CENTER BODY PILLAR, INNER RH | ||||
| 61337-95J00 |
YH51..GL..SA;YH61..V4D..ARL;YH50,63..RHD..V4D;LH60..RHD..V4D..03S;LH60..RHD..(06S,15S);YH50,51,63..RHD..COM;YH61..RHD..(EUR,GEN,SA);YH51..RHD..V4D..(4FC,4H,5F);LH50,51,61,7#,YH53,60,71..RHD |
1 | ||
| 61411D - PANEL, FENDER, OUTER RH | ||||
| 61411-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61412D - PANEL, FENDER, OUTER LH | ||||
| 61412-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61413B - PANEL, FRONT STEP, RH | ||||
| 61413-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61414B - PANEL, FRONT STEP, LH | ||||
| 61414-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61421A - PANEL, FENDER, INNER RH | ||||
| 61421-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61422A - PANEL, FENDER, INNER LH | ||||
| 61422-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61504-95J00 |
YH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,56,60,61,66..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,63,7#..RHD |
1 | ||
| 61505 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH | ||||
| 61505-95J00 |
YH51..GL..SA;YH61..V4D..ARL;YH50,63..RHD..V4D;LH60..RHD..V4D..03S;LH60..RHD..(06S,15S);YH50,51,63..RHD..COM;YH61..RHD..(EUR,GEN,SA);YH51..RHD..V4D..(4FC,4H,5F);LH50,51,61,7#,YH53,60,7#..RHD QUARTER PILLAR |
1 | ||
| 61505 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH | ||||
| 61505-95J00 |
YH51..GL..SA;YH61..V4D..ARL;YH50,63..RHD..V4D;LH60..RHD..V4D..03S;LH60..RHD..(06S,15S);YH50,51,63..RHD..COM;YH61..RHD..(EUR,GEN,SA);YH51..RHD..V4D..(4FC,4H,5F);LH50,51,61,7#,YH53,60,7#..RHD QUARTER PILLAR |
1 | ||
| 61506 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH | ||||
| 61506-95J00 |
YH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,60,61..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,7#..RHD CENTER PILLAR |
1 | ||
| 61506 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH | ||||
| 61506-95J00 |
YH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,60,61..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,7#..RHD CENTER PILLAR |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-95J01 |
YH51..GL..SA;YH61..V4D..ARL;YH50,63..RHD..V4D;LH60..RHD..V4D..03S;LH60..RHD..(06S,15S);YH50,51,63..RHD..COM;YH61..RHD..(EUR,GEN,SA);LH50,51,61,YH53,60..RHD;YH51..RHD..V4D..(4FC,4H,5F) |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-95J01 |
YH51..5H..GL;LH50,51,YH50,53..RHD..VSG;YH51..RHD..VSG..(4FC,4H,4HC,5F) |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-95J00 |
YH50..G;YH51..RHD;YH50..4H..J;LH5#,6#,YH6#;YH50..03S,06S,12S;YH51..(03S,06S)..N1 |
1 | ||
| 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-95J00 |
YH50..G;YH51..RHD;YH50..4H..J;LH5#,6#,YH6#;YH50..03S,06S,12S;YH51..(03S,06S)..N1 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-95J00 |
LH5#,YH50..RHD..VSG..03S;LH5#,YH5#..RHD..(05S,06S,09S,12S) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-95J01 |
YH50..RHD..VSG;YH50..V5D..VSG;LH5#..V5D..VSG..N1;LH5#,YH51..VSG..(ARL,GEN,SA) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-95J00 |
YH51..4HC..EUR;LH5#,6#,YH50,6#..V;YH51..V4D..(4FC,4H,5F,5H)..(ARL,EUR) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-95J00 |
YH51..5H..STD..SA;LH5#,6#,YH50,6#..V;YH51..V..STD..(ARL,EUR) |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J01 |
LH50,60,70,YH5#,6#,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,6#,71 L=80 |
1 | ||
| 61647-95J00 |
LH50,60,70,YH5#,6#,71 L=120 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J01 |
LH50,60,70,YH5#,6#,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,6#,71 L=80 |
1 | ||
| 61647-95J00 |
LH50,60,70,YH5#,6#,71 L=120 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J01 |
LH50,60,70,YH5#,6#,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,6#,71 L=80 |
1 | ||
| 61647-95J00 |
LH50,60,70,YH5#,6#,71 L=120 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J01 |
LH50,60,70,YH5#,6#,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,6#,71 L=80 |
1 | ||
| 61647-95J00 |
LH50,60,70,YH5#,6#,71 L=120 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J01 |
LH50,60,70,YH5#,6#,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,6#,71 L=80 |
1 | ||
| 61647-95J00 |
LH50,60,70,YH5#,6#,71 L=120 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J01 |
LH50,60,70,YH5#,6#,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,6#,71 L=80 |
1 | ||
| 61647-95J00 |
LH50,60,70,YH5#,6#,71 L=120 |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61613-95J00 |
YH51..5H..GL;LH50,51,YH50..RHD..VSG;YH51..RHD..VSG..(4FC,4H,4HC,5F) |
1 | ||
| 61707E - EXTENSION, QUARTER INNER PANEL, RH | ||||
| 61735-95J06 |
LH50,YH50..RHD..V4D..GEN NEW ZEALAND SPEC |
1 | ||
| 61735-95J01 |
LH5#,YH50,6#..RHD..VSG..03S |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61614-95J00 |
LH5#..VSG..GEN;YH50..RHD..VSG;YH50..V5D..VSG;LH5#..V5D..06S..N1 |
1 | ||
| 61614-95J07 |
LH50,YH50..RHD..V4D..GEN NEW ZEALAND SPEC |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 77304-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61737C - REINFORCEMENT, QUARTER, INNER | ||||
| 61737-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-95J00 |
YH50,60..V4D;YH51..5H..GL;YH61..V4D..ARL;YH50,60,63..COM;YH51..V4D..5H..EUR;LH50,51,61,YH53..RHD;YH51..V4D..(4FC,4H,5F);YH61..RHD..(EUR,GEN,SA);YH51..V4D..4HC..(EUR,SA);LH50,51,61,YH61..LHD..COM;LH60,YH63..V4D..(03S,06S);LH5#,61,66,YH56,61,66..LHD..V4D;LH60,YH51..MTM..(09S,12S,15S)..(EUR,GEN) |
1 | ||
| 61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH | ||||
| 61741-95J00 |
LH51..R,U;LH51..03S,06S,12S;LH50,56,6#,YH5#,6#..SRF |
1 | ||
| 61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH | ||||
| 61742-95J00 |
LH51..R,U;LH51..03S,06S,12S;LH50,56,6#,YH5#,6#..SRF |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61077-95J00 |
YH50,51,63..COM;YH50,51,63,66..VSG;LH50,51,66..06S,08S,12S;LH51,56,61,YH56,61..R,U;LH50,51,60,61,YH60,61..VSG..03S;LH60,61,YH53,60,61..SRF..(05S,06S,09S,15S) |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61078-95J00 |
YH50,51,63..COM;YH50,51,63,66..VSG;LH50,51,66..06S,08S,12S;LH51,56,61,YH56,61..R,U;LH50,51,60,61,YH60,61..VSG..03S;LH60,61,YH53,60,61..SRF..(05S,06S,09S,15S) |
1 | ||
| 61747A - EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, RH | ||||
| 61747-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61748A - EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, LH | ||||
| 61748-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61784C - BRACE, QUARTER PANEL, INNER LH | ||||
| 61784-95J00 |
YH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,56,60,61,66..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,63,7#..RHD |
1 | ||
| 64125B - ANCHOR, PILLAR SEAT BELT | ||||
| 64125-95J00 |
LH5#,6#,7#,YH5#,6#,71 QUARTER PANEL |
1 | ||
| 64125B - ANCHOR, PILLAR SEAT BELT | ||||
| 64125-95J00 |
LH5#,6#,7#,YH5#,6#,71 QUARTER PANEL |
1 | ||
| 64126B - ANCHOR, PILLAR SEAT BELT, LOWER | ||||
| 64126-95J00 |
LH5#,6#,7#,YH5#,6#,71 QUARTER PANEL |
1 | ||
| 64126-95J00 |
YH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,6#..LHD..V5D;LH5#,6#,7#,YH51,6#,71..RHD |
1 | ||
| 64126B - ANCHOR, PILLAR SEAT BELT, LOWER | ||||
| 64126-95J00 |
LH5#,6#,7#,YH5#,6#,71 QUARTER PANEL |
1 | ||
| 64126-95J00 |
YH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,6#..LHD..V5D;LH5#,6#,7#,YH51,6#,71..RHD |
1 | ||
| Common parts | ||||
| 17961-95J00 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 7451 | ||||
| 7452 | ||||
(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57441 - COVER, PLATE FLOOR SIDE RAIL | ||||
| 57441-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
2 | ||
| 61339A - SILENCER, PILLAR INNER | ||||
| 61339-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 61347 - COVER, CENTER BODY PILLAR | ||||
| 61347-95J01 |
LH50,60,70,YH5#,6#,71 W/*ELR |
2 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J01 |
LH50,60,70,YH5#,6#,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,6#,71 L=80 |
1 | ||
| 61647-95J00 |
LH50,60,70,YH5#,6#,71 L=120 |
1 | ||
| 61785B - BRACE, QUARTER PANEL OUTER | ||||
| 61785-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-95J00 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-95J00 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 67841-90C00 | ||||
| 67842-90C00 | ||||
| 68854-90C00 | ||||
| 90034-80031 | ||||
| 90119-06326 | ||||
| 90119-06358 | ||||
| 90149-60027 | ||||
| 90159-60096 | ||||
| 90189-06008 | ||||
| 90480-25001 | ||||
| 90950-01065 | ||||
| 90950-01066 | ||||
| 90950-01133 | ||||
| 90950-01150 | ||||
| 90950-01181 | ||||
| 90950-01212 | ||||
| 90950-01397 | ||||
| 90950-01421 | ||||
| 90950-06001 | ||||
| 90950-06003 | ||||
| 90950-06004 | ||||
| 90950-06017 | ||||
| 90950-06040 | ||||
| 94110-40600 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 6451 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
