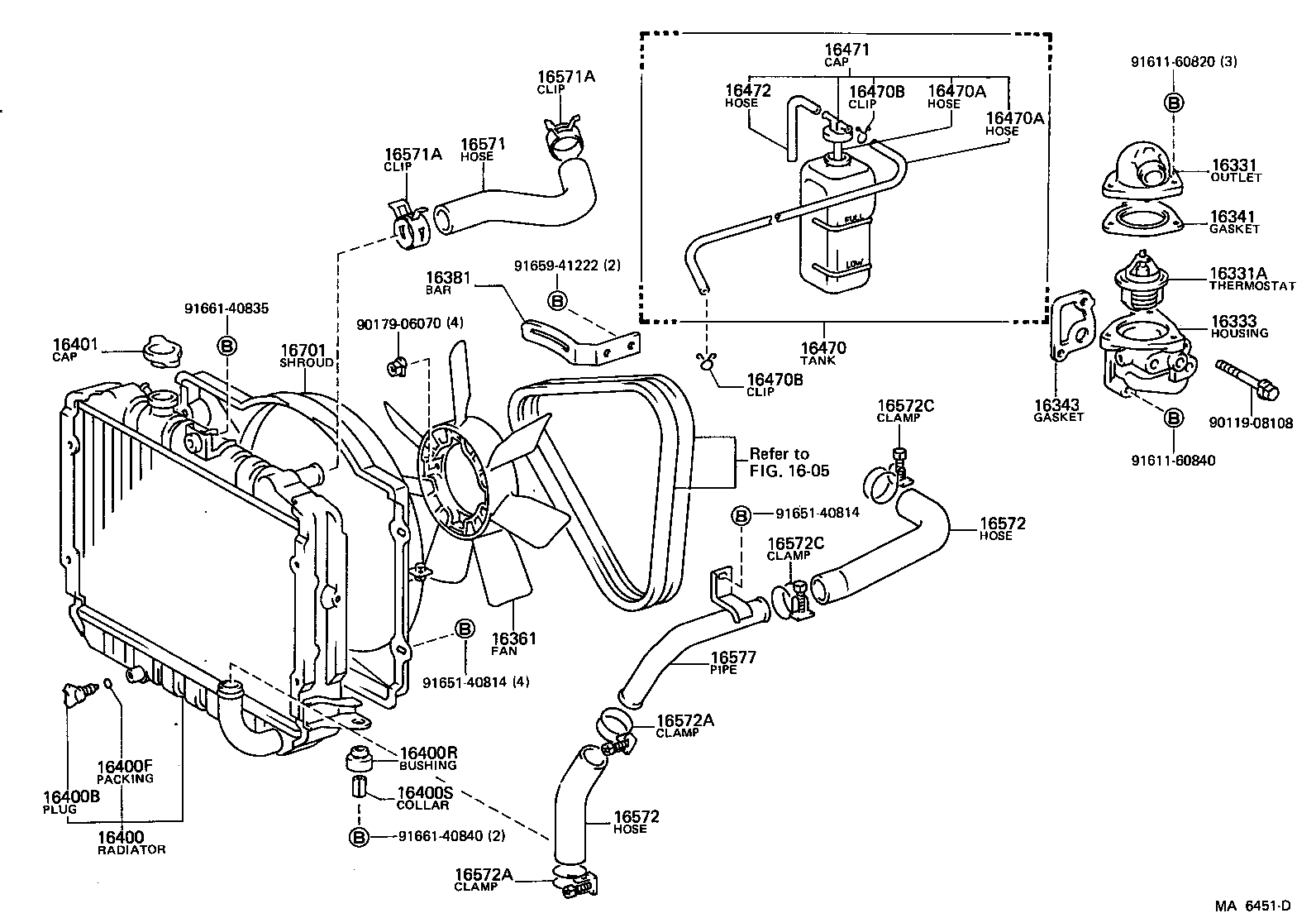

LH50RB-QR (1982)
Toyota Hiace Van,Commuter
(8212-8401)L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54030 |
L,2L..LH5#,6#,7# |
1 | ||
| 16331-54040 |
L,2L..LH5#,6#..COM..GEN W/COOLER |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03062 |
L,2L..LH5#,6#,7# *WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
L,2L..LH5#,6#,7# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54010 |
L..LH50,60,70 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54011 |
L,2L..LH5#,6#,7# |
1 | ||
| 16361 - FAN | ||||
| 16361-41050 |
L..LH50,60,70 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
L,2L..LH50,51,60,61,7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-54280 |
L..LH50,60,70..5H..(ARL,GEN) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
L,2L..LH5#,6#,7# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
L,2L..LH5#,6#,7# |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 90540-10019 |
L,2L..LH5#,6#,7# |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 90440-11042 |
L,2L..LH5#,6#,7# |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
L,2L..LH5#,6#,7# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54030 |
L..LH50,60,70 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
L..LH50,60,70 *H,L=230 |
1 | ||
| 90099-33534 |
L..LH50,60,70 *H,L=900 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
L..LH50,60,70 *H,L=230 |
1 | ||
| 90099-33534 |
L..LH50,60,70 *H,L=900 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LH5#,6#,7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LH5#,6#,7# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54040 |
L..LH50,60,70 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-30010 |
L..LH50,60,70 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54120 |
L,2L..LH50,51,60,61,7# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LH5#,6#,7# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LH5#,6#,7# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16573-54030 |
L,2L..LH5#,6#,7# RADIATOR SIDE |
1 | ||
| 16572-54090 |
L,2L..LH50,51,60,61,7# WATER PUMP SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16573-54030 |
L,2L..LH5#,6#,7# RADIATOR SIDE |
1 | ||
| 16572-54090 |
L,2L..LH50,51,60,61,7# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
L,2L..LH5#,6#,7# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
L,2L..LH5#,6#,7# |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90460-47036 |
L,2L..LH5#,6#,7# PIPE SIDE |
1 | ||
| 96111-10500 |
L,2L..LH5#,6#,7# WATER PUMP SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90460-47036 |
L,2L..LH5#,6#,7# PIPE SIDE |
1 | ||
| 96111-10500 |
L,2L..LH5#,6#,7# WATER PUMP SIDE |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-54060 |
L,2L..LH5#,6#,7# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-54060 |
L..LH50,60,70 |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90179-06070 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91651-40814 | ||||
| 91659-41222 | ||||
| 91661-40835 | ||||
| 91661-40840 | ||||
| Linked diagrams | ||||
| 1605 | ||||
