LH50LV-SRBW (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8508)

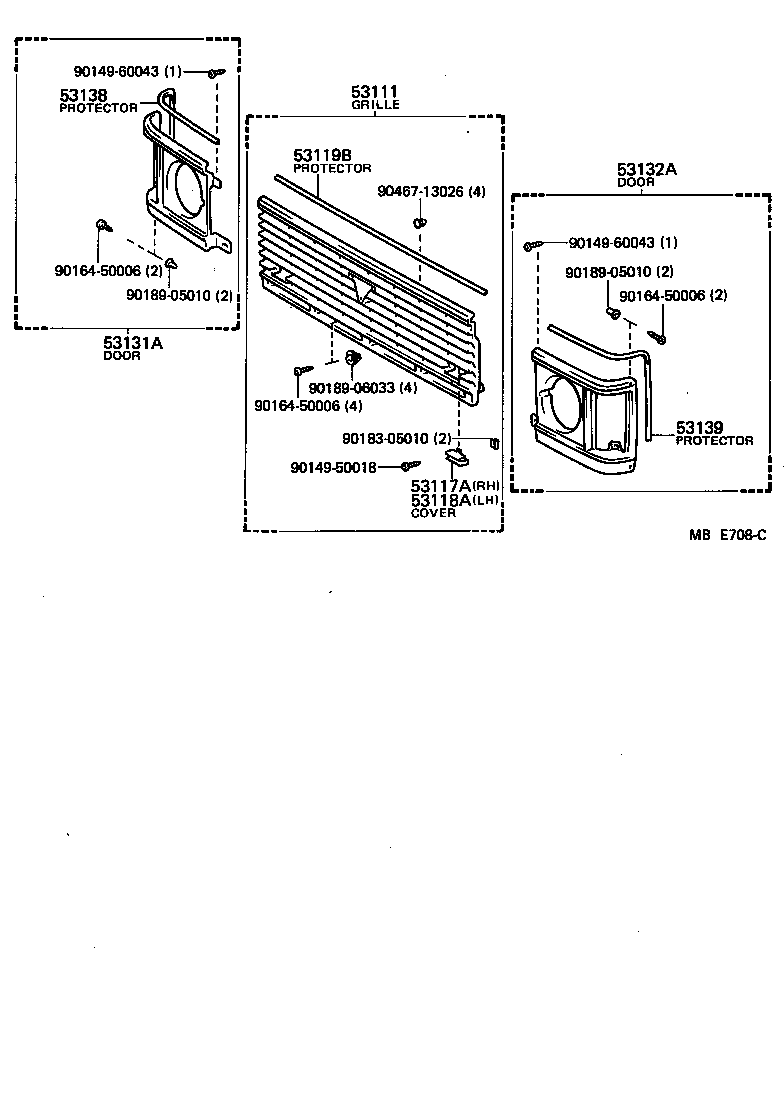

Click highlighted areas on diagram

diagram 53111 53117A 53118A 53119B 53131A 53132A 53138 53139 9014950018 9014960043 9014960043 9016450006 9016450006 9016450006 9018305010 9018905010 9018905010 9018906033 9046713026
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-29205

LH50,60,70,YH50,6#,71

 1
53117A - COVER, RADIATOR GRILLE SERVICE HOLE, RH
53117-95J00

LH50,60,70,YH5#,6#,71

 1
53118A - COVER, RADIATOR GRILLE SERVICE HOLE, LH
53118-95J00

LH50,60,70,YH5#,6#,71

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-95J00

LH50,60,70,YH5#,6#,71

 1
53131A - DOOR, HEADLAMP, RH
53130-29155

LH50,60,70,YH50,6#,71

 1
53132A - DOOR, HEADLAMP, LH
53140-29155

LH50,60,70,YH50,6#,71

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53138-95J00

LH50,60,70,YH5#,6#,71

L=370

 1
53148-95J00

LH50,60,70,YH5#,6#,71

L=285

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53149-95J00

LH50,60,70,YH5#,6#,71

L=285

 1
53138-95J00

LH50,60,70,YH5#,6#,71

L=370

 1
Common parts
90149-50018
90149-60043
90164-50006
90183-05010
90189-05010
90189-06033
90467-13026
