LH50LV-QREW (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

Click highlighted areas on diagram

diagram 87107 87150 87174A 87211E 88910 9015950203 9015950203 9017908123 9017908123 9048026003 9095001004 9095001004 9095001006 9095001006 9095001127 9095001127
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95J03

YH51..VSG..5H..EUR;YH51..LHD..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..LHD..EUR

 1
87150 - RADIATOR ASSY, HEATER
87150-95J03

YH51..VSG..5H..EUR;YH51..LHD..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..LHD..EUR

 1
87174A - GUIDE, AIR HEATER
87174-95J03

YH51..VSG..5H..EUR;YH51..LHD..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..LHD..EUR

 1
87211E - DUCT, AIR
87211-95J03

LH5#,6#,YH50,51,56,60,61,66..LHD..EUR

 1
Common parts
90159-50203
90179-08123
90480-26003
90950-01004
90950-01006
90950-01127

(8212- )

Click highlighted areas on diagram

diagram 87104 87105 87130 87133 87138 9011906088 9011906090 9161160612
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-12120

LH5#,6#,7#,YH5#,6#,7#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12060

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-95J01

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
87133 - BRACKET, BLOWER
87133-95J01

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
Common parts
90119-06088
90119-06090
91611-60612

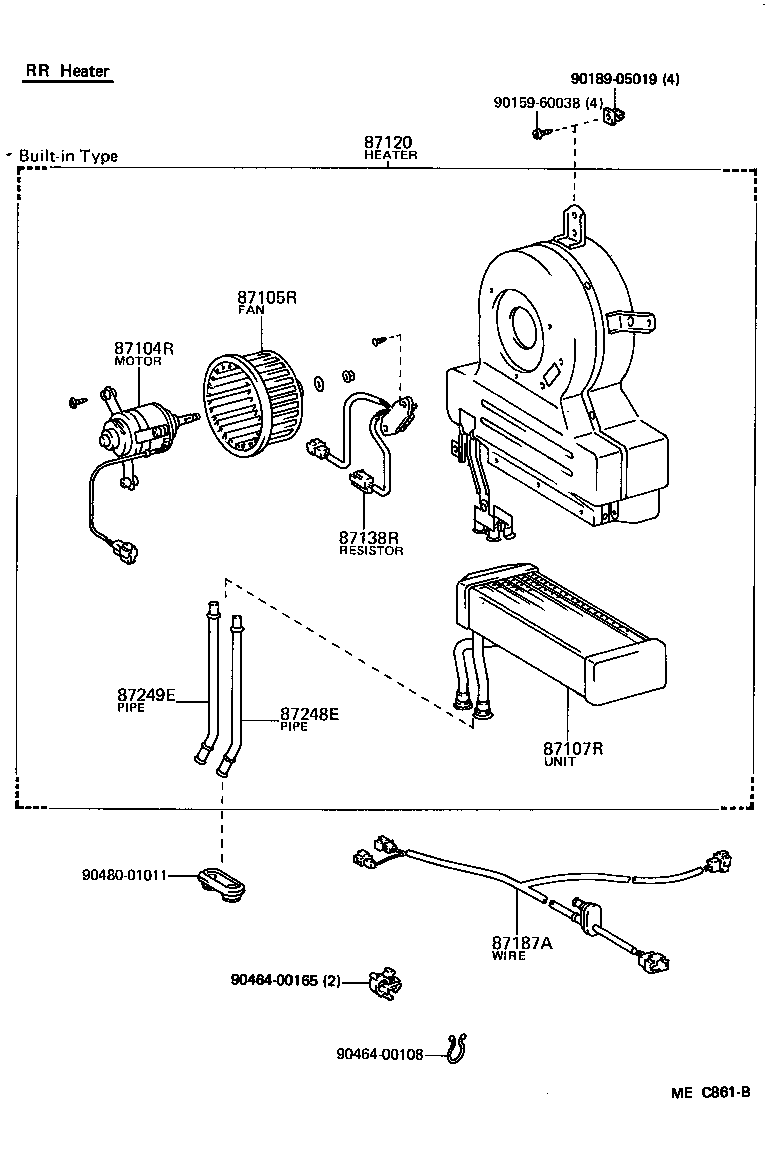

(8212- )V..EUR

Click highlighted areas on diagram

diagram 87104R 87105R 87107R 87120 87138R 87187A 87248E 87249E 9015960038 9018905019 9046400108 9046400165 9048001011
Part # Description Qty Price
Common parts
90159-60038
90189-05019
90464-00108
90464-00165
90480-01011
