LH50LV-QRBF (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8508) ; (8508-8608)4H,4HC,5H ; (8608- )STD

Click highlighted areas on diagram

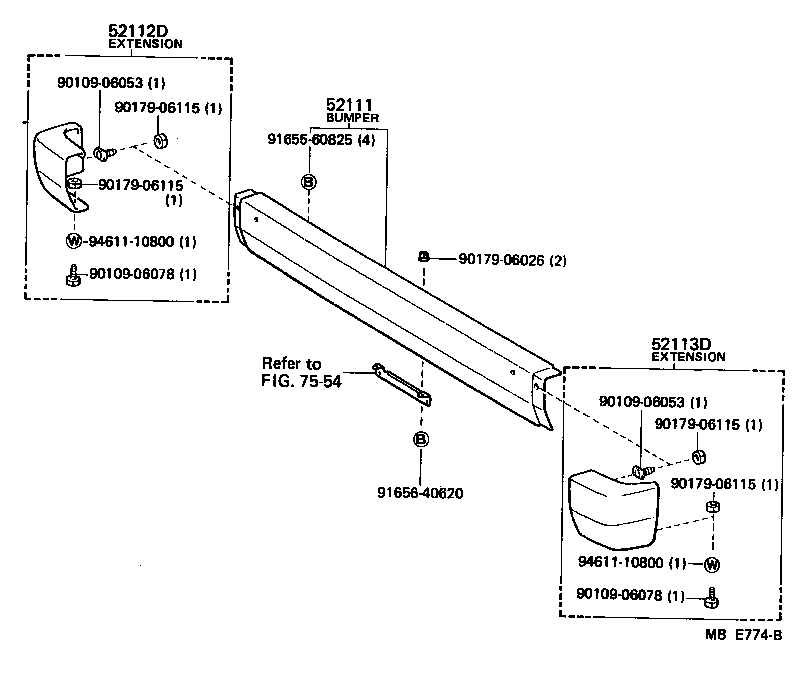

diagram 52111 52112D 52113D 7554 9010906053 9010906053 9010906078 9010906078 9017906026 9017906115 9017906115 9017906115 9017906115 9165560825 9165640620 9461110800 9461110800
Part # Description Qty Price
52111 - BUMPER ASSY, FRONT
52018-29055

YH51..4HC..(03S,06S,09S)..N1;YH51..MTM..STD..(ARL,EUR,GEN);LH5#,6#,7#,YH50,53,56,6#,7#..STD..(ARL,EUR,GEN)

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-29035

LH5#,6#,7#,YH5#,6#,71

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-29035

LH5#,6#,7#,YH5#,6#,71

 1
Common parts
90109-06053
90109-06078
90179-06026
90179-06115
91655-60825
91656-40620
94611-10800
Linked diagrams
7554
