LH50LV-QRBF (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )MTM

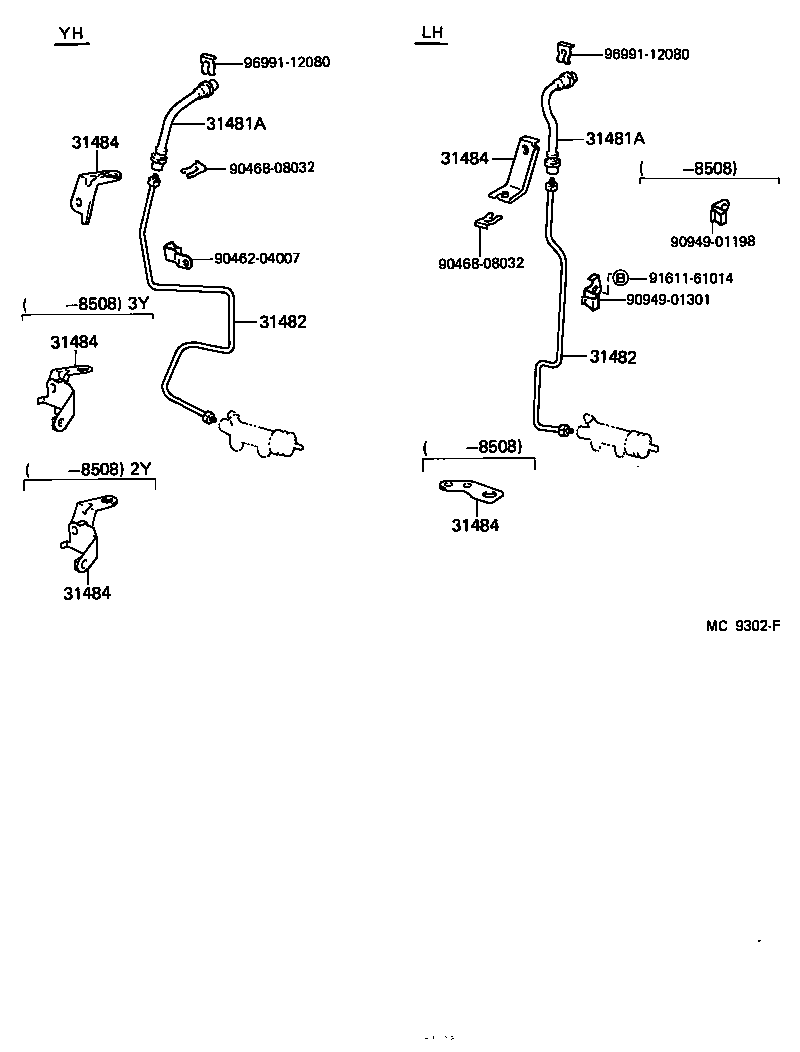

Click highlighted areas on diagram

diagram 31481A 31481A 31482 31482 31484 31484 31484 31484 31484 9046204007 9046808032 9046808032 9094901198 9094901301 9161161014 9699112080 9699112080
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
90931-01001

LH5#,6#,7#,YH5#,6#,71..MTM

 1
31481A - HOSE, CLUTCH, NO.1
90931-01001

LH5#,6#,7#,YH5#,6#,71..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26060

LH50,60,70..5H

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26060

LH50,60,70..5H

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-26040

LH5#,6#,7#..5H

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-26040

LH5#,6#,7#..5H

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-26040

LH5#,6#,7#..5H

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-26040

LH5#,6#,7#..5H

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-26040

LH5#,6#,7#..5H

 1
Common parts
90462-04007
90468-08032
90949-01198
90949-01301
91611-61014
96991-12080

(8212- )MTM

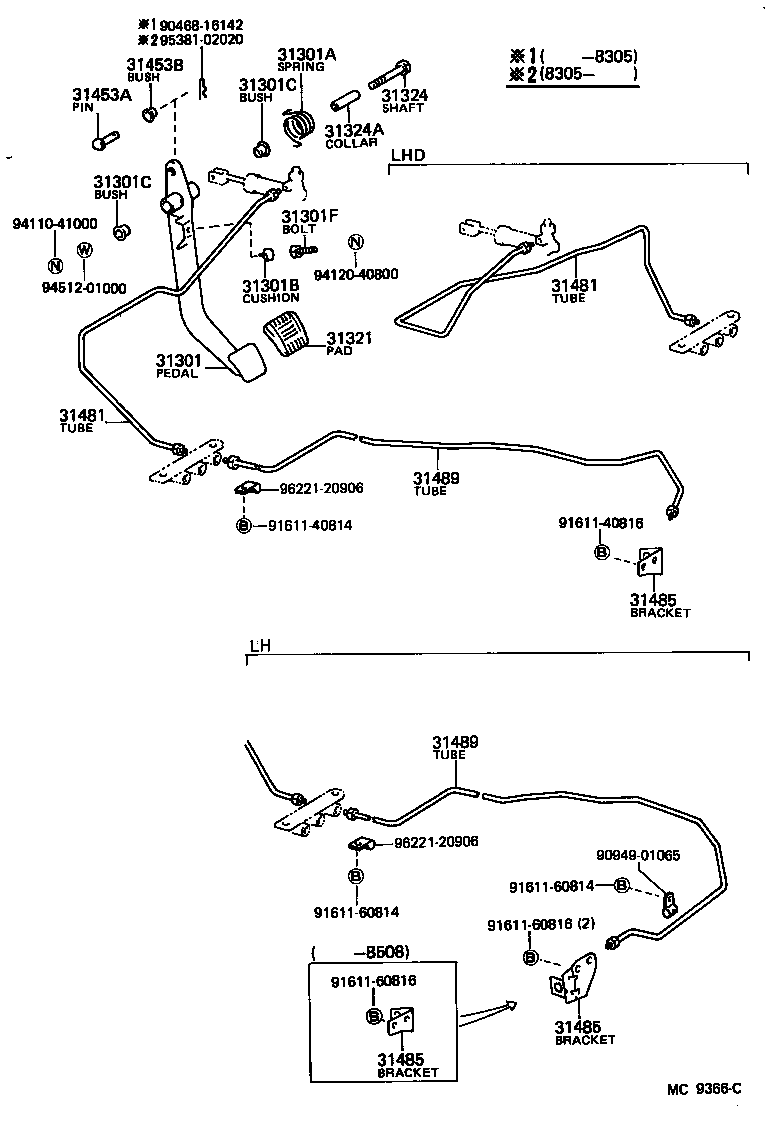

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 31481 31481 31485 31485 31485 31489 31489 9046816142 9094901065 9161140814 9161140816 9161160814 9161160814 9161160816 9161160816 9411041000 9412040800 9451201000 9538102020 9622120906 9622120906
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-26070

LH5#,6#,YH50,51,56,60,61,66..LHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-32002

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LH5#,6#,7#,YH5#,6#,7#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LH5#,6#,7#,YH5#,6#,7#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

LH50,60,70,YH5#,6#,71..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

LH5#,6#,7#,YH5#,6#,7#..MTM

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-26140

LH5#,6#,YH50,6#..LHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-26140

LH5#,6#,YH50,6#..LHD..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26020

LH5#,6#,7#..5H

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26020

LH5#,6#,7#..5H

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26020

LH5#,6#,7#..5H

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26120

LH5#,6#,7#..5H

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26120

LH5#,6#,7#..5H

 1
Common parts
90468-16142
90949-01065
91611-40814
91611-40816
91611-60814
91611-60816
94110-41000
94120-40800
94512-01000
95381-02020
96221-20906
