LH50LB-QR (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8401) ; (8401-8508)STD..EUR,GEN,SA

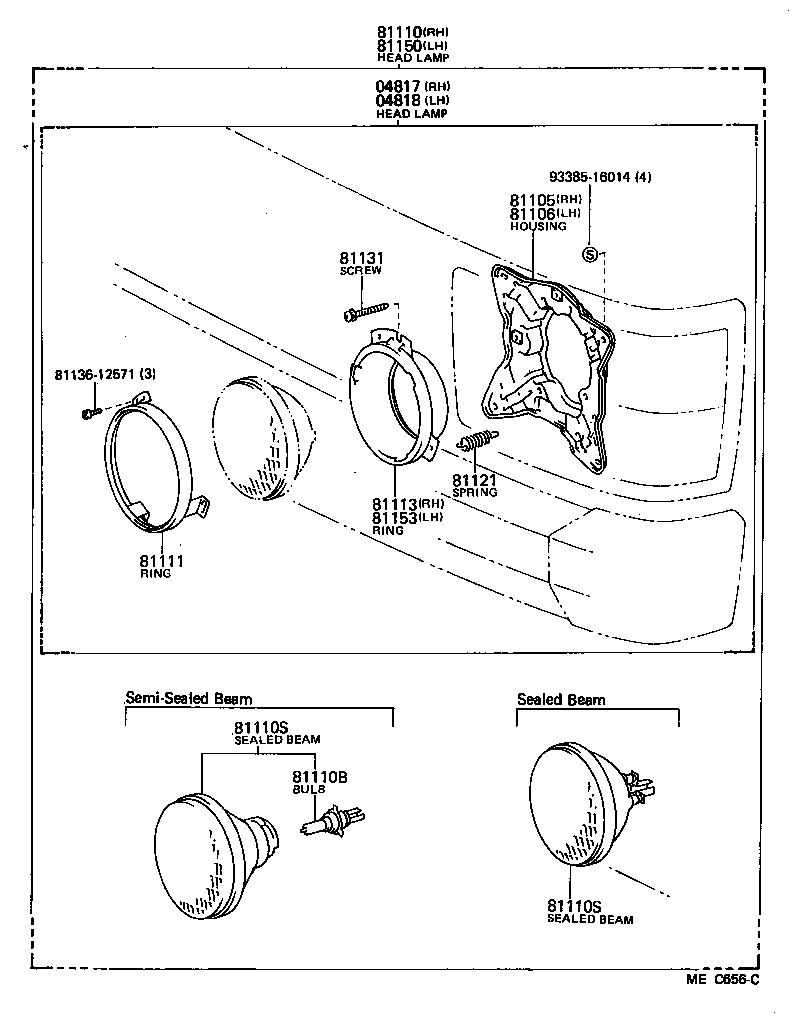

Click highlighted areas on diagram

diagram 04817 04818 81105 81106 81110 81110B 81110S 81110S 81111 81113 81121 81131 8113612571 81150 81153 9338516014
Part # Description Qty Price
04817 - HEADLAMP KIT, W/O SEALED BEAM, RH
04817-26020

YH51;LH50,60,70,YH50,6#,71..ARL,EUR,GEN

*SSB HALOGEN,WHITE

 1
04818 - HEADLAMP KIT, W/O SEALED BEAM, LH
04818-26020

YH51;LH50,60,70,YH50,6#,71..ARL,EUR,GEN

*SSB HALOGEN,WHITE

 1
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95J00

LH50,60,70,YH5#,6#,71

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95J00

LH50,60,70,YH5#,6#,71

 1
81110 - HEADLAMP ASSY, RH
81110-80289

YH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)

*SSB HALOGEN,WHITE

 1
81110-80288

YH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)

*SSB,WHITE

 1
81110-80290

YH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)

*SSB HALOGEN,YELLOW

 1
81110-80292

LH5#,6#,YH50,60..LHD..GEN

SEALED BEAM

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

YH51;LH50,60,70,YH50,6#,71..ARL,EUR,GEN

12V 60/55W,*HAL *WH,12V 60/55W,*SSB HALOGEN,WHITE

 2
90981-13016

YH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)

12V 60/55W,*HAL *YE,12V 60/55W,*SSB HALOGEN,YELLOW

 2
90981-13013

YH51..VSG..5H..EUR;LH5#,6#,YH50,56,6#..EUR,GEN;YH51..(03S,06S,09S,12S)..(EUR,GEN)

12V 45/40W,WHITE,12V 45/40W,*SSB WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-01017

LH5#,6#,YH5#,6#..LHD

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

 2
90981-01046

LH5#,6#,YH50,60..LHD..GEN

12V 60/50W,*WB,12V 60/55W,SEALED BEAM

 2
90981-01035

LH5#,6#,YH5#,6#..LHD

12V 60/55W,*HWS,12V 60/55W,*SSB HALOGEN,WHITE

 2
90981-01036

YH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)

12V 60/55W,*HYS,12V 60/55W,*SSB HALOGEN,YELLOW

 2
81110S - SEALED BEAM UNIT, NO.1
90981-01017

LH5#,6#,YH5#,6#..LHD

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

 2
90981-01046

LH5#,6#,YH50,60..LHD..GEN

12V 60/50W,*WB,12V 60/55W,SEALED BEAM

 2
90981-01035

LH5#,6#,YH5#,6#..LHD

12V 60/55W,*HWS,12V 60/55W,*SSB HALOGEN,WHITE

 2
90981-01036

YH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)

12V 60/55W,*HYS,12V 60/55W,*SSB HALOGEN,YELLOW

 2
81111 - RING, SEALED BEAM RETAINING
81111-22150

LH50,60,70,YH5#,6#,71

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-95J00

LH50,60,70,YH5#,6#,71

 1
81121 - SPRING, HEADLAMP TENSION
81121-62010

LH50,60,70,YH5#,6#,71

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

LH50,60,70,YH5#,6#,71

 4
81150 - HEADLAMP ASSY, LH
81150-80286

YH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)

*SSB HALOGEN,WHITE

 1
81150-80285

YH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)

*SSB,WHITE

 1
81150-80289

LH5#,6#,YH50,60..LHD..GEN

SEALED BEAM

 1
81150-80287

YH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)

*SSB HALOGEN,YELLOW

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-95J00

LH50,60,70,YH5#,6#,71

 1
Common parts
81136-12571
93385-16014
