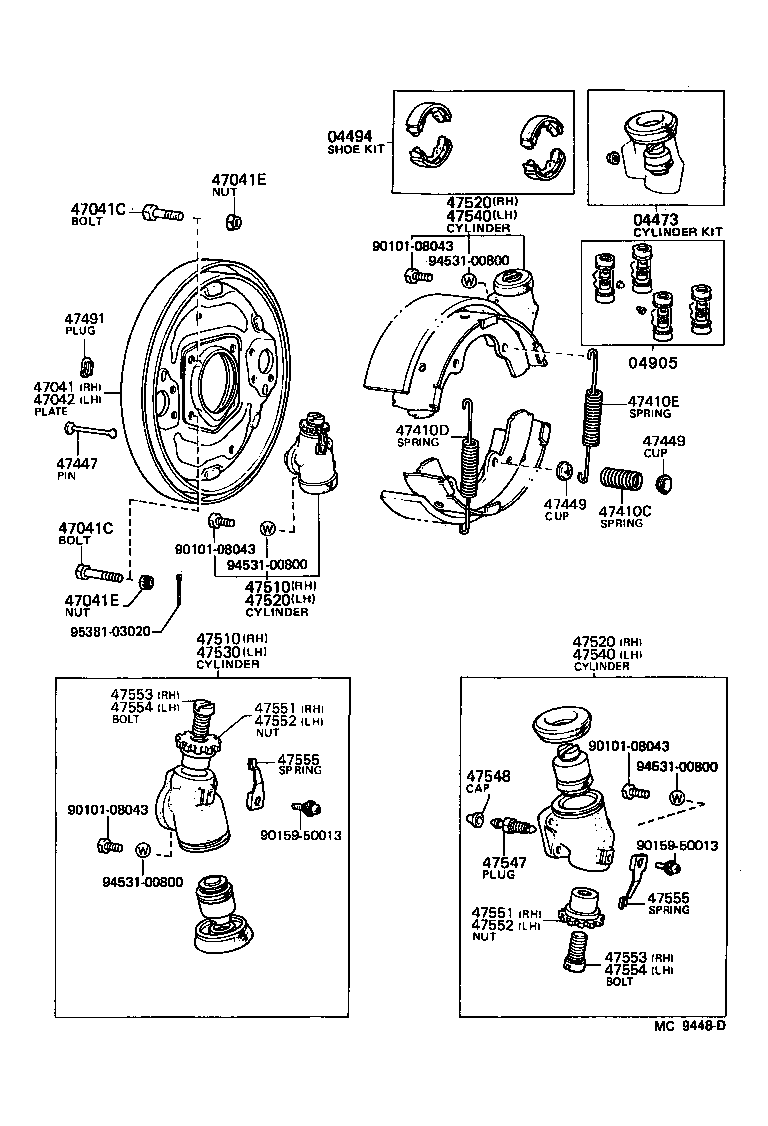

LH50LB-QR (1982)
Toyota Hiace Van,Commuter
(8212-8708)GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-26020 |
LH5#,6#,YH50,6#..GEN |
4 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-30030 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-35050 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-26050 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12005 |
LH5#,6#,YH50,6#..GEN *12-1.25PX69-24,LWR,L=69 |
4 | ||
| 90101-12060 |
LH5#,6#,YH50,6#..GEN *12-1.25PX38-23,UPR,L=38 |
4 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12005 |
LH5#,6#,YH50,6#..GEN *12-1.25PX69-24,LWR,L=69 |
4 | ||
| 90101-12060 |
LH5#,6#,YH50,6#..GEN *12-1.25PX38-23,UPR,L=38 |
4 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90171-12004 |
LH5#,6#,YH50,6#..GEN LWR |
4 | ||
| 90179-12029 |
LH5#,6#,YH50,6#..GEN UPR |
4 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90171-12004 |
LH5#,6#,YH50,6#..GEN LWR |
4 | ||
| 90179-12029 |
LH5#,6#,YH50,6#..GEN UPR |
4 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-26050 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
LH5#,6#,YH50,6#..GEN |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-23005 |
LH5#,6#,YH50,6#..GEN |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-23005 |
LH5#,6#,YH50,6#..GEN |
2 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-22010 |
LH5#,6#,YH50,6#..GEN |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
LH5#,6#,YH50,6#..GEN |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
LH5#,6#,YH50,6#..GEN |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
LH5#,6#,YH50,6#..GEN |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47520-29135 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47520-29135 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47510-29225 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47510-29225 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47510-29225 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47540-29135 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47530-29225 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47530-29225 |
LH5#,6#,YH50,6#..GEN |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-20030 |
LH5#,6#,YH50,6#..GEN |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
LH5#,6#,YH50,6#..GEN |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-26020 |
LH5#,6#,YH50,6#..GEN LH SCREW |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-26020 |
LH5#,6#,YH50,6#..GEN LH SCREW |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-26020 |
LH5#,6#,YH50,6#..GEN RH SCREW |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-26020 |
LH5#,6#,YH50,6#..GEN RH SCREW |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-30051 |
LH5#,6#,YH50,6#..GEN LH SCREW |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-30051 |
LH5#,6#,YH50,6#..GEN LH SCREW |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-30051 |
LH5#,6#,YH50,6#..GEN RH SCREW |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-30051 |
LH5#,6#,YH50,6#..GEN RH SCREW |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-26030 |
LH5#,6#,YH50,6#..GEN |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-26030 |
LH5#,6#,YH50,6#..GEN |
4 | ||
| Common parts | ||||
| 90101-08043 | ||||
| 90159-50013 | ||||
| 94531-00800 | ||||
| 95381-03020 | ||||
