Toyota Hiace van,commuter LH172 SEAT & SEAT TRACK

LH172R-RRMRS (1998)

Toyota Hiace Van,Commuter

Production Aug 1998 - Jan 2005

Engine 5L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9808- )06S

Click highlighted areas on diagram

REAR SEAT

Part #	Description	Period	Qty
71350B - HINGE ASSY, REAR SEAT, RH
71350-26280	LH112,RZH113..RHD..06S;LH103,113,154,162,172,RZH103,155..06S,10S,11S,12S	07/1999 - 01/2005	1
71350-26280	LH103,112,113,172,RZH103,112,113..RHD..06S	08/1998 - 07/1999	1
71360A - HINGE ASSY, REAR SEAT, LH
71360-26060	LH103,112,113,162,172,RZH103,113..RHD..06S	07/1999 - 01/2005	1
71360-26060	LH103,112,113,172,RZH103,112,113..RHD..06S	08/1998 - 07/1999	1
71485 - COVER, REAR SEAT HINGE
71485-95J01B0	LH112,RZH112,114,115..4D..(06S,12S);LH103,113,172,176,184,RZH103,113..SG..(GL,STD)..(DSL,EFI) BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71485-95J01B0	RZH113..RHD..06S;LH112,154,174..4D..(06S,11S,12S);LH103,113,114,162,172,RZH103,114,155..06S,10S,11S,12S BLUISH GRAY,TRIM1#	07/1999 - 12/2999	1
71486C - COVER, REAR SEAT HINGE, LH
71486-95J01B0	LH103,112,113,172,RZH103,112,113..RHD..06S BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71486-95J01B0	LH103,112,113,162,172,RZH103,113..RHD..06S BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
72213A - KNOB, SEAT TRACK ADJUSTING HANDLE
72213-95J00B0	LH102,103,112,113,172,RZH102,103,112,113..06S BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
72613A - STRIKER, FRONT SEAT LOCK
72613-26060	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	2
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-26030	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	2
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-9570111	LH102,103,11#,172,176,184,RZH102,103,11#..SG..(GL,STD) BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72658-9570111	RZH112..5D;LH154,174,RZH115,155..11S,12S,15S;LH102,103,11#,162,172,176,184,RZH102,103,113,114..06S,09S,10S,15S BLUISH GRAY,TRIM1#	07/1999 - 12/2999	2
72665B - COVER, REAR SEAT BACK LOCK
72665-26010B0	LH102,103,112,113,172,RZH102,103,112,113..06S BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-26012B1	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79011-26022B0	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79011-26012B1	RZH113..RHD..06S;LH102,103,112,113,162,172,RZH102,103,112..06S..(CBR,DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
79011-26640B0	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC & SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-26052B1	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79013-26042B1	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79013-26042B1	LH103,112,113,162,172,RZH103,113..RHD..06S..(DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 09/2003	2
79013-26052B3	LH172..GL..DEFI;LH112,162,172,RZH103,113..RHD..06S..STD -,TRIM1#	07/1999 - 01/2005	1
79013-26600B0	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
79013-26042B1	LH112,162,172,RZH103,113..RHD..06S..(DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	09/2003 - 01/2005	1
79107A - LEG SUB-ASSY, NO.1 SEAT, REAR
79107-26090	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	1
79107-26110	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	1
79120A - CUSHION ASSY, NO.1 SEAT
79120-26231B6	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79120-26371B2	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79120-26710B1	LH103,113,162,172,RZH103,113..RHD..06S..STD..(DSL,EFI) NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
79120-26371B7	RZH113..RHD..06S;LH102,103,112,113,162,172,RZH102,103,112..06S..(CBR,DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
79135 - PAD, NO.1 SEAT CUSHION
79135-26011	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	1
79135-95J16	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	2
79140A - BACK ASSY, NO.1 SEAT
79140-26341B2	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79140-26201B6	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79140-26201B7	RZH113..06S..GEN;LH103,112,113,162,172,RZH103..RHD..06S..STD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2003	1
79140-26341B7	LH162,RZH103,112..5D..06S;LH112,172,RZH113..RHD..06S..STD..(DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
79140-26710B1	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC & SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	08/2000 - 08/2003	1
79160 - SPRING ASSY, NO.1 SEAT CUSHION
79160-26160	RZH112,113..5D..06S..CBR;LH102,103,112,113,162,172,RZH102,103,113..06S..GEN	07/1999 - 09/2003	2
79160-26160	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	1
79160-26180	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	1
79175 - PAD, NO.1 SEAT BACK
79175-26110	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	1
79175D - PAD, NO.1 SEAT CUSHION, UNDER
79175-95J13	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	2
79180 - SPRING ASSY, NO.1 SEAT BACK
79103-26150	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	1
79103-26200	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	1
79189 - STOPPER, NO.1 SEAT LEG
71334-26050	LH102,103,112,113,162,172,RZH102,103,112,113..06S,08S	07/1999 - 08/2002	2
71334-26050	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00	RZH113..06S..CBR;LH10#,11#,125,166,172,176,184,RZH10#,112,114,115,125..06S,12S,14S,15S	08/1998 - 07/1999	2
79199-95J00	RZH112,113..5D..06S;RZH113,114..08S,15S;LH174,RZH102..SG..STD;LH10#,11#,125,16#,172,176,184,RZH103,104,105,115,125..(06S,10S,12S,14S,15S)..(GL,STD)	07/1999 - 12/2999	2
Common parts
90119-10229
90119-10409
90119-10412
90119-11029
90164-50020
90167-40044
90249-08106
90507-26009
90523-06017
90950-01913
91612-B1020
91616-61025

(9907- )RHD..06S

Click highlighted areas on diagram

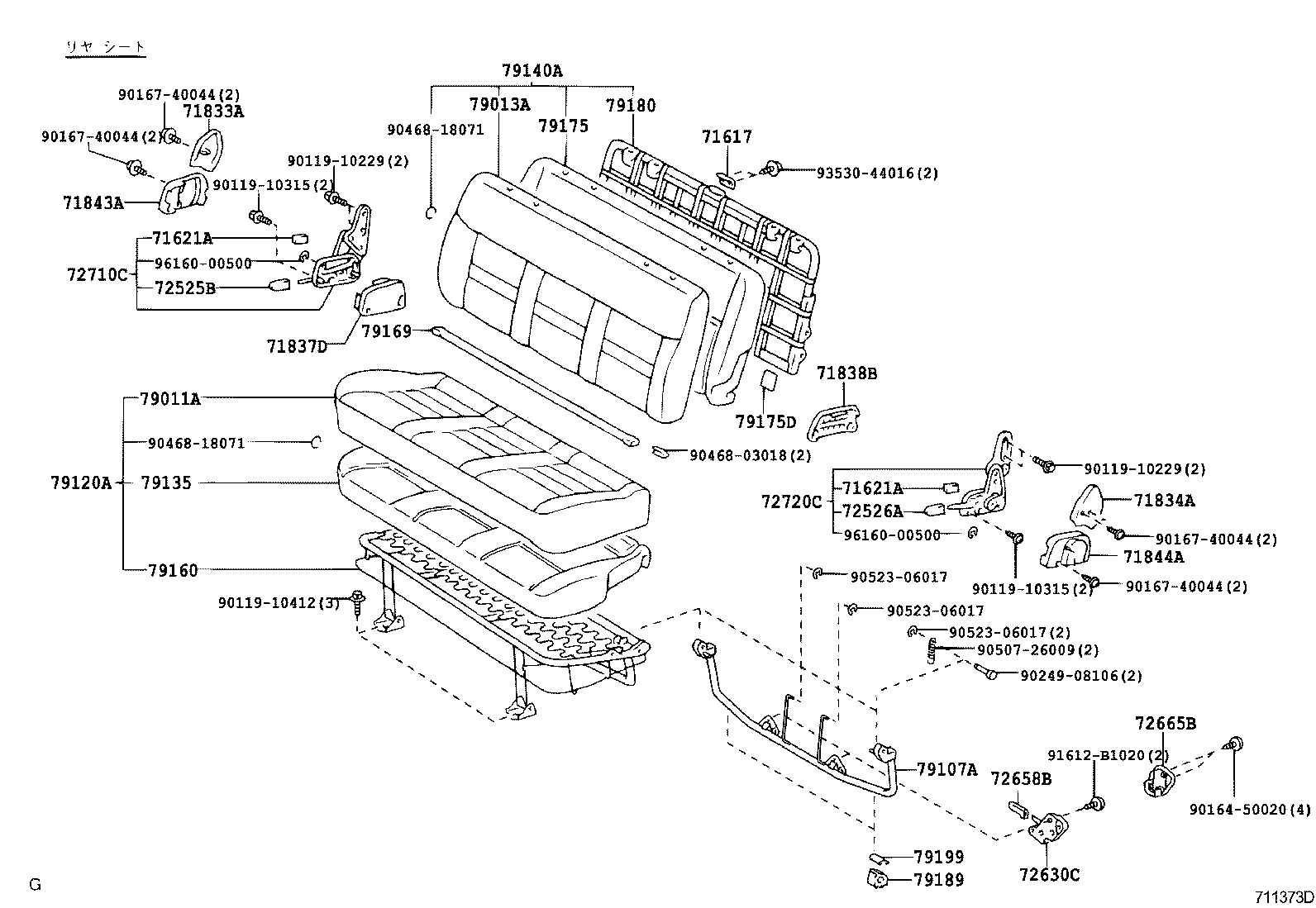

REAR SEAT(NEW ZEALAND SPEC)

Part #	Description	Period	Qty
71617 - PROTECTOR, REAR SEAT BACK
71695-95J02B0	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71833-26020B0	RZH113..RHD..06S;LH162,172,RZH102,103..SG..(CBR,DSL,EFI) BLUISH GRAY,TRIM1#	03/2002 - 01/2005	1
71833-95J01B0	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 03/2002	1
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-26030B0	RZH113..RHD..06S;LH162,172,RZH102,103..SG..(CBR,DSL,EFI) BLUISH GRAY,TRIM1#	03/2002 - 01/2005	1
71834-95J02B0	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 03/2002	1
71837D - COVER, REAR SEAT RECLINING, INNER RH
72708-95J00B0	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
71838B - COVER, REAR SEAT RECLINING, INNER LH
72709-95J00B0	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
71843A - COVER, REAR SEAT RECLINING, NO.2 RH
71843-95700B0	LH174,RZH102,115..10S;LH172,RZH113..RHD..06S..STD..(DSL,EFI);LH103,113,154,162,RZH103,155..06S,09S,11S,12S BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
71844A - COVER, REAR SEAT RECLINING, NO.2 LH
71844-95700B0	LH174,RZH102,115..10S;LH172,RZH113..RHD..06S..STD..(DSL,EFI);LH103,113,154,162,RZH103,155..06S,09S,11S,12S BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-26030	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	2
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-9570111	LH102,103,11#,172,176,184,RZH102,103,11#..SG..(GL,STD) BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72658-9570111	RZH112..5D;LH154,174,RZH115,155..11S,12S,15S;LH102,103,11#,162,172,176,184,RZH102,103,113,114..06S,09S,10S,15S BLUISH GRAY,TRIM1#	07/1999 - 12/2999	2
72665B - COVER, REAR SEAT BACK LOCK
72665-26010B0	LH102,103,112,113,172,RZH102,103,112,113..06S BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH
72730-95J08B1	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH
72740-95J12B1	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-26012B1	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79011-26022B0	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79011-26012B1	RZH113..RHD..06S;LH102,103,112,113,162,172,RZH102,103,112..06S..(CBR,DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
79011-26640B0	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC & SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-26052B1	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79013-26042B1	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79013-26042B1	LH103,112,113,162,172,RZH103,113..RHD..06S..(DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 09/2003	2
79013-26052B3	LH172..GL..DEFI;LH112,162,172,RZH103,113..RHD..06S..STD -,TRIM1#	07/1999 - 01/2005	1
79013-26600B0	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
79013-26042B1	LH112,162,172,RZH103,113..RHD..06S..(DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	09/2003 - 01/2005	1
79107A - LEG SUB-ASSY, NO.1 SEAT, REAR
79107-26090	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	1
79107-26110	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	1
79120A - CUSHION ASSY, NO.1 SEAT
79120-26231B6	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79120-26371B2	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79120-26710B1	LH103,113,162,172,RZH103,113..RHD..06S..STD..(DSL,EFI) NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
79120-26371B7	RZH113..RHD..06S;LH102,103,112,113,162,172,RZH102,103,112..06S..(CBR,DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
79135 - PAD, NO.1 SEAT CUSHION
79135-26011	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	1
79135-95J16	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	2
79140A - BACK ASSY, NO.1 SEAT
79140-26341B2	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79140-26201B6	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79140-26201B7	RZH113..06S..GEN;LH103,112,113,162,172,RZH103..RHD..06S..STD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2003	1
79140-26341B7	LH162,RZH103,112..5D..06S;LH112,172,RZH113..RHD..06S..STD..(DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
79140-26710B1	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC & SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	08/2000 - 08/2003	1
79160 - SPRING ASSY, NO.1 SEAT CUSHION
79160-26160	RZH112,113..5D..06S..CBR;LH102,103,112,113,162,172,RZH102,103,113..06S..GEN	07/1999 - 09/2003	2
79160-26160	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	1
79160-26180	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	1
79169 - ROD, REAR SEAT HINGE CONNECTOR
79169-95J05	LH172..4D..06S..STD..DSL	08/2000 - 01/2005	1
79175 - PAD, NO.1 SEAT BACK
79175-26110	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	1
79175D - PAD, NO.1 SEAT CUSHION, UNDER
79175-95J13	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	2
79180 - SPRING ASSY, NO.1 SEAT BACK
79103-26150	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	1
79103-26200	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	1
79189 - STOPPER, NO.1 SEAT LEG
71334-26050	LH102,103,112,113,162,172,RZH102,103,112,113..06S,08S	07/1999 - 08/2002	2
71334-26050	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00	RZH113..06S..CBR;LH10#,11#,125,166,172,176,184,RZH10#,112,114,115,125..06S,12S,14S,15S	08/1998 - 07/1999	2
79199-95J00	RZH112,113..5D..06S;RZH113,114..08S,15S;LH174,RZH102..SG..STD;LH10#,11#,125,16#,172,176,184,RZH103,104,105,115,125..(06S,10S,12S,14S,15S)..(GL,STD)	07/1999 - 12/2999	2
Common parts
90119-10229
90119-10315
90119-10412
90164-50020
90167-40044
90249-08106
90468-03018
90468-18071
90507-26009
90523-06017
91612-B1020
93530-44016
96160-00500

ILLUST NO. 7 OF 7(8908-9907)LH104,105,114,115,125,166,174,176,184,RZH104,105,114,115,125 ; (9907-

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

(8908-9907)LH102,103,112,113,172,RZH102,103,112,113..RHD..SG

Click highlighted areas on diagram

Part #	Description	Period	Qty
71617 - PROTECTOR, REAR SEAT BACK
71695-95J02B0	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71833-26020B0	RZH113..RHD..06S;LH162,172,RZH102,103..SG..(CBR,DSL,EFI) BLUISH GRAY,TRIM1#	03/2002 - 01/2005	1
71833-95J01B0	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 03/2002	1
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-26030B0	RZH113..RHD..06S;LH162,172,RZH102,103..SG..(CBR,DSL,EFI) BLUISH GRAY,TRIM1#	03/2002 - 01/2005	1
71834-95J02B0	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 03/2002	1
71837D - COVER, REAR SEAT RECLINING, INNER RH
72708-95J00B0	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
71838B - COVER, REAR SEAT RECLINING, INNER LH
72709-95J00B0	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
71843A - COVER, REAR SEAT RECLINING, NO.2 RH
71843-95700B0	LH174,RZH102,115..10S;LH172,RZH113..RHD..06S..STD..(DSL,EFI);LH103,113,154,162,RZH103,155..06S,09S,11S,12S BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
71844A - COVER, REAR SEAT RECLINING, NO.2 LH
71844-95700B0	LH174,RZH102,115..10S;LH172,RZH113..RHD..06S..STD..(DSL,EFI);LH103,113,154,162,RZH103,155..06S,09S,11S,12S BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
72613A - STRIKER, FRONT SEAT LOCK
72613-26060	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	2
72613A - STRIKER, FRONT SEAT LOCK
72613-26060	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	2
72613A - STRIKER, FRONT SEAT LOCK
72613-26060	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	2
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-26030	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	2
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-9570111	LH102,103,11#,172,176,184,RZH102,103,11#..SG..(GL,STD) BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72658-9570111	RZH112..5D;LH154,174,RZH115,155..11S,12S,15S;LH102,103,11#,162,172,176,184,RZH102,103,113,114..06S,09S,10S,15S BLUISH GRAY,TRIM1#	07/1999 - 12/2999	2
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-9570111	LH102,103,11#,172,176,184,RZH102,103,11#..SG..(GL,STD) BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72658-9570111	RZH112..5D;LH154,174,RZH115,155..11S,12S,15S;LH102,103,11#,162,172,176,184,RZH102,103,113,114..06S,09S,10S,15S BLUISH GRAY,TRIM1#	07/1999 - 12/2999	2
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-9570111	LH102,103,11#,172,176,184,RZH102,103,11#..SG..(GL,STD) BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72658-9570111	RZH112..5D;LH154,174,RZH115,155..11S,12S,15S;LH102,103,11#,162,172,176,184,RZH102,103,113,114..06S,09S,10S,15S BLUISH GRAY,TRIM1#	07/1999 - 12/2999	2
72665B - COVER, REAR SEAT BACK LOCK
72665-26010B0	LH102,103,112,113,172,RZH102,103,112,113..06S BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH
72730-95J08B1	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH
72740-95J12B1	LH172..4D..06S..STD..DSL BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-26012B1	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79011-26022B0	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79011-26012B1	RZH113..RHD..06S;LH102,103,112,113,162,172,RZH102,103,112..06S..(CBR,DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
79011-26640B0	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC & SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-26052B1	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79013-26042B1	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79013-26042B1	LH103,112,113,162,172,RZH103,113..RHD..06S..(DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 09/2003	2
79013-26052B3	LH172..GL..DEFI;LH112,162,172,RZH103,113..RHD..06S..STD -,TRIM1#	07/1999 - 01/2005	1
79013-26600B0	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#	08/2000 - 01/2005	1
79013-26042B1	LH112,162,172,RZH103,113..RHD..06S..(DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	09/2003 - 01/2005	1
79120A - CUSHION ASSY, NO.1 SEAT
79120-26231B6	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79120-26371B2	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79120-26710B1	LH103,113,162,172,RZH103,113..RHD..06S..STD..(DSL,EFI) NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
79120-26371B7	RZH113..RHD..06S;LH102,103,112,113,162,172,RZH102,103,112..06S..(CBR,DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
79135 - PAD, NO.1 SEAT CUSHION
79135-26011	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	1
79135-95J16	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	2
79140A - BACK ASSY, NO.1 SEAT
79140-26341B2	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79140-26201B6	LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79140-26201B7	RZH113..06S..GEN;LH103,112,113,162,172,RZH103..RHD..06S..STD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2003	1
79140-26341B7	LH162,RZH103,112..5D..06S;LH112,172,RZH113..RHD..06S..STD..(DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 01/2005	1
79140-26710B1	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC & SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#	08/2000 - 08/2003	1
79160 - SPRING ASSY, NO.1 SEAT CUSHION
79160-26160	RZH112,113..5D..06S..CBR;LH102,103,112,113,162,172,RZH102,103,113..06S..GEN	07/1999 - 09/2003	2
79160-26160	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	1
79160-26180	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	1
79169 - ROD, REAR SEAT HINGE CONNECTOR
79169-95J05	LH172..4D..06S..STD..DSL	08/2000 - 01/2005	1
79175 - PAD, NO.1 SEAT BACK
79175-26110	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	1
79175D - PAD, NO.1 SEAT CUSHION, UNDER
79175-95J13	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	2
79180 - SPRING ASSY, NO.1 SEAT BACK
79103-26150	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	1
79103-26200	LH172..4D..06S..STD..DSL NEW ZEALAND SPEC	08/2000 - 01/2005	1
79189 - STOPPER, NO.1 SEAT LEG
71334-26050	LH102,103,112,113,162,172,RZH102,103,112,113..06S,08S	07/1999 - 08/2002	2
71334-26050	LH102,103,112,113,172,RZH102,103,112,113..06S	08/1998 - 07/1999	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00	RZH113..06S..CBR;LH10#,11#,125,166,172,176,184,RZH10#,112,114,115,125..06S,12S,14S,15S	08/1998 - 07/1999	2
79199-95J00	RZH112,113..5D..06S;RZH113,114..08S,15S;LH174,RZH102..SG..STD;LH10#,11#,125,16#,172,176,184,RZH103,104,105,115,125..(06S,10S,12S,14S,15S)..(GL,STD)	07/1999 - 12/2999	2
Common parts
90119-10116
90119-10315
90119-10409
90119-10412
90119-11029
90164-50020
90167-40044
90168-40078
90202-08056
90249-08204
90387-08122
90468-03018
90468-18071
90507-26009
90523-06017
91611-61020
93315-16016
93530-44016
94541-00800

LH172R-RRMRS (1998)

(9808- )06S

(9907- )RHD..06S

ILLUST NO. 7 OF 7(8908-9907)LH104,105,114,115,125,166,174,176,184,RZH104,105,114,115,125 ; (9907-

(8908-9907)LH102,103,112,113,172,RZH102,103,112,113..RHD..SG

Part Price Details
